Summary of TE Connectivity AMP CT Series 292161-8 Vertical Connector

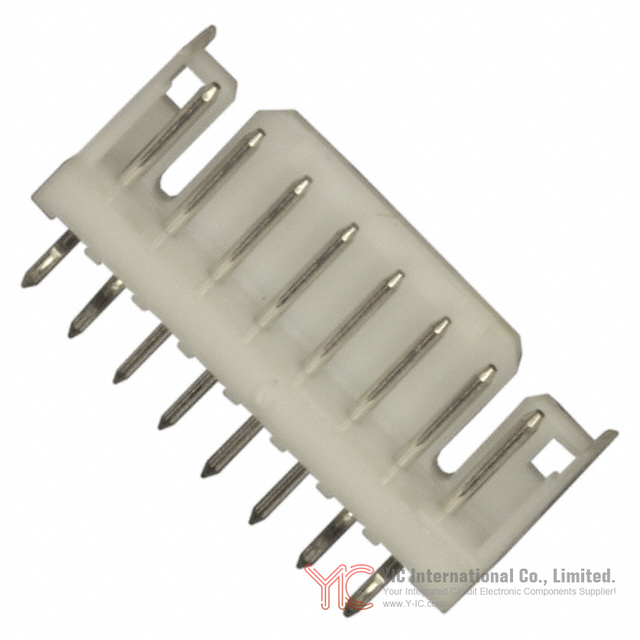

The TE Connectivity AMP CT Series 292161-8 is a through-hole vertical header designed for wire-to-board applications. With its 8-position configuration and a 2.00mm centerline pitch, this connector addresses the needs of PCB designs where compact and reliable connections are required. It is partially shrouded for enhanced mating alignment and mechanical stability, making it a preferred option for engineers developing applications in consumer electronics, industrial control, and small form-factor embedded systems. The AMP CT Series is recognized for its versatility within TE Connectivity’s range of rectangular connectors, giving users comprehensive options for wire-to-board interconnects.

Physical and Electrical Specifications of the AMP CT 292161-8 Connector

The 292161-8 AMP CT header features a single-row layout comprising eight positions with a precise 2.00mm (0.079") pitch. Its vertical mounting orientation suits designs where parallel, stacked board-to-wire connections are necessary. The through-hole solder termination ensures mechanical robustness, reliability in vibration-prone environments, and ease of manual or automated assembly. The connector’s partially shrouded housing improves insertion guidance, reducing risk of pin misalignment during mating, which is essential for high-density PCB layouts and supports error-free installation in production environments. Electrically, these headers are built to deliver consistent performance typical of TE Connectivity’s AMP CT family, supporting low-current signal and power transmission in compact PCBs.

Composition and Surface Finish Information for the AMP CT 292161-8 Connector

Material selection in connectors significantly influences performance and longevity. The 292161-8 AMP CT header utilizes high-grade tin (Sn) plating on the contact surfaces, providing a balance of corrosion resistance and solderability. This is critical in environments where reliable electrical contact is necessary, and prolonged exposure to ambient conditions could otherwise degrade performance. The body and insulator materials, consistent with the AMP CT series, offer durability and electrical isolation required for safe operation in dense circuit designs.

Installation and System Integration Instructions for the AMP CT 292161-8 Connector

The TE Connectivity AMP CT Series 292161-8 header is engineered for direct PCB through-hole mounting. Its vertical form factor is especially tailored for wire-to-board architecture, facilitating straightforward cable-to-PCB routing. For optimal results, engineers should ensure that the recommended pad layout and hole sizes specified by TE Connectivity are used, which aids both automated placement and manual soldering. In design phases, considering vertical stacking clearance, mating header orientation, and shroud engagement is crucial for reliable assembly and future serviceability. Integration is further streamlined by the header’s partially shrouded design, which protects the contacts and supports secure cable retention.

Compatible Components and System Integration for the AMP CT 292161-8 Connector

302161-8 AMP CT headers are designed for system interoperability within the AMP CT family. Suitable companion parts include specific CT cable assemblies, common termination housings, and matched wire-to-board contacts. Notable compatible components from TE Connectivity for the 292161-8 include the CT 8P 300mm cable assembly (part number 2405869-8), common termination housings (CAT-AM7017-H8172), and CT wire-to-board contacts (CAT-AM7017-C7671). When designing systems, engineers should validate compatibility among connectors, cable assemblies, and termination accessories to guarantee signal integrity and physical mating robustness, particularly in applications demanding vibration resistance or repeated cycling.

Regulatory Standards and Certifications Pertaining to the AMP CT 292161-8 Connector

For manufacturers and procurement teams, regulatory compliance is increasingly significant. The 292161-8 AMP CT header complies with major environmental directives, including EU RoHS (Restriction of Hazardous Substances) and EU ELV (End-of-Life Vehicles) requirements, ensuring lead, mercury, cadmium, and other hazardous materials are within permissible limits. The component is also supported by REACH documentation regarding substances of very high concern (SVHC), per the latest European Chemicals Agency guidance. This enables its use in globally deployed equipment and supports procurement policies mandated by OEMs and tier suppliers in regulated sectors. While individual components may not bear CE marking, their compliance guarantees seamless integration into CE-marked products.

Alternative or Substitute Options for the AMP CT 292161-8 Connector

In designing or refreshing a hardware system, engineers may seek alternate options due to supply, cost, or fitment changes. Within TE Connectivity’s extensive portfolio, several AMP CT series headers provide similar functionality to the 292161-8, such as alternate post header assemblies or vertical headers with comparable pitch and row configurations. Relevant models from the AMP CT range include the CT 2mm post header assembly with kink (CAT-3980408-PHDWKV) and other vertical post header assemblies (e.g., 1-171825-2 for vertical mounting). It is recommended that engineers compare pin configuration, mechanical dimensions, plating, and mating accessibility when considering substitutes, to ensure seamless design transition and system reliability.

Conclusion

The TE Connectivity AMP CT Series 292161-8 vertical header delivers a robust, compliant, and versatile wire-to-board solution for modern electronics hardware design. Its combination of precise mechanical design, reliable materials, and certified compliance standards make it suitable for a broad array of industrial and consumer applications. By ensuring proper selection of companion components and reviewing potential equivalents within the AMP CT series, engineers and procurement professionals can optimize both design flexibility and supply chain resilience. The 292161-8 stands as a reference point for quality and integration in the connector sector, supporting future-proofed and standards-compliant electronic assemblies.
