Overview of the STM32F427IIH7 Microcontroller from STMicroelectronics

The STM32F427IIH7 belongs to the STM32F4 series of high-performance microcontrollers from STMicroelectronics. Based on the ARM Cortex-M4 architecture and fabricated in a 176-UFBGA package (10x10 mm), the device targets advanced embedded applications requiring significant processing capacity, abundant peripheral integration, and robust connectivity. Operating at frequencies up to 180 MHz, the STM32F427IIH7 provides a 32-bit, single-core CPU engineered for demanding control, signal processing, and connectivity challenges.

With 2MB of embedded flash, up to 256KB + 4KB SRAM, extensive analog and digital interfaces, and various power management features, the STM32F427IIH7 is positioned as a core component for sophisticated systems across industrial automation, instrumentation, networked devices, and real-time data acquisition platforms.

Main Features and Architectural Insights of the STM32F427IIH7

At the core, the STM32F427IIH7 is built around the ARM Cortex-M4 processor with integrated Floating Point Unit (FPU). This enables efficient handling of both control code and digital signal processing algorithms—essential for applications such as motor control, audio, and real-time sensor fusion. The core achieves up to 225 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), equipped with an Adaptive Real-Time Accelerator (ART Accelerator™) for zero-wait execution from flash at the maximum clock.

Key architectural highlights include:

MPU (Memory Protection Unit) enhancing software security and task isolation.

Multi-AHB bus matrix enabling concurrent access between CPU, peripherals, and memory.

Extensive debugging support through SWD, JTAG, and Arm Trace Macrocell.

Embedded hardware accelerators such as DMA and CRC calculation units for offloading routine data handling tasks.

These architectural decisions serve the dual purpose of maximizing real-time responsiveness while simplifying complex application development.

Internal Memory and Memory Design of the STM32F427IIH7

A standout feature of the STM32F427IIH7 is its memory subsystem. The device incorporates two banks of 1MB flash memory (2MB total), supporting “Read While Write” operations—ideal for applications with high reliability or secure firmware upgrade requirements. Enhanced with an ART Accelerator™, code typically runs from flash at full speed.

Static memory resources are extensive:

Up to 256KB main SRAM, plus an additional 4KB dedicated area.

64KB of Core Coupled Memory (CCM) for time-critical real-time code or buffers.

512 bytes of One-Time Programmable (OTP) memory for provisioning secure keys or calibration constants.

The Flexible Memory Controller (FMC) supports external SRAM, PSRAM, SDRAM/LPSDR, and various types of parallel memories (NAND, NOR, CompactFlash), greatly expanding application flexibility.

Interfaces and Peripheral Support in the STM32F427IIH7

The STM32F427IIH7 is designed to interface with a broad spectrum of digital ecosystems. Key connectivity features include:

2 CAN 2.0B controllers, supporting robust networking in industrial and automotive environments.

10/100 Ethernet MAC with dedicated DMA, IEEE 1588v2 support for precise timestamping, and MII/RMII physical interfaces.

USB 2.0 FS (with embedded PHY) and HS/FS (with external ULPI PHY) device/host/OTG controllers, supporting a wide variety of USB topologies.

3 I2C ports with SMBus/PMBus compatibility, up to 4 USART/4 UART (LIN, IrDA, ISO7816), up to 6 SPIs (2 with advanced audio-class features), and a Serial Audio Interface.

The integrated SDIO interface streamlines direct SD/MMC/SDIO card usage. With up to 168 I/O ports (up to 166 being 5V tolerant), flexible multiplexing enables concurrent operation of multiple digital subsystems.

Enhanced Timers, Analog Capabilities, and Control Features of the STM32F427IIH7

The STM32F427IIH7 offers an expansive set of analog and timer/counter functions:

3 independent 12-bit ADCs with up to 24 input channels, capable of 2.4 MSPS per ADC or 7.2 MSPS in triple interleaved mode, enabling high-bandwidth sensor acquisition, power management, and signal monitoring.

2 independent 12-bit DACs for precise analog output or instrumentation control.

17 timers: 12 advanced (16-bit), 2 high-resolution (32-bit), plus basic timers and PWM input/output, permitting complex motor or power management algorithms.

Hardware CRC unit, true random number generator, and up to 20 communication interfaces.

On-chip temperature sensor and hardware support for camera interface (up to 54 MB/s parallel acquisition) facilitate sensor fusion and real-time image processing.

Power Efficiency and Low-Power Modes of the STM32F427IIH7

With supply voltage supported from 1.8V to 3.6V, the STM32F427IIH7 delivers flexible power options. Dedicated low-power modes (Sleep, Stop, Standby) allow dynamic tradeoff between performance and power conservation, essential for battery-operated or energy-critical designs.

Other key features:

Battery backup domain (VBAT) supplies a real-time clock and up to 20 backup registers, with optional 4 KB backup SRAM for critical state retention.

Flexible clocking (up to 180 MHz system, with 4-26 MHz crystals), internal RC oscillators (16 MHz, 32 kHz), and PLL blocks for precise frequency management.

Brown-out, power-on, and voltage detectors safeguard system integrity during supply transitions.

Development Tools, Debug Options, and System Integration for the STM32F427IIH7

For developers, the STM32F427IIH7 includes full support for both SWD and JTAG debug access, along with embedded trace and serial wire viewer for sophisticated code profiling and error tracing.

The device implements multiple boot modes (Flash, RAM, system memory), supporting field updates and various secure boot implementations. Its multi-AHB bus matrix ensures deterministic bandwidth for real-time peripherals, especially when integrating DMA-driven peripherals or high-speed external memories.

System-on-chip integration reduces external component count, with robust ESD, EMI, and thermal characteristics aligning with industrial-grade requirements.

Package Specifications, Environmental Conditions, and Reliability for the STM32F427IIH7

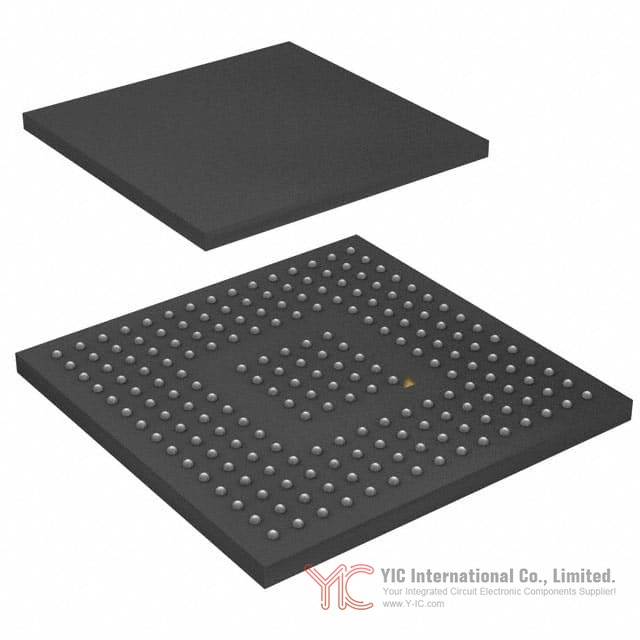

The STM32F427IIH7 is delivered in a compact 176-lead UFBGA package (10x10 mm), supporting high-density PCB designs. The package is RoHS 3 compliant, REACH unaffected, and rated Moisture Sensitivity Level (MSL) 3 for standard SMT assembly.

The device operates over a -40°C to +105°C temperature range, supporting extended ambient conditions found in industrial and automotive electronics. ECCN and HTSUS codes are available for export and compliance tracking.

Alternative or Equivalent Microcontrollers to the STM32F427IIH7

When considering alternatives to the STM32F427IIH7, engineers may evaluate the following among the STM32 family:

STM32F427VG/ZG/IG/AG and STM32F427VI/ZI/AI: Differ in package size, pin count, and embedded Flash, but largely compatible in peripherals and architecture.

STM32F429 series (e.g., STM32F429VG/ZG/IG/NG/AG/VI/ZI): These add advanced features such as LCD-TFT controllers and Chrom-ART graphic accelerators, while maintaining compatibility at the CPU, memory, and peripheral interface level.

The STM32F429xx models can be leveraged for migration in display-driven or HMI applications requiring enhanced graphic performance.

Selection between these alternatives depends on essential system requirements, pinout, and peripheral needs. Direct compatibility within the STM32F4 family ensures software reuse and minimum redesign for future upgrades.

Conclusion

: Selecting the STM32F427IIH7 for demanding embedded applications

The STM32F427IIH7 from STMicroelectronics is a high-performance 32-bit MCU that brings a blend of substantial on-chip resources, advanced digital and analog peripherals, and robust connectivity. Its flexible memory architecture, extensive power management, and strong development support make it a compelling platform for embedded system engineers facing the toughest real-time and integration challenges.

Thanks to close compatibility with the STM32F4 family, engineers can scale features and performance as projects evolve without extensive ecosystem changes. The device’s combination of computing power, interfaces, and reliability positions it as a reference choice in the modern embedded landscape.
