STMicroelectronics STM32F427IGH6

Introduction to the STM32F427IGH6 Microcontroller

The STM32F427IGH6, developed by STMicroelectronics, is part of the STM32F4 advanced performance microcontroller series. This device is based on the ARM Cortex-M4 core, featuring an integrated floating-point unit, and operates at frequencies up to 180 MHz. STM32F427IGH6 provides a performance-efficient solution for high-reliability, compute-intensive embedded applications, and is equipped with a sizable 1MB onboard flash and 256KB of SRAM. Its compact 176-ball UFBGA (10x10 mm) package offers dense I/O integration, making it suitable for modern, space-constrained embedded designs.

Main Specifications of the STM32F427IGH6

STM32F427IGH6’s primary advantages revolve around its performance, memory, integration, and robust feature set:

Core: ARM Cortex-M4 32-bit processor with floating-point unit, adaptive ART accelerator for zero-wait-state flash access, reaching up to 225 DMIPS.

Memory: 1MB of embedded flash and 256KB of SRAM, including 64KB of core-coupled memory, with support for read-while-write operations.

Timers: Up to 17 timers, including advanced control and general-purpose variants, enable precise event management for real-time applications.

Data Conversion: Three 12-bit ADCs with up to 24 channels and two 12-bit DACs facilitate analog interfacing.

Communication: Multiple serial interfaces (CAN, LIN, Ethernet, I2C, SPI, UART, USB OTG) cover most contemporary industrial and connectivity requirements.

Security and Reliability: Built-in cyclic redundancy check (CRC), 96-bit unique hardware ID, true random number generator, and memory protection unit (MPU).

Temperature Range: Industrial -40°C to +85°C for operation in demanding environments.

Overview of STM32F427IGH6 Functional Blocks

At its core, the STM32F427IGH6 integrates processing, memory, and peripheral resources in a flexible bus matrix, optimizing data throughput. Key functional blocks include:

Adaptive Real-Time (ART) memory accelerator, enhancing code execution efficiency from embedded flash.

Multi-AHB bus matrix for efficient peripheral and memory accesses.

Direct Memory Access (DMA) controller with 16-stream burst support lowers CPU loading.

Debug and trace interfaces are available via SWD and JTAG, with an embedded trace macrocell for extensive real-time debugging options.

STM32F427IGH6 Interface Options and Peripheral Support

The MCU is well-equipped for advanced interfacing:

Communication: Up to 21 interfaces, including 6 SPIs (with audio-class accuracy using internal PLL or external clocks), 4 USARTs/UARTs, 3 I2Cs, 2 CAN 2.0B, SDIO, and advanced USB Host/OTG, supporting both Fulland High-Speed standards.

Ethernet: Integrated 10/100 MAC with dedicated DMA supports IEEE 1588v2 hardware assist (MII/RMII) for networked applications.

LCD and Camera: Parallel camera interface (8–14 bit, up to 54 MBps) and a flexible FMC (Flexible Memory Controller) for external memory expansion; note that the advanced LCD-TFT controller is reserved for STM32F429xx, not present in this device.

Timers: Advanced timers (TIM1, TIM8) enable sophisticated PWM and motor control; general-purpose timers and basic timers (TIM6/7) support a range of timing and counting functions.

Analog: Three high-speed 12-bit ADCs (2.4 MSPS, up to 7.2 MSPS in interleaved mode) and two 12-bit DACs for precise analog output.

STM32F427IGH6 Memory Structure

Memory resources are structured for parallel performance and rapid access:

1MB embedded flash, divided into two banks to support concurrent read/write.

256KB total SRAM, including up to 64KB core-coupled and up to 4KB backup SRAM with battery supply support.

Embedded OTP (One-Time Programmable) memory for critical calibration or device ID storage.

External memory controller supports expansion using SRAM, PSRAM, NOR/NAND flash, and SDRAM/LPSDR SDRAM.

STM32F427IGH6 Power Consumption and Low Power Features

To optimize power efficiency:

Operating voltage range: 1.8V to 3.6V on main supply and I/O domains.

Integrated power-on/power-down and brownout detection circuitry.

Multiple low-power modes, including Sleep, Stop, and Standby, with ultra-fast wakeup and backup battery domain (VBAT) for RTC and retention during power loss.

Programmable voltage regulator and robust supply supervision for safety in industrial environments.

STM32F427IGH6 Packaging, Pin Configuration, and Installation Details

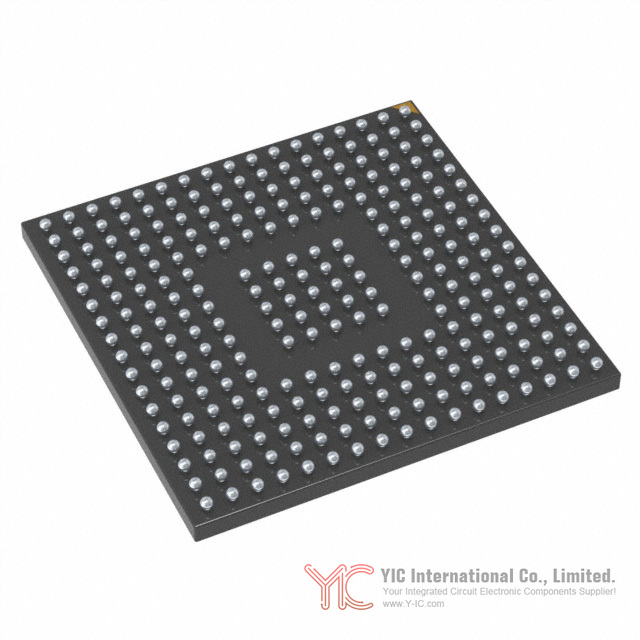

Package: 176-ball UFBGA (10x10 mm) with 0.8 mm ball pitch.

Pin Count: Up to 168 I/Os, with 166 being 5V tolerant, allowing direct interface with external 5V logic.

High-density pinout supports a wide array of functions with flexible alternate mapping.

Designed for surface-mount reflow processes, with moisture sensitivity level MSL 3 (168h floor life).

STM32F427IGH6 Electrical Specifications and Environmental Requirements

Absolute Maximum Ratings: Input voltages up to specified limits and ESD ratings conform to industrial standards.

Power Consumption: Optimized for both run-time and sleep modes, with detailed parameters available for system energy estimation.

Clocking: 4–26 MHz external crystals supported, with factory-trimmed internal RC oscillators and multiple PLLs for flexible clock trees.

Full compliance with industrial operation temperature (-40°C to +85°C); refer to the datasheet for complete characterization.

STM32F427IGH6 Compliance Certifications and Eco-Friendly Standards

RoHS 3 compliant for hazardous substances.

REACH unaffected; device is environmentally safe for global market utilization.

ECOPACK2 packaging ensures adherence to environmental sustainability standards.

Moisture Sensitivity Level 3 (168 hours floor life) for reflow soldering and inventory considerations.

Comparable and Substitute Models for STM32F427IGH6

Engineers evaluating STM32F427IGH6 should consider related STM32F4 series models for pin and peripheral compatibility, as well as functional up/down-scaling:

STM32F427VG/ZI/VI: Same family, different flash and package options.

STM32F429IG/XX: Offers enhanced features such as integrated LCD-TFT controller and higher flash (up to 2MB).

STM32F407xx series: Pin and peripheral-compatible with a lower performance/core frequency, ideal for cost-optimized solutions.

When selecting replacements, ensure compatibility with existing board layout, required interface support, and operational temperature/power targets.

Conclusion

The STM32F427IGH6 from STMicroelectronics sets a benchmark in high-performance embedded microcontrollers with its ARM Cortex-M4 core, extensive set of peripherals, industrial robustness, and power management features. Its comprehensive memory architecture, flexible connectivity, and reliable environmental compliance position it as a compelling choice for industrial automation, advanced control systems, or any application requiring real-time processing and robust interfacing. Selection engineers and procurement professionals can trust STM32F427IGH6 for applications demanding longevity, scalability, and leading-edge embedded processing capabilities.
