STMicroelectronics EMIF06-HSD03F3

Introduction to the EMIF06-HSD03F3 from STMicroelectronics

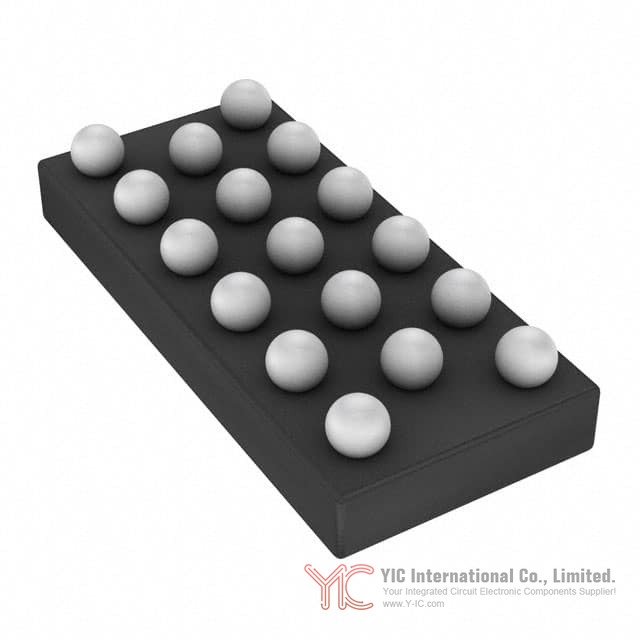

The EMIF06-HSD03F3 from STMicroelectronics is a compact, highly-integrated EMI/RFI filter array with embedded ESD protection, tailored for safeguarding high-speed microSD card interfaces. Utilizing advanced silicon technology, this device brings together a 6-line third-order low-pass RLC filter (L = 1nH, C = 2.5pF per line) and robust ESD diodes within a 17-bump Wafer Level Chip Scale Package (WLCSP) with a 0.4 mm pitch. The combination ensures space-saving, streamlined PCB routing, and critical protection for sensitive ICs—key requirements in modern mobile and portable devices demanding efficient high-frequency signal integrity.

Major attributes and engineering advantages of the EMIF06-HSD03F3

The EMIF06-HSD03F3 stands out for its blend of electrical performance and PCB footprint optimization. Each of its six channels integrates dedicated ESD protection on every signal line, reducing the component count for SD memory card designs. Its ultra-low intrinsic line capacitance (2.5pF) is engineered to maintain high data speeds, compensating for longer PCB traces without degrading signal quality for SD3.0 and UHS-1 SDR104 (208 MHz) standards. Matching impedance across channels is a notable achievement due to proprietary fabrication, minimizing skews and ensuring signal symmetry—vital for error-free data transfer. The package size (1.1 mm x 2.4 mm) and flow-through pinout facilitate direct, low-inductance connections, further enhancing ease of routing and reducing layout complexity for dense electronics assemblies.

EMI mitigation and ESD safeguarding capabilities of the EMIF06-HSD03F3

For engineers tackling EMC in compact designs, the EMIF06-HSD03F3 delivers proven electromagnetic interference filtering together with system-level ESD resilience. It surpasses IEC 61000-4-2 Level 4, capable of withstanding electrostatic discharges of ±18 kV (both air and contact) directly at the device level, safeguarding system circuits from transient events common in consumer, industrial, and automotive environments. Low clamping voltages and fast response ensure downstream components are efficiently protected from voltage surges. Its circuit configuration achieves effective attenuation of unwanted high-frequency noise while preserving high-speed data integrity, with empirical data demonstrating minimal cross-talk and excellent common-mode rejection up to the operating bandwidth of typical SD interfaces.

Electrical and structural specifications of the EMIF06-HSD03F3

The EMIF06-HSD03F3 offers absolute maximum and recommended electrical performances for safe, reliable integration. The array’s 1nH inductors and 2.5pF capacitors per channel are tuned for high-frequency applications, and leakage current (IRM) is contained below 20 nA to avoid load-induced parasitics. The chip’s flip-chip CSP format, with 0.4 mm pitch and mechanically robust epoxy, is UL94 V0 rated for flammability. Solder bump sizes and recommended pad diameters ensure consistent and reliable surface-mount assembly, while tape and reel packaging supports automated pick-and-place for high-volume manufacturing environments.

Usage examples and integration tips for the EMIF06-HSD03F3

The targeted use cases for the EMIF06-HSD03F3 include microSD and Secure Digital memory interfaces in mobile phones, digital cameras, navigation systems, security cameras, and portable consumer electronics that require robust, compact, high-speed filtering and ESD protection. The device’s pinout allows direct flow-through routing from host controller to SD socket, minimizing stubs and impedance discontinuities—an essential consideration for UHS and SDR104 interfaces at 208 MHz. System designers benefit from the unified protection strategy, especially for applications where board real estate is limited and long signal traces are unavoidable.

PCB design and assembly guidelines for the EMIF06-HSD03F3

Optimal EMI and ESD performance with the EMIF06-HSD03F3 is closely tied to PCB layout best practices. It is recommended to closely couple all GND bumps using multiple vias to minimize ground path inductance and further improve filtering efficacy and ESD robustness. Traces should be kept as short and direct as possible, and matching the recommended copper pad (220 µm diameter) and solder mask openings (minimum 300 µm) is important for solder joint quality. The device is compatible with standard lead-free reflow soldering profiles per IPC/JEDEC J-STD-020; minimizing convection during reflow prevents component movement and ensures optimal assembly alignment.

Environmental considerations and regulatory compliance for the EMIF06-HSD03F3

The EMIF06-HSD03F3 fulfills RoHS requirements as an ECOPACK2-grade, lead-free component, supporting both environmental compliance and corporate sustainability initiatives. Its moisture sensitivity level (MSL 1) offers unlimited floor life at ≤30°C/85% RH, simplifying storage and handling logistics for procurement teams. Safety standards compliance includes UL94 V0 flame retardancy for the encapsulant. The device can be readily specified for global applications without export restriction complications (ECCN: EAR99, HTSUS: 8548.00.0000).

Alternative or substitute models for the EMIF06-HSD03F3

When considering alternatives to the EMIF06-HSD03F3, engineers should assess parameters such as channel count, line capacitance, ESD protection level, package size, and pin compatibility. While several vendors produce low-capacitance, multi-line EMI filter arrays with ESD protection, direct replacement may require careful layout review due to variance in pinout, footprint, or device performance. Careful analysis of equivalent product data sheets and, where possible, evaluation of engineering samples is advised before implementation. Cross-referencing with other STMicroelectronics EMI/ESD protection arrays may also reveal alternate solutions for design variants or supply chain continuity.

Conclusion

: EMIF06-HSD03F3 suitability for high-speed, space-constrained applications

The EMIF06-HSD03F3 from STMicroelectronics is purpose-built for enabling robust, high-performance SD/microSD interfaces within the tight spatial and signal integrity constraints typical in mobile, imaging, and security devices. Its integration of six channels of EMI filtering alongside state-of-the-art ESD protection streamlines the BOM and PCB layout, while ensuring system reliability against field-transient hazards. For engineers and procurement professionals targeting SD3.0 or UHS-1 designs that demand small form factors, regulatory compliance, and proven filtering/ESD performance, the EMIF06-HSD03F3 warrants serious consideration as a primary or reference design solution.
