STMicroelectronics EMIF08-LCD04M16

Introduction to the EMIF08-LCD04M16 by STMicroelectronics

The EMIF08-LCD04M16 from STMicroelectronics is a highly integrated eight-channel LC (Pi) electromagnetic interference (EMI) filter, engineered to address EMI and radio frequency interference (RFI) challenges in compact applications. Presented in a space-saving micro QFN package, this third-order low-pass filter combines robust noise attenuation with high-efficiency electrostatic discharge (ESD) protection. Each channel incorporates a 12 nH inductor and 18 pF capacitor network, providing reliable signal integrity in high-density PCB designs.

Primary attributes of the EMIF08-LCD04M16

Central to the EMIF08-LCD04M16’s appeal are its technical features, specifically tailored for advanced system integration. With a cutoff frequency ($F_C$) of 400 MHz at -6 dB, the device achieves superior EMI rejection, offering attenuation better than -35 dB across the 900 MHz to 2 GHz spectrum. Its monolithic construction reduces parasitic elements and ensures high reliability, while the exposed pad micro QFN package (3.3 x 1.35 mm footprint, max thickness 0.55 mm) allows minimal PCB space consumption. In addition, the device provides ESD protection up to ±15 kV (air discharge) and ±8 kV (contact discharge), meeting the stringent IEC 61000-4-2 level 4 standard. The EMIF08-LCD04M16 is further classified with Moisture Sensitivity Level 1 (unlimited), allowing for versatile handling in manufacturing environments.

Compliance with industry standards for the EMIF08-LCD04M16

Compliance is a key consideration for deployment in regulated sectors. The EMIF08-LCD04M16 is certified to IEC 61000-4-2 (level 4) for ESD protection on external pins, signifying energy resilience against high-voltage surges commonly encountered in field environments. The device adheres to STMicroelectronics’ ECOPACK2 standards for environmentally responsible packaging, contributing to sustainable manufacturing practices.

Common uses and applications for the EMIF08-LCD04M16

The versatility of EMIF08-LCD04M16 comes to the fore in applications requiring simultaneous EMI filtering and ESD immunity, such as mobile point-of-sale (POS) systems, human-machine interfaces (HMI), including reference designs like STEVAL-PLC001V1, and home automation controls. In each case, the device’s multi-line design simplifies PCB routing and maximizes signal fidelity for complex interactive electronics that must operate reliably in electronically noisy environments.

Electrical specifications of the EMIF08-LCD04M16

The EMIF08-LCD04M16 delivers stable electrical performance, as reflected in detailed attenuation (S21) and cross talk measurements. Attenuation curves illustrate effective suppression of high-frequency noise, and specialized analog cross talk metrics help engineers anticipate interaction effects between PCB tracks. The filter’s response to ESD events—tested at +15 kV and -15 kV—shows rapid recovery and minimal leakage, ensuring signal continuity. Line capacitance stability is maintained across varying operating voltages, which is critical for boards operating across different logic standards and supply domains. Absolute maximum and recommended operating conditions (e.g., ambient temperature, applied voltages) are detailed in the product documentation, informing safe application constraints.

Packaging information and environmental standards met by the EMIF08-LCD04M16

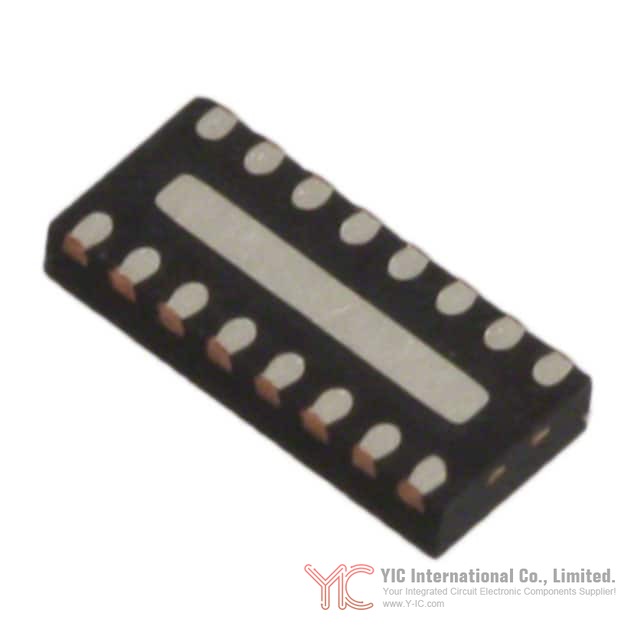

The mechanical resilience and environmental suitability of the EMIF08-LCD04M16’s micro QFN-16L (3.5x1.35 mm) package are anchored in its lead-free construction and compliance with UL94 V0-rated epoxy—ideal for industrial and consumer-grade electronics. Product marking conventions support manufacturing traceability, while the package’s low profile aids integration in hand-held or embedded systems. ECOPACK2 compliance assures that component selection aligns with the latest environmental standards.

PCB mounting recommendations for the EMIF08-LCD04M16

Integrating the EMIF08-LCD04M16 into high-density PCBs requires attention to recommended assembly procedures. “No clean” solder paste with ROL0 halide-free flux per ANSI/J-STD-004 is preferred, with fine powder particle size (20–45 μm) offering optimal tack for high-speed placement. Automated optical placement techniques and lead recognition are emphasized over manual processes, and controlled placement forces (3.5 N) prevent defects in solder joints. Closed vias and a balanced track layout mitigate solder flow anomalies, promoting assembly yield and signal integrity. Reflow soldering profiles are available, with recommendations to limit convection currents, supporting process reliability for both rigid and flexible PCB substrates.

Alternative and substitute options for the EMIF08-LCD04M16

For engineers evaluating device alternatives, consideration of equivalent models is essential when facing allocation constraints or seeking design redundancy. Popular equivalents may include other STMicroelectronics products featuring multi-line Pi filters with comparable cutoff frequencies and ESD ratings. Alternative options from other vendors can be found within the same package size and with similar LC values, provided they meet relevant EMI attenuation and ESD protection standards. When selecting replacements, care must be taken to match not only the electrical specifications but also package compatibility and assembly guidelines to ensure seamless redesign and certification compliance.

Conclusion

The STMicroelectronics EMIF08-LCD04M16 exemplifies advanced EMI and ESD management in high-density, multi-channel electronic designs. Its integrated eight-line LC Pi filter and robust ESD protection, paired with an ultra-compact package and comprehensive environmental compliance, make it an optimal choice for engineers and procurement professionals seeking reliable signal integrity solutions. From mobile and HMI systems to broader industrial applications, the EMIF08-LCD04M16 addresses real-world PCB layout, assembly, and regulatory requirements, facilitating streamlined design decisions and dependable operational performance.
