Murata Electronics GRM155R72A152KA01D

Introduction to the GRM155R72A152KA01D Ceramic Capacitor from Murata Electronics

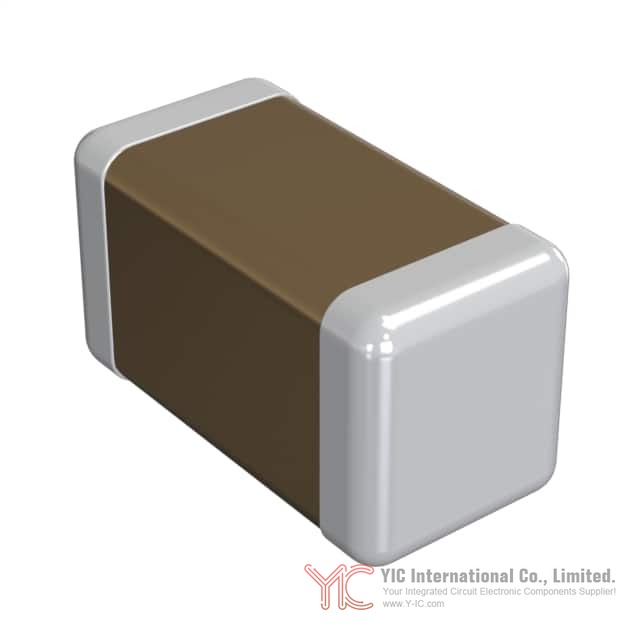

The GRM155R72A152KA01D from Murata Electronics is a chip monolithic ceramic capacitor designed for general-purpose electronic equipment. With a compact 0402 (1005 metric) package format, it offers a space-efficient solution for high-density PCB layouts. The device targets both design engineers and procurement professionals seeking reliable, high-capacity ceramic capacitors, and is ideally suited for broad applications ranging from consumer electronics to industrial control systems.

Main Technical Data of the GRM155R72A152KA01D Ceramic Capacitor by Murata Electronics

This Murata Electronics model features a nominal capacitance of 1500 pF with a ±10% tolerance, supporting a maximum rated voltage of 100V DC. Its Class II X7R dielectric ensures stable performance across temperature variations, making it suitable for timing, filtering, and coupling/decoupling circuits. The package dimensions support automated assembly, while the capacitance and voltage ratings can accommodate both analog and digital circuitry operating within moderate voltage ranges.

Environmental Standards and Durability Aspects of the GRM155R72A152KA01D Ceramic Capacitor

GRM155R72A152KA01D is RoHS3 compliant and unaffected by REACH regulations, supporting its use in environmentally conscious designs. The Moisture Sensitivity Level (MSL) is rated at 1 (unlimited), confirming robustness during storage and reflow assembly. For export control, it holds an ECCN of EAR99 and complies with international HTS classifications. Reliability is further guaranteed through stringent testing—covering substrate bending, vibration, soldering heat, and thermal cycling—ensuring durability in automated manufacturing and real-world operational environments.

Electrical Properties and Circuit Interaction of the GRM155R72A152KA01D Murata Ceramic Capacitor

Engineers should note the capacitor’s temperature-dependent behavior, particularly relevant for precision circuits. The X7R dielectric maintains capacitance across the -55°C to +125°C range, but variations inherent to high dielectric constant ceramics can affect timing and frequency response in sensitive analog applications. Voltage-dependent capacitance and aging must also be considered; the device's capacitance may decrease over long periods or with high DC and AC voltages. These traits underscore the importance of validating circuit stability through in-system checks, especially where tight tolerance requirements exist.

Recommendations for Mounting, Soldering, and PCB Layout for the GRM155R72A152KA01D Murata Capacitor

Optimized performance of the GRM155R72A152KA01D depends on precise board layout and careful soldering practices. For mounting, orientation should minimize mechanical stress from board flexing and separation operations. Recommended land patterns and adhesive specifications help avoid excessive solder fillet height and ensure secure fixation during automated pick-and-place routines. Both reflow and flow soldering processes must adhere to specified temperature profiles and ramp rates to prevent internal cracking or termination leaching. For post-assembly cleaning, ultrasonic energy must be moderated to prevent unseen damage, and solvent selection should be validated against capacitor electrical integrity.

Handling, Storage, and Operational Precautions for GRM155R72A01D Murata Electronics Ceramic Capacitor

To preserve solderability and device reliability, GRM155R72A152KA01D should be stored at 5°C–40°C with 20%–70% relative humidity, shielded from sunlight and corrosive atmospheres. Extended storage beyond six months requires solderability revalidation. During handling, measures must be taken to avoid mechanical shock, board bending, or exposure to harmful environments such as moisture, acids, alkalis, or toxic gases. On the operational side, direct contact, exposure to conductive liquids, and application in unsuitable environments should be strictly avoided. Fail-safe circuit design is advised in scenarios where device failure may induce hazardous conditions.

Guidelines for Safe Handling, Storage, and Use of the GRM155R72A152KA01D Murata Ceramic Capacitor

-

Alternative or Compatible Replacements for the GRM155R72A152KA01D Murata Capacitor

For engineers seeking alternatives, Murata Electronics offers multiple products in the GRM series matching similar capacitance, voltage, and dielectric characteristics. When replacing GRM155R72A152KA01D, equivalent models must match the 0402 form factor, X7R dielectric, 1500 pF capacitance, and 100V rating. It is essential to verify not only electrical but also environmental and mechanical specifications for cross-compatibility in legacy and new designs. Alternate part numbers within the GRM family and comparable products from other major multilayer ceramic capacitor vendors may be considered after thorough technical evaluation.

Conclusion

: Strategic Use of GRM155R72A152KA01D Murata Electronics Ceramic Capacitor for Modern Electronic Applications

The GRM155R72A152KA01D capacitor from Murata Electronics stands out as a reliable choice for compact, high-density PCB applications requiring stable capacitance and robust environmental compliance. Successful product integration hinges on informed application of performance nuances, adherence to precise mounting and handling protocols, and consideration of long-term reliability amidst varied operational environments. Careful cross-referencing with potential equivalent models ensures seamless platform transitions. By applying these technical insights, engineers and procurement managers can maximize the value and durability of this vital passive component in their projects.
