Microchip Technology KSZ8081MNXCA

KSZ8081MNXCA Series Introduction from Microchip Technology

The KSZ8081MNXCA is a high-performance single-chip 10BASE-T/100BASE-TX Ethernet physical layer transceiver (PHY) from the KSZ8081 family, produced by Microchip Technology. Designed for seamless integration into cost-sensitive and high-volume embedded applications, this solution provides IEEE 802.3-compliant Ethernet connectivity in a compact 32-QFN (5x5 mm) package. The device serves as a bridge between the physical Ethernet signal on standard CAT-5 cables and the Media Independent Interface (MII), supporting direct communication with Ethernet MAC processors and switches.

Engineered for streamlined board layout and reduced system costs, the KSZ8081MNXCA integrates on-chip termination resistors, onboard voltage regulation, and comprehensive configuration options. Its support for a wide operating voltage (1.8V, 2.5V, 3.3V) enhances adaptability to varying system requirements in consumer, industrial, and communication electronics.

Primary Technical Specifications of KSZ8081MNXCA

The KSZ8081MNXCA incorporates numerous advanced features focused on performance, reliability, and ease of integration:

Full-duplex operation enabling simultaneous send and receive functions for increased throughput.

IEEE 802.3 compliance, supporting both 10 Mbps and 100 Mbps Ethernet standards.

Integrated MII interface for direct connection to Ethernet MACs; the KSZ8081RNB variant offers RMII support for alternative host requirements.

Programmable LEDs for status indication, covering link, activity, and speed to facilitate network diagnostics at a glance.

On-chip 1.2V voltage regulator, reducing the need for external supply regulation for the core.

On-chip termination resistors, minimizing external BOM and layout complexity.

Support for MDC/MDIO management interface, allowing precise control and configuration of PHY registers.

Advanced cable diagnostics (LinkMD TDR-based), power-down, and energy-saving modes to enhance network reliability and reduce system energy consumption.

HP Auto MDI/MDI-X for flexible cable connection handling (straight-through or crossover), with selectable enable/disable feature.

Robust ESD protection with a rating of 6 kV HBM, providing resilience in harsh environments.

Parametric NAND Tree support for board-level fault detection during manufacturing test or in-system diagnostics.

KSZ8081MNXCA Pinout and Signal Descriptions

The 32-QFN package of the KSZ8081MNXCA integrates a carefully organized set of pins to maximize connectivity and ease of PCB design:

Power supply pins accommodate core and I/O voltages, supporting 1.8V, 2.5V, and 3.3V operational ranges.

Differential pairs (TXP/TXM, RXP/RXM) interface directly with magnetics and RJ-45 connectors for Ethernet cabling.

Crystal oscillator interface pins (XO, XI) enable flexible clocking using a 25 MHz crystal; the device also supports external clock input.

Extensive MII interface pins provide all transmit and receive signal paths—accommodating both the send (TXD[3:0], TXEN, TXC) and receive (RXD[3:0], RXDV, RXC, RXER) functions.

Configurable strap options enable hardware-based selection of PHY address, speed, duplex mode, auto-negotiation, and LED signaling functions.

Management and diagnostic pins support MDC/MDIO interface, programmable interrupt output, and factory test (NAND Tree).

KSZ8081MNXCA Use Cases within Network Applications

The KSZ8081MNXCA’s compact form factor and advanced feature set make it a preferred PHY solution in a broad range of applications where reliable and cost-effective Ethernet connectivity is required. Notable deployment scenarios include game consoles, IP phones, set-top boxes, IP TVs, low-cost office/home networking solutions (LOM), and printers. Its single-chip implementation is also ideal for embedded computing and industrial Ethernet nodes, where board space, reliability, and BOM efficiency are critical.

System designers benefit from its flexibility, such as selectable I/O voltage support and built-in signal terminations, which aid in simplifying multi-platform hardware design and speeding time-to-market.

Troubleshooting and Administration Features of KSZ8081MNXCA

Central to the KSZ8081MNXCA’s value is its comprehensive diagnostic toolkit and management interface support. With LinkMD TDR-based cable diagnostics, engineers can actively detect and localize faults in copper cabling, streamlining production test and deployment troubleshooting. The MDC/MDIO management bus allows both low-level configuration and status monitoring from host controllers. Parametric NAND Tree testing further extends diagnostic coverage to board-level interconnects, aiding in early manufacturing detection of assembly faults.

Additional features such as programmable interrupt output, hardware loopback modes, and led status outputs enable system monitoring, test automation, and UI integration.

Electrical Properties and Performance Metrics of KSZ8081MNXCA

The KSZ8081MNXCA is characterized by superior electrical performance, ensuring compatibility and robustness across a span of application environments:

Wide I/O voltage support (1.8V, 2.5V, 3.3V) meets modern processor and SOC requirements.

Single 3.3V supply operation with an on-chip 1.2V regulator.

Extended temperature range suitable for industrial deployment.

Power-saving and power-down modes help reduce total system consumption when Ethernet links are idle or not required.

High immunity to ESD strikes and EMI, thanks to robust internal protections and design practices.

Packaging Information and System Integration for KSZ8081MNXCA

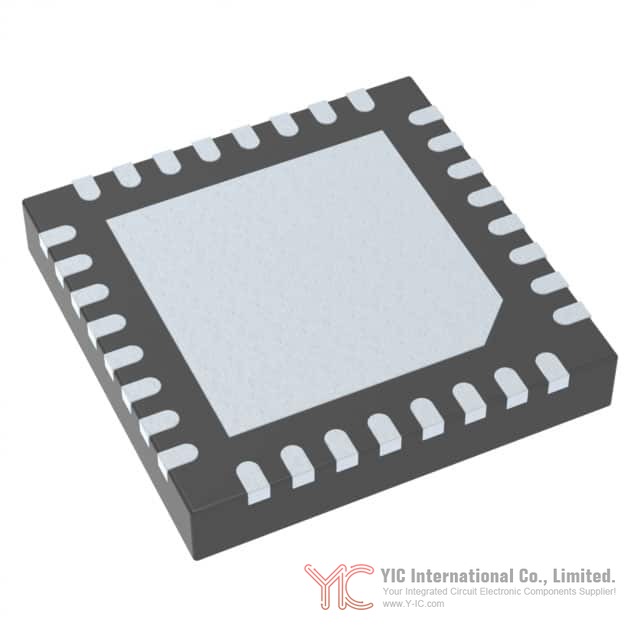

The device is available in a space-efficient 32-QFN (5x5 mm) package with an exposed pad to aid thermal management. The footprint and pinout are optimized for high-speed signal integrity, straightforward PCB layout, and cost-effective assembly in mass production.

System integrators should ensure proper decoupling on supply pins, correct strapping of configuration pins at reset, and a low-inductance connection to board ground via the exposed paddle for optimal thermal and electrical performance.

Alternative and Replacement Options for KSZ8081MNXCA

In situations requiring functionally similar or drop-in alternative Ethernet PHY solutions, engineers may consider other models in the KSZ8081 series, such as the KSZ8081RNB, which provides RMII interface support. For enhanced feature sets, higher integration level, or application-specific needs, alternative PHY products from Microchip or other reputable Ethernet PHY vendors can be evaluated—taking into account pinout, voltage compatibility, protocol support, and qualification standards for the target application.

Conclusion

The KSZ8081MNXCA from Microchip Technology delivers a robust, production-ready solution for 10BASE-T/100BASE-TX Ethernet physical layer interfacing, balancing technical sophistication with cost-effectiveness and integration ease. Its optimized feature set, extensive diagnostic and management options, and adaptable electrical characteristics suit a wide range of embedded and industrial networking scenarios, positioning it as a preferred choice for engineers seeking reliable and flexible Ethernet PHYs for their next-generation designs.
