Texas Instruments TPS6591104EA2ZRC

Product Summary TPS6591104EA2ZRC Power Management System

The TPS6591104EA2ZRC from Texas Instruments represents an advanced, integrated power management IC (PMIC) optimized for portable equipment demanding high efficiency, flexible sequencing, and multifaceted power distribution. Supplied in a compact 98-ball BGA MicroStar Junior package (9x6 mm, 0.65 mm pitch), the TPS6591104EA2ZRC is engineered for contemporary applications powered by a single cell Li-Ion or Li-Ion polymer battery, three series Ni-MH cells, or direct 5V input. It is designed to serve as the central power resource for a wide range of application processors, hand-held electronics, and systems requiring several regulated power rails, real-time clock (RTC), and extensive programmability.

Main Characteristics and Built-in Features of the TPS6591104EA2ZRC

The TPS6591104EA2ZRC integrates a rich feature set to address the needs of modern embedded systems:

Three high-efficiency step-down DC-DC converters: Two (VDD1, VDD2) provide scalable power supply for processor cores, supporting dynamic voltage scaling (DVS); a third (VIO) serves I/O and memory rails.

Step-down controller for external FETs (VDDCtrl): Expands high current capability via selectable external MOSFETs.

Eight general-purpose LDOs and a dedicated RTC LDO: Each features fine step voltage programmability and can suit multiple sub-system requirements.

Embedded Power Controller (EPC): Drives user-defined sequencing and system state transitions via EEPROM-programmed logic.

Integrated RTC with alarm and calendar functions: Ensures timekeeping with supply back-up through an internal or external battery.

Nine configurable GPIOs: Multipurpose, supporting power-up sequencing, resource enables, LED drives, and wake-up interrupts.

Power-good, resets (cold/warm), watchdog, and thermal shutdown: Comprehensive suite of monitoring and protection features, enhancing safety.

Power Supply Structure within the TPS6591104EA2ZRC

At its core, the TPS6591104EA2ZRC consolidates a robust architecture for multi-rail system supply:

VDD1 and VDD2 SMPS: Programmable from 0.6 V to 1.5 V in 12.5 mV steps or up to 3.3 V via VGAIN_SEL, enabling optimal core voltage provisioning and advanced low power states.

VIO SMPS: Supplies selectable I/O levels (1.5 V, 1.8 V, 2.5 V, 3.3 V), adhering to modern memory and interface demands.

VDDCtrl Controller: Supports up to several amps output, with external inductors, FET selection, adjustable current limits, and smooth slew rates for high current digital rails.

Eight LDOs: LDO1, 2, and 4 offer 50 mV increments, while the remainder provide 100 mV steps over 1.0 V to 3.3 V, covering analog, RF, or sensitive peripheral supply needs.

Sequenced Power-up/Down: Up to 15 programmable time slots allow flexible activation of voltage domains, GPIOs, and clock signals for both power-on and power-off cycles.

Control Methods, Power-Up Sequencing, and Configurability of the TPS6591104EA2ZRC

The embedded state machine and EEPROM programmability grant engineers full flexibility to match device sequencing with processor start-up requirements:

Programmable control on each power rail: Power-up time slots, delays (0.5 ms/2 ms), and reverse-sequenced shutdown for safe rail deactivation.

Multiple system states: ACTIVE, SLEEP, OFF, BACKUP, and NO SUPPLY—transitions governed by debounced external signals (PWRON, PWRHOLD, SLEEP), internal logic, or interrupts.

Dynamic Voltage Scaling (DVS) & Adaptive Voltage Scaling (AVS): Accessible through a dedicated high-speed I²C interface (EN1/EN2 pins), vital for power-optimized processor performance.

Boot configuration selection via BOOT1 pin: Determines EEPROM settings and sequencing for compatibility with various processors.

Extensive control signals: Include INT1 (all event reporting), HDRST/PWRDN (reset modes), and NRESPWRON/2 (reset outputs for system peripherals).

Interface Options and Peripheral Support in the TPS6591104EA2ZRC

The TPS6591104EA2ZRC supports robust peripheral integration, simplifying system designs:

Dual I²C interfaces: High-speed (up to 3.4 Mbps), one dedicated for general control, another for voltage scaling.

Comprehensive GPIO set: Four assignable as enable for external sequenced resources, two with 10 mA current sink capability suitable for drive LEDs, and support for DC-DC synchronization through external clock input.

RTC block: Offers sub-second timekeeping, programmable alarm/timer interrupts, backup registers for context retention, and optional calibration via compensation registers.

On-chip LED/ PWM generators: For user interface or status indication, routable to selected GPIOs.

Comparator-based battery sensing: Two comparators for system supply voltage and critical threshold detection, supporting complex battery or dual-source designs.

Thermal Solutions, Protective Features, and Dependability for the TPS6591104EA2ZRC

Field reliability is enhanced by a suite of hardware and programmable protection mechanisms:

Thermal shutdown and hot-die detection: Programmable temperature thresholds trigger interrupts or transition the PMIC to OFF state to prevent overheating.

Integrated Watchdog Timer: Supports both periodic and interrupt-driven modes for autonomous system supervision and power cycling.

Robust reset architecture: Multiple reset sources (cold, power-down, general) ensure system and PMIC state recovery in response to system events or faults.

Extensive interrupt system: Maskable and status-tracked, ensuring meaningful system-level events can trigger power state transitions or processor wake-up.

Application Recommendations for the TPS6591104EA2ZRC

When integrating the TPS6591104EA2ZRC, several engineering guidelines maximize system efficiency and reliability:

External component selection: Proper inductor, FET, and capacitor choices are essential for the step-down controllers and converters; detailed equations are provided for sizing based on load, desired transients, and voltage ripple.

PCB layout: Critical for EMI, efficiency, and stability, including input/output capacitor placement, grounding, and current path minimization, particularly around high-current SMPS outputs.

Sequencing customization: Leverage the EEPROM and programmable time slots to precisely control power and reset domain activations, matching processor or sensitive peripheral start-up/shutdown needs.

Use of GPIOs and comparators: Integrate system-level conditions such as battery voltage thresholds or external resource enables into the programmable power-up logic.

Backup power strategy: Ensures uninterrupted RTC operation and system timekeeping with proper primary and backup battery switchover and charging.

Physical, Environmental, and Certification Details of the TPS6591104EA2ZRC

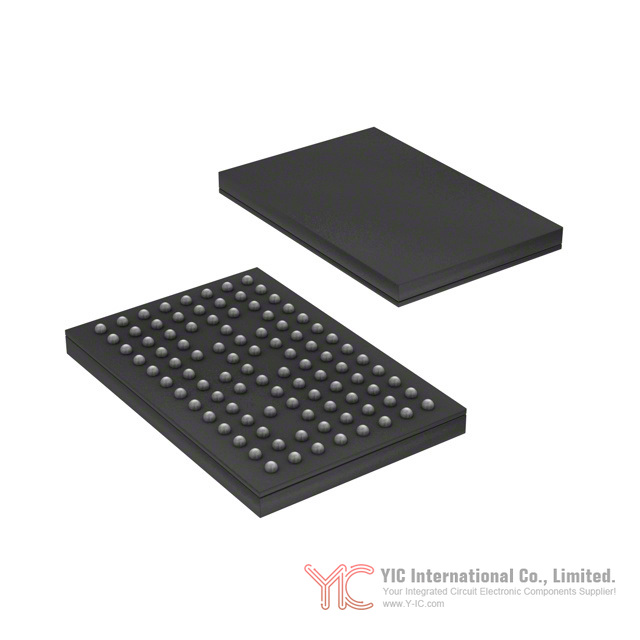

The compact 98-ball BGA package (ZRC) affords high density and low profile (Mo-225 compliant):

Package dimensions: 9 mm x 6 mm footprint and 0.65 mm ball pitch enable efficient use of PCB space.

RoHS and Green compliance: Suitable for global, high-reliability application design standards and lead-free manufacturing processes.

Optimized for SMD assembly: Ensuring robust mechanical and thermal interface, vital for dense mobile/portable system board layouts.

Thermal performance: Designed to dissipate up to 2 W under standard ambient conditions (70°C), with layout and copper area critical for optimal results.

Alternative or Substitute Options for the TPS6591104EA2ZRC

Within the TPS65911 family, several variants, including TPS65911A, TPS659114, TPS659118, and TPS6591133, offer differentiated default EEPROM programming, sequencing, or dedicated processor support. Device selection should consider pinout compatibility and EEPROM settings. When sourcing an equivalent or evaluating alternatives, verify:

Electrical compatibility: Voltage and current ratings match at all rails.

Sequencing compatibility: EEPROM power-up/down order, timing, and GPIO mapping meet processor or board-specific requirements.

Package compatibility: BGA footprint and ball map alignment ensure manufacturability.

Feature set: RTC presence, GPIO assignment, and SMPS/LDO configurations coincide with application needs.

Careful cross-reference with the device comparison tables and user guides for the TPS65911 family is recommended to streamline migration or second-source qualification.

Conclusion

The TPS6591104EA2ZRC stands out as a highly flexible and robust multi-channel PMIC ideal for portable and hand-held systems demanding complex power-up sequences, high integration, and power optimization. Its advanced DVS/AVS support, comprehensive protection suite, flexible GPIOs, and integrated RTC ensure design scalability and differentiation. By following recommended design practices and leveraging programmability, engineers and procurement professionals can implement reliable, energy-efficient, and compact power management solutions for a broad spectrum of portable electronic devices.
