Intel EN6337QI

Introduction to the Intel Enpirion EN6337QI

The Intel Enpirion EN6337QI is a non-isolated, high-performance Power System on a Chip (PowerSoC) DC-DC step-down switching converter. With an integrated inductor, power switches, and compensation circuitry, the EN6337QI delivers highly efficient conversion for demanding point-of-load (POL) applications. Designed primarily for next-generation processors, FPGAs, ASICs, and memory in distributed power architectures, the EN6337QI supports a 3A continuous output current in a compact 4mm x 7mm x 1.85mm 38-pin QFN package. Its input voltage range spans from 2.5V to 6.6V, while providing a programmable output voltage from as low as 0.6V up to 6.285V, making it suitable for a wide array of low-voltage digital loads.

Main Functions and Built-in Technologies of the EN6337QI

Intel’s EN6337QI leverages proprietary inductor integration and advanced high-frequency switching technology to achieve up to 95% efficiency at full load. The PowerSoC monolithic design minimizes external components and PCB footprint, simplifying system layout and accelerating design cycles. Critical features include:

Integrated controller, MOSFETs, and inductor in a single package

Fast dynamic response for voltage transients and tight regulation

Programmable soft-start and light load mode (LLM) for optimized start-up and light load efficiency

Frequency synchronization capability for EMI reduction

Remote on/off, comprehensive protection: over-temperature (OTP), over-current (OCP), short-circuit protection (SCP), and under-voltage lockout (UVLO)

Open-drain Power OK (POK) for simple power sequencing and monitoring

RoHS compliant and suitable for reflow manufacturing (Moisture Sensitivity Level 3, 260°C reflow)

Electrical Parameters and Performance Summary of the EN6337QI

The EN6337QI’s flexible electrical ratings enable power engineers to address rapidly evolving system rail demands:

Input voltage range: 2.5V to 6.6V

Output voltage: Adjustable from 0.6V up to (Vin VDO), maximum selectable output 6.285V

Maximum continuous output current: 3A (PWM or LLM mode)

High conversion efficiency up to 95% (typical, depending on voltage and load)

Switching frequency: 1.9MHz (with 1.5MHz to 2.3MHz external sync capability for EMI-sensitive systems)

Fast soft-start interval programmable between 10nF to 68nF for smooth ramp-up

Robust output voltage regulation (e.g., VFB = 0.75V±2%)

Full suite of protections: UVLO triggers at Vin < 2.075V, overcurrent protection at 5A (Vin = 5V, Vout = 1.2V), thermal shutdown at 160°C with 35°C hysteresis

Representative efficiency curves illustrate sustained high-efficiency operation across 1.2V–3.3V output rails, ensuring minimal heat generation and high system efficacy for embedded and communication applications.

EN6337QI Pin Configuration and Control Features

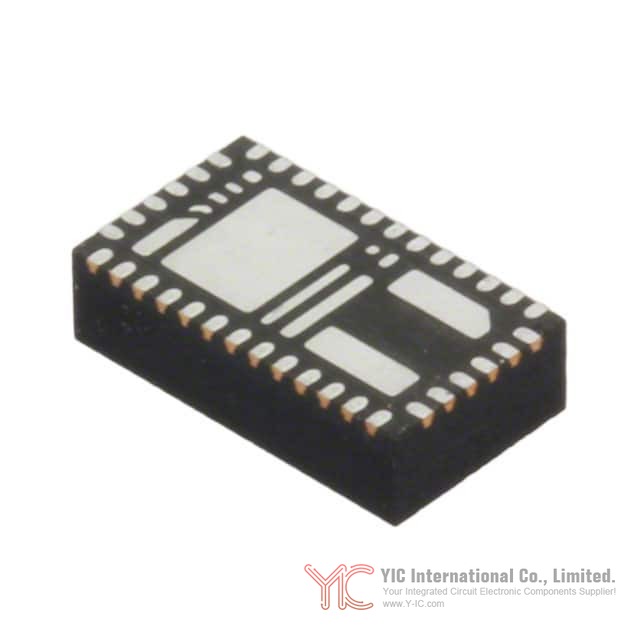

The EN6337QI employs a 38-pin QFN layout to optimize electrical and thermal performance. Major pin functions include:

PVIN/AVIN: Split power and analog input rails for noise isolation

VOUT: Multiple pins summed for high current output capability

PGND/AGND: Separate power and analog grounds to minimize switching noise

ENABLE: Active-high pin for output enable and soft-start sequencing

LLM/SYNC: Engages Light Load Mode or accepts an external clock for frequency synchronization

POK: Power OK status indicator enabling system-level sequencing

SS: Soft-start capacitor control to tailor ramp-up speed per downstream requirements

VFB: Feedback tap for output voltage programming via an external resistor divider

RLLM: Sets LLM engage threshold for improved light load efficiency

Strict adherence to provided pin guidelines is essential—e.g., no-connect (NC) pins must be soldered to the PCB but remain unconnected electrically, guarding against device malfunction or damage. The exposed pad ensures thermal dissipation and must be connected to system ground.

Thermal Properties and Durability of the EN6337QI

Thermal reliability is a cornerstone for power conversion components. The EN6337QI is engineered with low junction-to-case (3°C/W) and junction-to-ambient (30°C/W) thermal resistance, supporting robust operation up to 125°C junction temperature. Integrated thermal shutdown provides an extra safeguard, deactivating the converter at 160°C and re-enabling upon cooldown by 35°C. The package’s compact format facilitates efficient placement in dense layouts, while RoHS compliance and JEDEC MSL 3 classification ensure compatibility with high-volume, lead-free manufacturing processes.

Use Cases for the EN6337QI

The EN6337QI is optimized for high-density, high-efficiency applications such as:

Point-of-load regulation for multi-core processors, FPGAs, and ASICs used in blade servers, RAID controllers, storage devices, and LAN/SAN adapter cards

Sensitive analog and mixed-signal loads where low output voltage ripple and fast transient recovery are critical (e.g., wireless base stations, industrial test/measurement, automation)

Printed circuit boards with stringent space constraints (total solution size ≈75mm²), supporting both embedded computing and printer power distribution architectures

Designs requiring EMI compatibility, utilizing the LLM/SYNC pin to synchronize switching and minimize interference with nearby analog or radio circuits

The EN6337QI's fast response, small solution footprint, and high efficiency make it suitable for both new designs and retrofit applications in systems seeking performance enhancements or board simplification.

Alternative or Substitute Models for the EN6337QI

Product status for the Intel Enpirion EN6337QI is listed as obsolete, prompting the need for suitable replacements in ongoing and future designs. When evaluating potential substitutes, engineers should consider electrical and mechanical compatibility, protection features, efficiency, and footprint. Equivalent non-isolated synchronous step-down converters in a similar current class, voltage range, and advanced integration may serve as drop-in or near-drop-in replacements. Additionally, cross-reference tools or direct guidance from semiconductor manufacturers can be used to identify current-generation PowerSoCs or power modules optimized for both new designs and legacy board spins.

Conclusion

The Intel Enpirion EN6337QI provides a highly integrated, efficient, and compact solution for modern digital power delivery challenges, excelling in demanding applications that require rapid transient response, tight voltage regulation, and system-level protection. While the EN6337QI remains a reference design for PowerSoC step-down converters, its end-of-life status necessitates timely evaluation of alternatives with comparable electrical and packaging attributes. By understanding the EN6337QI’s technology, features, and application strengths, engineers and procurement specialists can make informed decisions for high-performance point-of-load power supply designs.
