Honeywell Aerospace HMC1052L-TR

Product Summary Honeywell HMC1052L-TR Dual-Axis Magnetoresistive Sensor

The Honeywell HMC1052L-TR represents a robust solution for engineers requiring precise, solid-state magnetic field measurements in demanding applications. As a member of Honeywell’s HMC105X family, this device is a Wheatstone bridge-based sensor capable of detecting directional magnetic fields along two orthogonal axes (X and Y) with high sensitivity. Its 16-pin LCC package ensures compatibility with compact system designs, making it especially well-suited for electronic compassing, magnetometry, and current sensing applications in both industrial and consumer sectors.

Primary Attributes and Technology Overview of the HMC1052L-TR

Leveraging Honeywell’s proprietary Anisotropic Magnetoresistive (AMR) technology, the HMC1052L-TR offers several critical advantages. Unlike traditional coil-based sensors, AMR sensors deliver superior sensitivity—suitable for detecting Earth’s magnetic field strength, from as low as 120 micro-gauss up to six gauss. The device integrates near-perfectly orthogonal dual sensor bridges on a single silicon chip and incorporates shared set/reset and offset coils, optimizing performance and reducing component count. Designed for a wide operating temperature range (-40°C to +125°C), the sensor ensures reliable function in harsh environments.

Notable features of the HMC1052L-TR include:

Two-axis (X, Y) measurement capability

16-LCC surface-mount package for streamlined integration

Shared on-chip set/reset and offset straps for precise field adjustment and calibration

High output linearity and low noise characteristics

Solid-state construction for high reliability and longevity

Comprehensive Package Details and Pin Assignment of HMC1052L-TR

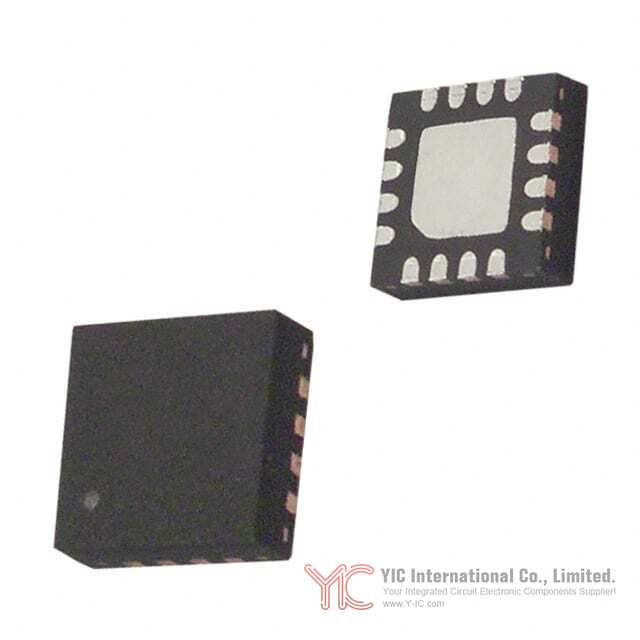

The HMC1052L-TR is delivered in a compact 16-lead leadless chip carrier (LCC) format, optimizing it for surface-mount assembly. Each pin serves distinct signal, power, or strap functions specific to magnetic sensor operation. The pinout and mechanical diagrams are designed to facilitate straightforward integration into PCB layouts, and the package offers excellent protection for the sensitive AMR die. Precise pin assignments are engineered to align with standard analog, power, and set/reset signal conventions, ensuring design clarity for circuit developers.

Operating Mechanism and Distinctive Strap Characteristics of HMC1052L-TR

At the heart of the HMC1052L-TR are AMR thin-film resistive elements arranged in dual Wheatstone bridge configurations, each aligned to sensitive measurement axes. The output voltage changes proportionally with incident magnetic field magnitude and direction along the defined axes.

Two critical on-chip features enhance versatility:

Offset strap: A metal spiral integrated along the sensitive axis allows recalibration or compensation for unwanted magnetic fields and bridge offsets, enabling bucking, nulling, closed-loop cancellation, or auto-calibration modes.

Set/reset strap: Another spiral aligned orthogonally to the sensitive axis enables high-current pulses to periodically realign magnetic domains within the AMR elements. This set/reset functionality ensures long-term measurement stability, minimizes offset drift, and improves linearity and cross-axis error performance. The sensor is often pulsed via specific drive circuits—either H-bridge or single-ended MOSFETs—to perform regular set/reset operations, optimizing signal reliability even under fluctuating magnetic environments.

Noise Characteristics and Cross-Axis Performance of the HMC1052L-TR

Noise performance is a critical parameter in low-field magnetic sensing. The HMC1052L-TR, like its family counterparts, achieves a low noise density—approximately 50 nV/√Hz at 1 Hz, falling to below 10 nV/√Hz at 5 Hz. At 10 Hz, noise averages around 1.4 microvolts. This superior low-noise behavior is essential for applications like compassing, where minute field differences must be reliably resolved.

Cross-axis sensitivity, or the device’s susceptibility to off-axis fields, is well managed but still present—typically within ±3% of full-scale response up to 1 gauss. Careful calibration and use of regular set/reset pulsing are recommended to keep cross-axis effects minimal in precision systems.

Application Examples and Practical Engineering Uses of HMC1052L-TR

The HMC1052L-TR is a versatile platform, finding use in several application domains:

Electronic compassing: By aligning the two sensor axes horizontally, heading can be calculated via the arc-tangent of Y/X sensor outputs, providing accurate azimuth information for robotics, geophysical instruments, and portable navigation systems.

Magnetometry and anomaly detection: When paired with suitable amplifiers and A/D converters, the sensor can detect subtle changes in environmental magnetic fields, enabling applications such as magnetic anomaly detection or enhancing security by screening for ferrous objects.

Current sensing: Positioned near an external conductor, the HMC1052L-TR senses magnetic fields proportional to current flow for applications ranging from precision power supply monitoring to non-intrusive load detection.

Three-axis field sensing: Combined with additional sensors (e.g., HMC1051, HMC1053), full vector field measurement becomes possible, including tilt compensation through the integration of accelerometers—a must for reliable, real-world 3D compass solutions.

For engineers pursuing low-power designs, the sensor supports duty cycling—rapidly powering up for short measurement intervals—thanks to its low input capacitance and swift stabilization. Application note guidelines recommend minimizing set/reset pulse frequency for best energy savings in battery-operated systems.

Implementation Guidelines Assembly and Solder Reflow Instructions for HMC1052L-TR

The HMC1052L-TR’s 16-LCC package is optimized for modern automated assembly processes. For reliable electrical contact and solder joint quality, a 4 mil stencil with 100% paste coverage across pads is advised. The device is compatible with both leaded and lead-free solder profiles up to 220°C. During manual rework, use soldering irons below 315°C to avoid copper pad delamination from the underlying fiberglass substrate.

Electrostatic discharge precautions are necessary, as the AMR die is sensitive to ESD, and standard ESDS CAT. 1B handling procedures should be followed throughout storage, assembly, and board debug.

Alternative and Replacement Options for the HMC1052L-TR

For design flexibility or sourcing alternatives, the Honeywell HMC105X sensor family offers closely related models:

HMC1051/HMC1051Z: Single-axis (Z) AMR sensor, available in SIP and LCC packages

HMC1052: Standard two-axis variant in 10-pin MSOP package for size-sensitive applications

HMC1053: Three-axis (X, Y, Z) sensor, housed in a 16-LCC and suitable for full 3D compassing

Selection among these models depends on axis requirements, physical footprint constraints, and desired degree of system integration.

Conclusion

Honeywell’s HMC1052L-TR two-axis magnetoresistive sensor provides a highly accurate, robust, and versatile platform for magnetic field measurement in a wide array of engineering applications. With its AMR technology, on-chip adaptive features, and low-noise performance, it enables precision navigation, detection, and measurement systems for both traditional and emerging electronic designs. By understanding its functional characteristics, operational guidelines, and available equivalent options, engineers and procurement specialists can confidently integrate the HMC1052L-TR into their next-generation projects.
