Infineon Technologies S29AL008J55BFIR23

Product Summary S29AL008J55BFIR23 Infineon Technologies NOR Flash Memory

The S29AL008J55BFIR23 is an 8 Mbit (1M × 8-bit / 512K × 16-bit) parallel NOR Flash memory device manufactured by Infineon Technologies, incorporating Cypress’s proven Flash technology. Designed for use in embedded and automotive applications, this device caters to demanding non-volatile storage needs, particularly where high performance, sector-level flexibility, and robust data retention are required. With a 3.0V single-supply operation, fast access times down to 55 ns, and availability in both 48-ball Fine-pitch BGA and 48-pin TSOP packages, it offers system designers efficiency, scalability, and reliability.

Key Features of S29AL008J55BFIR23 Infineon Technologies NOR Flash Memory

The S29AL008J55BFIR23 delivers several competitive advantages for engineering teams:

Single 2.7–3.6V power supply for both read and write operations, simplifying power management in battery-powered or portable systems.

Compatibility with JEDEC Flash standards, ensuring ease of integration and interchangeability with similar NOR Flash devices.

Manufactured with advanced 110 nm process technology, providing an optimal balance of speed, endurance, and power efficiency.

Superior data protection options, including hardware sector locks and low voltage write-inhibit features, mitigate risks during power transitions and system glitches.

Dual boot block configuration (top or bottom), offering flexibility in firmware storage and code execution architectures in embedded systems.

Automotive qualified versions meeting AEC-Q100 Grade 1 and Grade 3 standards, suitable for extended temperature ranges from –40°C to +125°C.

Device Structure and Sector Layout of S29AL008J55BFIR23 Infineon Technologies NOR Flash Memory

The internal organization of the S29AL008J series supports optimized sector-based operations:

Memory is divided into flexible sector sizes: one 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and fifteen 64 Kbyte sectors in byte mode; corresponding configurations are available in word mode.

This structure enables selective erase and program operations, allowing firmware upgrades or data storage changes without disturbing unaffected sectors—essential for systems requiring robust field updates or adjustable data partitions.

The Secured Silicon Sector feature provides a 256-byte region for permanent, secure device identification, accessible via dedicated command sequences. This is ideal for anti-cloning measures in mission-critical applications.

Packaging Choices and Handling Instructions for S29AL008J55BFIR23 Infineon Technologies NOR Flash Memory

S29AL008J55BFIR23 is offered in two package types to support diverse board-level requirements:

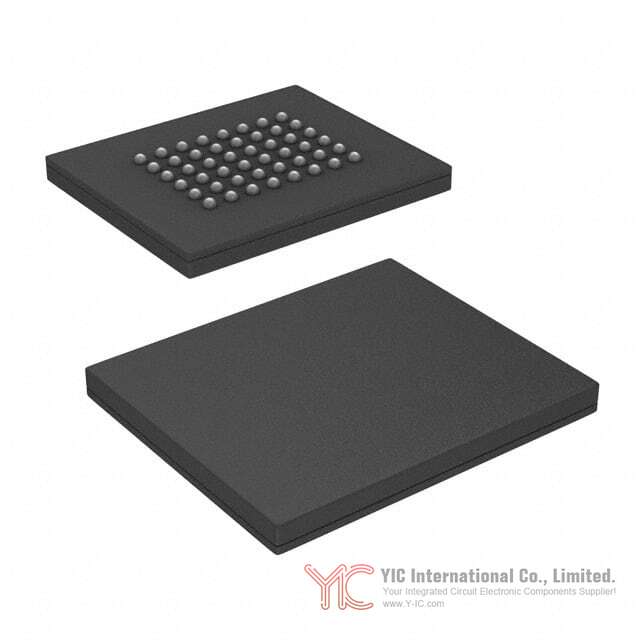

48-ball VFBGA (8.15 mm × 6.15 mm × 1.00 mm) for compact designs constrained by footprint or profile.

48-pin TSOP (18.4 mm × 12.0 mm × 1.2 mm) for standard SMT assembly with well-established soldering practices.

Attention must be paid to handling procedures: Flash devices in BGA packages are sensitive to ultrasonic cleaning and prolonged exposure to high temperatures (>150°C), which may compromise both package integrity and data reliability.

Bus Functions and Data Retrieval Techniques for S29AL008J55BFIR23 Infineon Technologies NOR Flash Memory

The S29AL008J enables seamless system interaction via standard parallel bus protocols:

Supports both 8-bit (DQ7–DQ0) and 16-bit (DQ15–DQ0) data IO configurations, with BYTE# pin selecting the mode.

Read operations are straightforward, with chip enable (CE#) and output enable (OE#) controlling device selection and data output.

Separate write enable (WE#) and output enable eliminate bus contention, supporting high-speed system integrations.

The device is designed to be programmed both in-system with standard microprocessor cycles as well as in EPROM programmers, facilitating both field and production programming.

A range of bus operations, including autoselect, standby, and sleep modes, maximize system performance and power efficiency in typical embedded applications.

Sector Locking, Unlocking, and Security Capabilities of S29AL008J55BFIR23 Infineon Technologies NOR Flash Memory

Data integrity is reinforced through the S29AL008J55BFIR23's robust security architecture:

Hardware sector group protection can lock any combination of sectors against program or erase operations. Protection can be set in-system or using programming equipment, giving flexibility during manufacturing and deployment.

The Temporary Sector Unprotect feature enables dynamic modification to previously locked sectors, simplifying code updates or secure data refreshes in controlled environments.

The Secured Silicon Sector ensures a segment for permanent device identification—factory-locked versions prevent post-shipment modification, while customer-lockable variants allow a one-time programmable area for unique identifiers or secure keys.

Common Flash Interface Standards and Software Commands for S29AL008J55BFIR23 Infineon Technologies NOR Flash Memory

Supporting streamlined development and system compatibility, the S29AL008J employs:

CFI (Common Flash Interface) compliance, permitting host software to auto-detect device parameters and adjust programming algorithms dynamically—critical for systems requiring versatile firmware support.

The comprehensive command set includes program, chip erase, sector erase, unlock bypass for faster programming, erase suspend/resume, and autoselect for manufacturer/device identification and sector protection status.

Operation Status Indicators and Diagnostic Features of S29AL008J55BFIR23 Infineon Technologies NOR Flash Memory

Engineers benefit from clear operational feedback mechanisms:

Multiple status outputs, including Data# Polling (DQ7), Ready/Busy# (RY/BY#), and toggle bits DQ6/DQ2, allow real-time monitoring of program and erase operations.

DQ5 provides a flag for exceeded timing limits, supporting robust error detection and recovery.

The RY/BY# open-drain output allows multiple devices to be monitored in parallel, with a simple pull-up resistor configuration.

Electrical Specifications, Timing Parameters, and Reliability Data for S29AL008J55BFIR23 Infineon Technologies NOR Flash Memory

Key electrical and performance parameters include:

Maximum access times down to 55 ns, supporting wait-state-free operation for fast microcontrollers and DSPs.

Ultra-low power consumption, with typical sleep and standby currents at 0.2 μA, read current at 7 mA, and program/erase current at 20 mA.

Endurance rated at 1,000,000 program/erase cycles per sector (typ.), with a 20-year data retention specification—making it suitable for long-life industrial or automotive designs.

Extended temperature range (–40°C to +125°C), fitting stringent automotive and industrial qualification standards.

Mechanical Package Measurements of S29AL008J55BFIR23 Infineon Technologies NOR Flash Memory

Physical outlines support precise board design and assembly planning:

TSOP: 18.4 mm × 12.0 mm × 1.2 mm with JEDEC-compliant pin out.

VFBGA: 8.15 mm × 6.15 mm × 1.00 mm; detailed ball grid array mapping and identification protocols per industry standards.

Engineering teams must ensure proper layout, mechanical support, and thermal considerations during PCB design, especially for BGA soldering and reflow processes.

Possible Substitute/Alternative Models for S29AL008J55BFIR23 Infineon Technologies NOR Flash Memory

For product selection or lifecycle management, engineers may consider the following alternatives:

S29AL008J: Other ordering codes and package types within the same Infineon/Cypress family, which the S29AL008J55BFIR23 is a part of.

S29AL008D: Manufactured on 200 nm process technology, this predecessor model is pinout and software compatible with the S29AL008J, providing a migration path for existing designs.

For automotive or special compliance needs, review available AEC-Q100 grade alternatives in the S29AL008J family by consulting Infineon’s qualified combinations.

Conclusion

The S29AL008J55BFIR23 from Infineon Technologies stands as a robust, flexible, and highly reliable NOR Flash memory solution for embedded and automotive systems. Its advanced security, broad temperature range, fast access times, and versatile packaging options ensure suitability across an array of demanding designs. Supported by comprehensive diagnostic and protection features, alongside industry-standard software and hardware interfaces, the S29AL008J55BFIR23 enables engineers to optimize system performance, security, and lifecycle reliability. For both new designs and replacement needs, Infineon’s S29AL008J series should be high on the list of considerations for engineering teams seeking advanced parallel NOR Flash memory.
