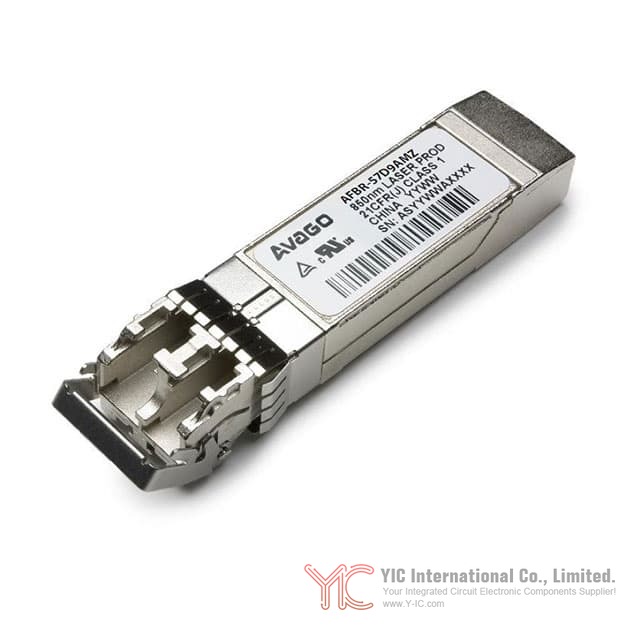

Broadcom Limited AFBR-57D9AMZ

Mfr. Part

AFBR-57D9AMZ

Manufacturer

Avago Technologies Broadcom

Y-IC is a quality distributor for Broadcom Avago products. We supply genuine parts and back you with expert service, fast response, and dependable after-sales support.

Detailed Description

High-performance short-reach fiber optic transceiver module in SFP form factor for 8.5 Gbd links at 850 nm. Designed for pluggable use in networking and storage hardware that needs reliable 8G Fibre Channel connectivity over multimode fiber with LC duplex connectors. RoHS3 compliant. Supplied in bulk packaging. Base product family AFBR-57D9.

Key Features

Data rate 8.5 Gbd for 8G Fibre Channel links

Optical wavelength 850 nm for multimode fiber

Form factor SFP pluggable and hot‑swappable

Connector LC duplex

Supply voltage 3.3 V nominal

RoHS3 compliant and lead-free

Bulk packaging option

Designed for short-reach multimode applications in data centers and SAN environments

Typical SFP management via I2C per common MSA practice check datasheet for exact DDM support

Broad compatibility with Fibre Channel switch and HBA ports that accept 8G SFP optics

Key Advantages

Simple plug-and-play installation reduces downtime

Low power 3.3 V operation helps cut overall system power

850 nm multimode operation lowers cabling cost versus single-mode where short distances are sufficient

LC duplex interface is widely used and easy to service

Backed by Broadcom Avago optical heritage for quality and reliability

Y-IC provides stable supply with professional technical and sourcing support

Packaging

Type bulk pack for production and integration use

Form factor SFP module with metal shell and EMI shielding for robust insertion and good EMC

Typical SFP size approximately 56.5 mm length x 13.7 mm width x 8.5 mm height fits standard SFP cages and faceplates

Mechanical interface SFP latch and bale clasp for secure retention

Electrical interface standard SFP edge connector 20 contacts including TX Disable TX Fault MOD-DEF SDA SCL LOS VccT VccR GND TD plus minus and RD plus minus consult datasheet for exact pin map

Optical interface LC duplex receptacles for MMF

Thermal characteristics hot-pluggable SFP design with case temperature ratings defined by specific option standard families include commercial and extended ranges consult datasheet for exact AFBR-57D9AMZ rating and heat dissipation guidelines

Electrical properties single 3.3 V supply compliant with SFP MSA limits low power consumption typical for 8G SR modules ripple and noise per MSA ESD handling required on all pins and optical ports see datasheet for absolute maximum ratings

Lifecycle

Current status subject to Broadcom lifecycle updates. As of recent releases the AFBR-57D9 family is widely used in 8G FC deployments. Always verify the latest status

If you require pin to pin or performance equivalents or qualified alternatives for multi-source or second-source planning please contact Y-IC sales via our website. We will propose vetted 8G Fibre Channel 850 nm LC multimode SFP options that match your distance temperature and diagnostics needs

If the specific AFBR-57D9AMZ variant is not available we can recommend compatible AFBR-57D9 family options and cross-vendor 8G FC SR LC SFP modules after confirming your system requirements

Key Application Areas

8G Fibre Channel links in storage area networks SAN

Switch to switch and switch to storage connections

Server HBAs to SAN fabric uplinks

Data center short-reach interconnects over multimode fiber

Enterprise backup and replication networks

Lab test and development setups requiring 8G FC optics
