Summary of 292161-2 TE Connectivity AMP CT Product Features

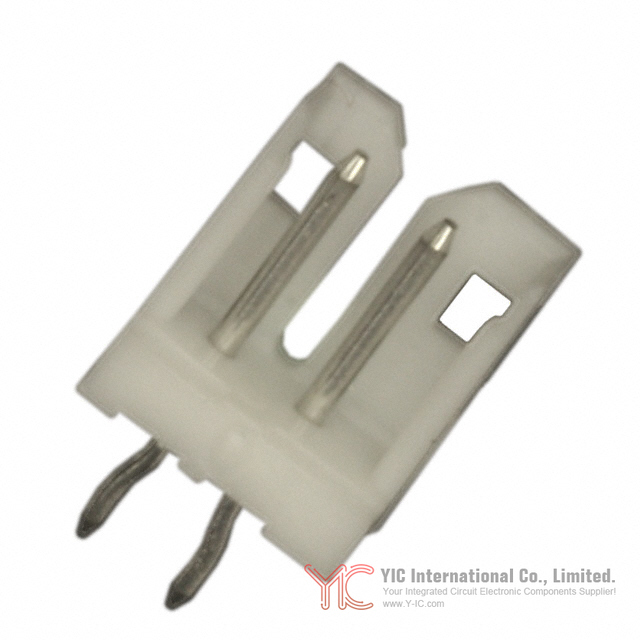

The TE Connectivity 292161-2 is a vertical, two-position PCB header designed within the AMP CT (Connector Termination) series. Engineered for reliable wire-to-board connections, it features a 2 mm (0.079 in) centerline spacing, a partially shrouded configuration, and through hole solder termination. This header is especially targeted at compact applications where board-space and signal integrity are crucial, such as industrial controls, consumer electronics, and small-form-factor embedded systems. As a fundamental bridge between cable harnesses and printed circuit boards, the 292161-2 is often selected for its balance between mechanical robustness and ease of assembly in mass production.

Main Electrical and Mechanical Specifications of 292161-2 AMP CT

From an engineering perspective, the 292161-2 PCB header delivers two positions in a single row, optimizing space efficiency in high-density layouts. The through hole, vertical mount style provides solid mechanical retention, an asset for applications subject to vibration or movement. The partially shrouded design aids in keying and port alignment, reducing the risk of mis-mating during board or panel assembly. The tin (Sn) plating on contacts contributes to good solderability and corrosion resistance, ensuring electrical reliability throughout the product’s operational life. Designers working on multi-board stacks or modular assemblies benefit from the 2 mm pitch, which allows efficient parallel routing without sacrificing current-carrying capability for signal and low-power lines. Importantly for volume production, the header’s DIP (Dual Inline Package) form factor aligns with industry-standard assembly tools and processes.

Composition, Surface Finish, and Environmental Standards for 292161-2 AMP CT

For procurement and design-for-compliance teams, the material makeup and environmental characteristics of the 292161-2 are directly relevant to product qualification. The contacts are tin-plated, providing reliable solder joints and protecting against oxidation in most operational environments. Furthermore, the component’s construction and supply chain adheres to strict environmental regulations. The 292161-2 is identified as EU RoHS and ELV compliant, meaning levels of lead, mercury, hexavalent chromium, and other hazardous substances are tightly controlled or absent, facilitating global market access. This compliance extends to the requirements of European Chemicals Agency REACH standards, supporting end-products intended for regulated markets such as the EU and automotive sectors.

Interchangeable Components and System Compatibility in the AMP CT Family

Optimal use of the 292161-2 header is achieved by pairing it with compatible elements from the AMP CT portfolio. The matching contact and housing part numbers, such as the CAT-AM7017-H8172 and power-related assemblies, are specifically engineered to ensure intermateability and secure retention. For example, cable assemblies like the 2405869-1 (CT 2P 300MM Cable Assembly) are designed for plug-and-play integration, minimizing risk and simplifying the prototyping or scaling process. This ecosystem approach benefits engineering teams by reducing connector mismatches, supporting robust design validation, and enabling streamlined procurement workflows across multiple assembly lines.

Possible Alternatives or Substitute Models for 292161-2 TE Connectivity AMP CT

Engineers and buyers may occasionally require equivalents or drop-in replacements due to sourcing considerations, end-of-life cycles, or BOM standardization. Within the AMP CT series, several close alternatives share the core functional attributes of the 292161-2, notably headers such as the 292161-8 (providing more positions for scale-up requirements) or versions with feature tweaks like additional kinked leads for enhanced board retention. Other manufacturers may offer 2 mm pitch, two-position, vertical, through-hole PCB headers, but careful attention should be paid to factors such as contact geometry, shroud design, and compatibility with CT assemblies before substitution. For true form/fit/function replacement, sticking to the AMP CT ecosystem typically ensures the highest confidence in outcome, especially in regulated industries.

Conclusion

on the 292161-2 TE Connectivity AMP CT header

The TE Connectivity 292161-2 PCB header stands as a pragmatic solution for engineers aiming for compact, reliable wire-to-board connections within constrained environments. Its material quality, environmental compliance, and robust mechanics make it a dependable choice for design engineers, while its ecosystem compatibility and regulatory credentials streamline the procurement process. Thorough understanding of these technical and operational aspects enables confident selection and successful long-term deployment, cementing the 292161-2 as a valuable component in both new designs and mature product updates.
