onsemi PCA9306FMUTAG

Mfr. Part

PCA9306FMUTAG

Manufacturer

AMI Semiconductor / onsemi

Y-IC is a quality distributor of AMI Semiconductor/onsemi and we will provide you with the best products and services

Detailed Description

Ultra-small dual bidirectional voltage level translator for open-drain buses such as I2C/SMBus. One device, two channels, automatic direction sensing, open-drain I/O. Wide supply ranges on each side for easy mixed-voltage interfacing. Tiny 8-UDFN 1.45 x 1.0 mm package for dense layouts. Surface-mount, RoHS3 compliant, -55°C to +125°C operating temperature. Base product number PCA9306.

Key Features

2 bidirectional channels with auto-direction sensing

Open-drain I/O, optimized for I2C and SMBus lines

VCCA 1.0 to 3.6 V on the low-voltage side

VCCB 1.8 to 5.5 V on the high-voltage side

Single translator circuit per IC

8-UDFN package, 1.45 x 1.0 mm footprint

Surface-mount mounting type

Operating temperature range -55°C to +125°C (TA)

RoHS3 compliant

Typical use requires external pull-up resistors on both sides of the bus

EN pin allows clean enable/disable of translation

Key Advantages

Simple, reliable level shifting between 1.0–3.3 V controllers and 1.8–5.5 V peripherals

Auto-direction removes firmware handling of bus direction

Open-drain behavior maintains I2C/SMBus signal integrity

Very small package saves board space in wearables, sensors, and compact modules

Wide temperature range suits industrial and harsh environments

Low power, passive FET architecture minimizes heat and simplifies power design

Packaging

Shipment type Tape & Reel (TR) for automated assembly

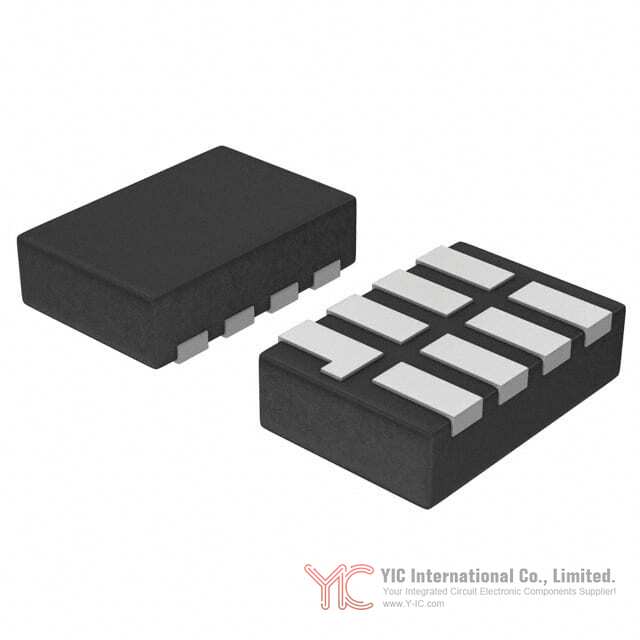

Package and case 8-UDFN (1.45 x 1.0 mm); also noted as 8-UFDFN in some sources

Supplier device package 8-UDFN (1.45 x 1.0 mm)

Mounting type Surface Mount

Material Molded epoxy over copper leadframe; lead-free matte-tin plating

Size 1.45 mm x 1.0 mm body, ultra-low profile

Pin configuration 8 pins total: A1, A2, B1, B2, VCCA, VCCB, EN, GND

Thermal characteristics Very low power dissipation; ambient operation -55°C to +125°C; suitable for standard reflow; no large exposed thermal pad required

Electrical properties Translator type voltage level, open-drain outputs, 2 channels per circuit, number of circuits 1, VCCA 1.0–3.6 V, VCCB 1.8–5.5 V

Lifecycle

Current market status Active and widely used; not flagged as nearing discontinuation based on publicly available information

Equivalent or alternative models

- onsemi NVT2003 Dual bidirectional I2C level translator, similar voltage ranges, different package options

- Texas Instruments PCA9306DCU 8-VSSOP version of dual bidirectional I2C level translator

- Texas Instruments TCA9406 Dual bidirectional I2C level translator with auto-direction, small QFN/VSSOP packages

- NXP PCA9306 Multiple package variants (VSSOP, TSSOP, XSON), functional equivalent dual bidirectional I2C level translator

- NXP PCA9517A I2C level translator/buffer (note buffered architecture; check differences)

If you need pin-for-pin, package-specific, or automotive-grade drop-ins, contact our sales team via the Y-IC website for the latest cross-reference and lifecycle updates

Key Application Areas

I2C and SMBus voltage bridging between mixed-voltage domains

MCU, MPU, or FPGA to sensors, ADCs, DACs, EEPROMs, and other 3.3 V to 5 V peripherals

Multi-voltage platforms in consumer, industrial, and medical devices

Portable and battery-powered products needing tiny level translators

Board-to-board or module interconnects with open-drain signaling

Prototyping and production where quick, reliable I2C level shifting is required

Datasheet

Y-IC hosts the most authoritative datasheet for PCA9306FMUTAG on our product page. We recommend downloading the datasheet here to get full electrical specs, timing, pinout, and layout guidance

Request for Quotation Now

Get a Quote on Y-IC now. Learn More and secure pricing and delivery with our Limited Time Offer. Fast response, competitive pricing, and 2689 pcs available. Order today and accelerate your build
