Analog Devices Inc. ADSP-BF533SBBCZ-5V

ADSP-BF533SBBCZ-5V Embedded Processor Summary and Key Features

The ADSP-BF533SBBCZ-5V, developed by Analog Devices Inc., stands out as a high-performance member of the Blackfin® embedded processor family. Engineered for demanding digital signal processing (DSP) and real-time embedded control applications, the device brings together DSP-level computing power and RISC-like code efficiency in a flexible single-chip solution. With a core clock velocity of 533MHz and a rich set of system peripherals, the ADSP-BF533SBBCZ-5V is especially well-suited for next-generation digital communications, multimedia, and signal processing applications across industrial, consumer, and automotive sectors. The device is offered in a 160-ball CSP_BGA package and is completely pin- and code-compatible with other members of the Blackfin ADSP-BF531/ADSP-BF532/ADSP-BF533 family.

Core Architecture and Processing Capabilities of ADSP-BF533SBBCZ-5V

At the heart of the ADSP-BF533SBBCZ-5V is the Blackfin processor core, which fuses dual 16-bit multiply-accumulate (MAC) units, two 40-bit arithmetic logic units (ALUs), four dedicated 8-bit video ALUs, and a 40-bit barrel shifter. This configuration supports both parallel and vectorized computation, ideal for advanced signal processing, audio, and video workloads. Eight 32-bit compute registers, used flexibly for various operand widths, feed a highly optimized register-based instruction set—RISC-like in structure—for superior code density and efficient compiler targeting. The core features SIMD (Single Instruction, Multiple Data) capabilities, zero-overhead loops, modified Harvard architecture memory access, and comprehensive interrupt/event handling, including hardware-nesting and prioritization.

The architecture supports user, supervisor, and emulation modes, enabling both robust security and system-level debug. A high-speed program sequencer manages conditional, indirect, and relative program control flow, while built-in support for C/C++ enables rapid software prototyping and deployment.

Memory Structure and Handling in ADSP-BF533SBBCZ-5V

Efficient memory handling is pivotal to real-time and DSP applications. The ADSP-BF533SBBCZ-5V boasts a unified 32-bit, 4GB address space incorporating internal and external resources. Internally, up to 148KB high-speed on-chip memory is split among L1 instruction SRAM/cache, L1 data SRAM/cache, and dedicated scratchpad. The memory management unit (MMU) guarantees protected multitasking and supervisor-level security for system registers.

For off-chip expansion, the device's external bus interface unit (EBIU) supports direct connectivity to SDRAM (up to 128MB compliant with PC133), flash, SRAM, ROM, and memory-mapped I/O with glueless interface logic. Programmable booting from SPI, external parallel memory, and flash is supported, as is memory-to-memory and peripheral-to-memory data movement via high-bandwidth DMA controllers equipped for 1D/2D transfers. These mechanisms collectively offer deterministic access for real-time workloads.

Peripheral Connectivity and System Integration ADSP-BF533SBBCZ-5V

Targeting complex embedded designs, the ADSP-BF533SBBCZ-5V offers a suite of high-performance on-chip peripherals:

Parallel Peripheral Interface (PPI): Supports video, ADC/DAC, and parallel peripheral interfacing, including ITU-R 656 video.

Dual SPORTs: Synchronous serial ports supporting I²S multi-channel audio, TDM voice standards (H.100, H.110, MVIP), and hardware companding.

SPI Port: Full-duplex master/slave communications with up to seven chip selects, plus integrated unidirectional DMA support.

UART: PC-compatible full-duplex asynchronous serial, with IrDA and DMA support.

Timers: Four general-purpose Programmable Timers with PWM output, period measurement, and input-capture for advanced system timing.

GPIO: Sixteen programmable I/O pins (Port F) supporting level/edge-sensitive interrupts and rapid toggling.

Real-Time Clock and Watchdog: Low-power RTC with battery backup and programmable alarms, plus a hardware watchdog for fault recovery.

JTAG: IEEE 1149.1-compliant Test Access Port for real-time in-circuit debugging and emulation.

Event Controller: Two-stage interrupt controller for sophisticated, prioritized system event management.

Engineers can flexibly map these peripherals for multidomain communication demands, real-time audio/video streaming, and system diagnostics.

Power Optimization and Dynamic Management ADSP-BF533SBBCZ-5V

Low power operation is a core advantage of the Blackfin family, and the ADSP-BF533SBBCZ-5V exemplifies this with integrated dynamic power management. The device operates across four primary power modes (full-on, active, sleep, deep-sleep) plus a hibernate state that powers down the core to minimize static leakage. Engineers can dynamically scale both core voltage and clock frequency through the on-chip programmable voltage regulator and PLL subsystems, optimizing power versus performance based on processing needs. The architecture further segregates power domains—core, I/O, RTC—enabling subsystem-level shutdown for prolonged battery life or to meet application energy constraints.

Environmental, Electrical, and Packaging Specifications ADSP-BF533SBBCZ-5V

Supporting a wide range of system implementations, the ADSP-BF533SBBCZ-5V tolerates 3.3V I/O, with output compliance linked to external supply (V_DDEXT). The internal voltage is programmable between 0.85V and 1.3V (regulator), catering to specific performance grades. Maximum core clock is 533MHz, with specific requirements for clock and voltage selection to avoid overshoot; system designers will find detailed timing, current, and thermal characteristics in the datasheet tables.

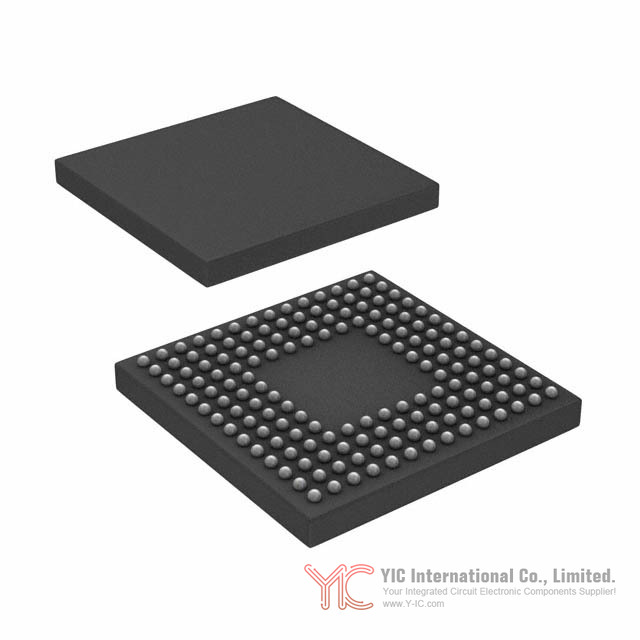

The device is available in several package choices, but the ADSP-BF533SBBCZ-5V is supplied in a compact 160-ball CSP_BGA, ideal for high-density board layouts and automated assembly. All I/O pins are three-stated on reset, with selected pins designed for robust ESD protection and flexible multiplexing. Complete pinout and package drawings facilitate error-free board design and system integration.

Development Tools and Design Support for ADSP-BF533SBBCZ-5V

Engineers evaluating the ADSP-BF533SBBCZ-5V gain access to a well-developed ecosystem:

Development Tools: Analog Devices offers CrossCore® Embedded Studio and VisualDSP++® IDEs for C/C++ and assembly development, with advanced debug, code generation, and optimization tools.

Evaluation Boards: EZ-KIT Lite® platforms enable functional prototyping and benchmarking of Blackfin processors, with expansion boards for audio, video, and network interfaces.

Algorithm Libraries & Middleware: CrossCore Embedded Studio integrates drivers, RTOSes, file systems, and popular DSP algorithms.

Detailed Application Notes: Extensive documentation on power, clock, memory, and interface design, along with practical tips for system integration and board layout.

JTAG Emulation: In-circuit emulators allow interactive development and troubleshooting of sophisticated embedded platforms.

Comparable or Substitute Models for ADSP-BF533SBBCZ-5V

Selecting the optimal part in the Blackfin family—or considering direct replacements—depends on system memory and performance needs:

ADSP-BF531: Pinand code-compatible with the ADSP-BF533SBBCZ-5V, but with lower on-chip memory and core frequency ceiling.

ADSP-BF532: Offers an intermediate configuration, sharing the same core features and package options as ADSP-BF533SBBCZ-5V.

For automotive applications, automotive-grade variants (such as ADBF533W) offer enhanced qualification and may have slightly modified parameter sets. Applications requiring incremental or reduced capability—but desiring board reuse—can therefore cost-optimize by selecting among these close alternatives.

Conclusion

: The Value Proposition of the ADSP-BF533SBBCZ-5V

The ADSP-BF533SBBCZ-5V delivers a unique blend of high-speed DSP computation, low-power operation, extensive peripheral integration, and a mature development ecosystem. Additionally, its flexible power/clock management and comprehensive set of interfaces make it a workhorse for designers targeting real-time multimedia and control systems. With proven documentation, package options, and drop-in compatibility across Blackfin variants, the ADSP-BF533SBBCZ-5V is an excellent candidate for both new designs and legacy system upgrades in fields ranging from advanced audio/video to industrial process control. For engineers and procurement professionals, it represents a robust balance of performance, scalability, and design-in flexibility.
