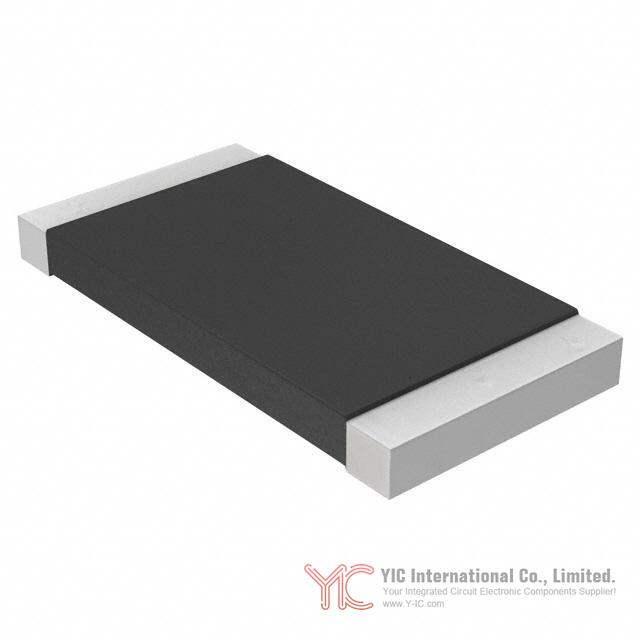

Dale / Vishay WSL25123L000FEA

Summary of Vishay Dale WSL25123L000FEA Chip Resistor

The Vishay Dale WSL25123L000FEA is a high-reliability, current-sense chip resistor engineered for precision applications requiring low resistance and robust performance. With a resistance of just 3 mΩ, a 1% tolerance, and a 1 W power rating, the device fits the industry-standard 2512 (6432 metric) surface-mount footprint. The WSL25123L000FEA is designed for engineers prioritizing accuracy in current measurement, protection against harsh environmental factors, and compatibility with automotive-grade requirements.

Key Characteristics and Technical Details of WSL25123L000FEA

At the heart of the WSL25123L000FEA is its capability to deliver precise current sensing with minimal impact on circuit performance. Key specifications include:

Resistance value: 0.003 Ω (3 mΩ)

Tolerance: ±1%

Power rating: 1 W

Package: 2512 (6432 metric, surface-mount)

Very low inductance: 0.5 nH to 5 nH

Low thermal EMF (< 3 μV/°C)

Pulse withstanding capability

Automotive AEC-Q200 qualification

The device is optimized for surface-mount assembly, making it suitable for automated production and high-density PCB designs. It is not voltage sensitive and is therefore limited only by power or energy dissipation. Qualified under AEC-Q200, the resistor is suitable for demanding automotive and industrial environments.

Build Quality and Material Benefits of WSL25123L000FEA

One of the defining characteristics of the WSL25123L000FEA is its all-welded Power Metal Strip® construction. The device utilizes a solid metal alloy resistive element (nickel-chrome or manganese-copper) renowned for its low temperature coefficient of resistance (TCR, < 20 ppm/°C), ensuring minimal resistance drift over a wide operating temperature range.

This resistive element is welded to a solid copper terminal, which is further treated with a 100% tin finish over a nickel underlayer, guaranteeing both excellent electrical conductivity and mechanical durability. The advanced proprietary processing yields extremely low resistance values while maintaining tight tolerance, creating an ideal solution for precision current sensing and voltage division roles. The package is also compliant with RoHS, with moisture-resistant and flame-retardant properties based on resistor technology.

Operation Under Harsh Conditions Resistance to Sulfur, Moisture, and Automotive Standards

The WSL25123L000FEA is constructed to remain stable and reliable in the presence of high sulfur environments – a significant advantage for automotive, industrial, and outdoor electronic applications. Its anti-sulfur construction resists the corrosion mechanism that can compromise conventional resistors, preserving electrical performance over long operating lifetimes.

Moisture resistance is another key feature. Reliable surface-mount performance under humid or variable climate conditions ensures the resistor maintains integrity in critical applications where condensation, splash, or variations in temperature are routine.

Automotive engineers will find assurance in the device’s AEC-Q200 qualification, which certifies its durability through rigorous testing for temperature cycling, mechanical shock, and environmental exposure. The resistor is optimized for designs that require stringent reliability metrics, including electric vehicle battery management systems, power conversion modules, and other high-current automotive applications.

Engineering Design Use Cases for WSL25123L000FEA

The WSL25123L000FEA’s low resistance and high pulse withstanding capacity make it a top choice for current sensing in power management circuits, battery protection, motor drive monitoring, and power supply feedback paths. Its 1 W rating and surface-mount footprint are ideal for applications where PCB space is at a premium yet precise current measurement or fault detection is required.

In voltage division circuits, the resistor offers minimal impact on system accuracy, especially in low-voltage, high-current settings. It can help optimize thermal management in designs that need to monitor or control temperature via current feedback.

For engineers aiming for reliable product qualification, using the WSL25123L000FEA in automotive or industrial standards-compliant systems increases confidence in long-term field performance and regulatory approval.

Possible Substitute or Alternative Models for WSL25123L000FEA

Selecting replacements or equivalents for the WSL25123L000FEA requires careful consideration of resistance value, tolerance, power rating, footprint, and application environment. For designs where higher current handling is needed, upgrading to the WSLP series may provide improved specifications. Conversely, for applications needing a zero-ohm jumper, the WSL-9 series is recommended.

Alternative models should maintain the core attributes that define the WSL25123L000FEA: welded metal strip construction for low TCR and anti-sulfur performance, automotive qualifications, and robust moisture resistance. Always validate equivalent parts against AEC-Q200 certification and specific environmental requirements dictated by your design.

Conclusion

The Vishay Dale WSL25123L000FEA power metal strip chip resistor sets a benchmark for high-reliability current sensing in demanding environments. Its precision, robust construction, and adherence to automotive standards position it as a foundational component for engineers focused on accurate, long-life solutions in power management and protection roles. By understanding the device’s technical and application features and the criteria for potential equivalents, engineers and procurement professionals are equipped to make informed decisions on integrating the WSL25123L000FEA into their next-generation electronic systems.
