Traco Power THN 15-1212

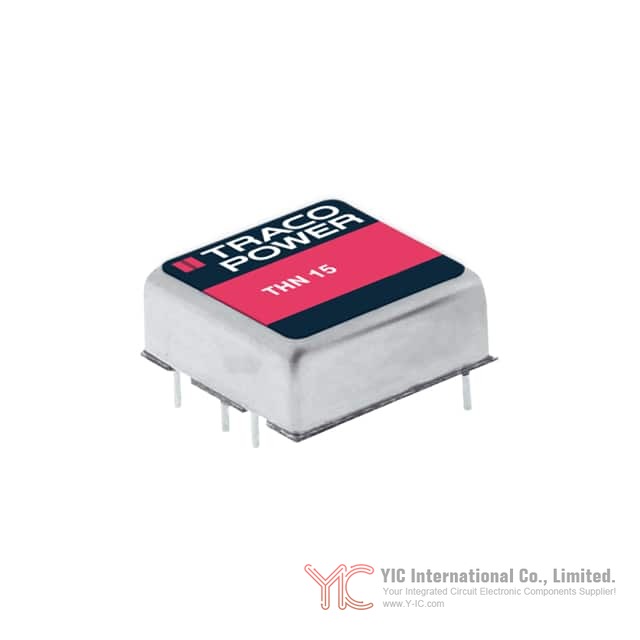

Overview of the THN 15-1212 Traco Power DC/DC Converter

In the rapidly evolving landscape of electronics engineering, optimizing both power density and design efficiency is a constant challenge—especially as applications demand higher performance in smaller footprints. Traco Power’s THN 15-1212 DC/DC converter is a standout solution in this arena, offering a compact isolated DC/DC module optimized for space-constrained environments without sacrificing power capability or reliability. As an isolated module delivering 12V at 1.3A with up to 16W of output power, the THN 15-1212 meets the requirements of product selection engineers and procurement professionals seeking robust functionality and ease of integration.

Main Characteristics of the THN 15-1212

The THN 15-1212 DC/DC converter brings a portfolio of advanced features essential for modern electronic system design:

Ultra-compact encapsulated form factor (1.0" x 1.0" x 0.4")—up to 50% reduction in PCB space compared to previous generations.

Wide input range (9V to 18V DC) accommodates varying supply voltages typical in industrial and mobile applications.

Output trim capability, allowing precise voltage regulation to meet exact system demands.

Input-to-output isolation of 1600VDC for enhanced system safety and noise immunity.

Very high efficiency levels reaching up to 88%, supporting both thermal management and energy savings.

Robust design with -40°C to +85°C operating temperature range (with derating).

Industry-standard pinout ensures straightforward drop-in replacement and future scalability.

Remote on/off control enabling power management flexibility.

3-year manufacturer’s warranty underscoring commitment to reliability and support.

Electrical and Mechanical Details of the THN 15-1212

Compliant with the specifications of the THN 15 series, the THN 15-1212 offers the following detailed technical attributes:

Output Voltage: 12V DC (with trim functionality)

Output Current: 1.3A (maximum), delivering up to 16W output power

Input Voltage Range: 9 to 18V DC (2:1 range)

Input-to-Output Isolation: 1600VDC

Encapsulation: Shielded metal case with isolated baseplate

Industry Standard Pinout: Facilitates compatibility and PCB design flexibility

Dimensions: 1.0" x 1.0" x 0.4" ultra-compact package for high-density assemblies

Environmental Compliance: RoHS3 and REACH

Moisture Sensitivity Level: Not applicable (robust against moisture-related failures)

Performance and Durability Aspects of the THN 15-1212

The THN 15-1212 is architected for best-in-class reliability and electrical performance, validated at full load, nominal input voltage, and +25°C operating temperature. The combination of encapsulated construction and a shielded metal housing mitigates EMI/RFI issues while facilitating heat dissipation. The module’s high efficiency—up to 88% even under heavy load—translates into less wasted heat, which is a critical factor for densely populated electronic assemblies. The supported ambient temperature range enables deployment in harsh industrial environments or thermally demanding mobile instrumentation. Furthermore, the remote on/off feature is increasingly valuable for power sequencing and energy-saving modes in complex systems.

Recommended Uses for the THN 15-1212

The compact form factor and versatility of the THN 15-1212 DC/DC converter make it very well-suited for multiple application domains, including:

Mobile equipment requiring isolated, regulated power supplies in limited space, such as handheld instruments or portable medical devices.

Industrial control systems and distributed power architectures, where PCB real estate is at a premium and reliability is non-negotiable.

Telecommunications applications needing noise immunity and flexible power distribution.

Any advanced electronic assembly where high power density, isolation, and ruggedness are engineering priorities.

Design Considerations for Using the THN 15-1212

When integrating the THN 15-1212, engineers should note several practical considerations:

Wide input range allows for supply voltage flexibility, but attention must be paid to input filtering and inrush current protection.

The ability to trim the output voltage enables close matching to downstream subsystem requirements—verify compatibility with sensitive load circuits.

The remote on/off pin provides useful options for sequenced start-up or power management, especially in battery-powered or smart power environments.

Careful attention to PCB layout can maximize the benefits of the shielded case, reducing potential EMC/EMI concerns.

The standard pinout and robust mechanical design ensure easy replacement or upgrade cycles, especially in industrial maintenance scenarios.

Alternative or Replacement Options for the THN 15-1212

While the THN 15-1212 is optimized for many demanding applications, engineers often require alternatives for supply chain robustness or design flexibility. Within Traco Power’s own catalog, alternative models in the THN 15 Series offer similar electrical performance but with different preset output voltages or input range variants (such as 18–36V or 36–75V input models). There are also comparable DC/DC converters from major manufacturers that provide similar output ratings, efficiency, isolation voltage, and form factors, ensuring continuity of supply and design flexibility.

When evaluating replacements, it is critical to verify that the electrical, mechanical, thermal, and certification characteristics meet the demands of the specific application to prevent unintended system issues.

Conclusion

For engineers designing space-constrained, high-reliability electronic systems, the THN 15-1212 DC/DC converter from Traco Power stands out as an optimal combination of high power density, wide input range, robust isolation, and advanced feature set. With industry-standard size, comprehensive application relevance, and proven environmental resilience, the THN 15-1212 is a competitive choice for powering the next generation of industrial, communications, and portable electronic applications. By considering integration best practices and evaluating potential alternates when needed, engineering teams can leverage the full value of the THN 15-1212 in their developments.
