Texas Instruments TMS320C6474FGUNA

TMS320C6474FGUNA Multicore DSP Product Summary

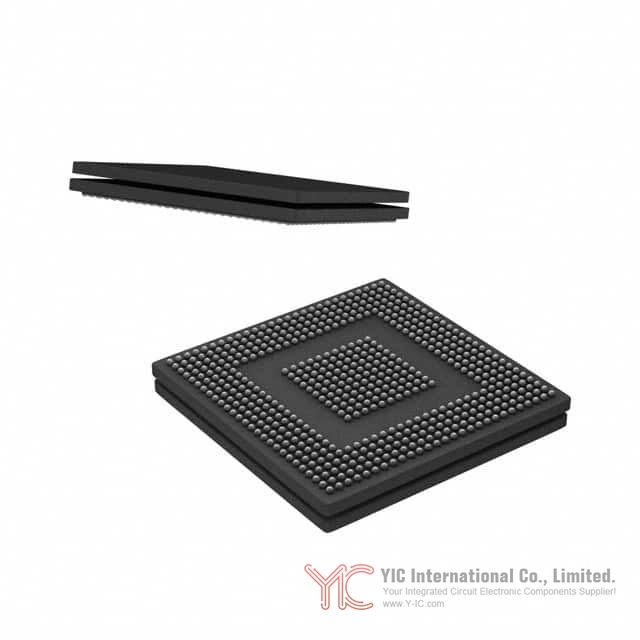

The TMS320C6474FGUNA from Texas Instruments represents a high-performance solution within the TMS320C6000™ DSP platform, leveraging a multicore approach to address demanding signal processing workloads. With three advanced TMS320C64x+™ DSP cores operating at speeds up to 1.2 GHz, the TMS320C6474FGUNA is architected to deliver industry-leading fixed-point processing power for applications spanning telecommunications infrastructure, medical imaging, and video analytics. Housed in a 561-ball FCBGA package and supporting both commercial and extended temperature ranges, the device provides a robust integration of compute, memory, and I/O resources suitable for embedded systems requiring deterministic, real-time signal processing capability.

TMS320C6474FGUNA Processor Core Design

Central to the TMS320C6474FGUNA's architecture are its three independent C64x+ DSP cores, each based on an enhanced very long instruction word (VLIW) design and built using a 65-nm CMOS process. Each core is equipped with eight functional units, distributed across multipliers, arithmetic logic units, loaders, and shifters, offering massive parallelism and the ability to execute up to eight 32-bit instructions per cycle. Innovative features such as SPLOOP buffers for accelerated software pipelining and compact 16-bit instructions reduce code size and overhead. The architecture provides exception handling, privilege separation, and data type versatility, making it suitable for intricate communications, real-time control, and advanced algorithmic routines.

Memory Subsystem Integration in the TMS320C6474FGUNA

The device incorporates a hierarchical memory system tailored for low-latency access and bandwidth scalability. Each core features a 32 KB L1 program cache (direct-mapped) and a 32 KB L1 data cache (two-way set-associative), configurable as cache or SRAM for performance tuning. The L2 memory provides 1 MB per core, with flexible partitioning between cache and RAM. A 64 KB L3 ROM provides system boot and diagnostics functionality. Memory protection is robust, enabling page-level access permissions and supervisor/user mode separation. The device supports direct and global addressability, facilitating efficient multicore software design and code/data sharing across cores or system masters.

TMS320C6474FGUNA System Connectivity and Data Handling

To maximize throughput between its processing cores, peripherals, and memory, the TMS320C6474FGUNA uses dual switch fabric architectures—one for data transfers and another for configuration. These switch fabrics allow low-latency, concurrent operations between system masters (such as the enhanced DMA controller, RapidIO, and Ethernet MAC) and slave peripherals, efficiently arbitrating system access by programmable priority. The EDMA3 controller supports up to 64 independent channels, chaining, ping-pong buffering, and flexible event triggering—enabling complex, real-time data movement scenarios with minimal CPU intervention.

TMS320C6474FGUNA Peripheral Components and High-Speed Connections

A key strength of the TMS320C6474FGUNA lies in its rich suite of integrated interfaces designed for high-bandwidth data ingress and egress. Dual 1x Serial RapidIO (SRIO) links (v1.2, up to 3.125 Gbps each) facilitate multiprocessor systems and high-performance embedded computing. The integrated 1000 Mbps Ethernet MAC (EMAC) supports IEEE 802.3 compliance and SGMII v1.8, with multiple independent transmit and receive channels to support networked architectures. The 16-/32-bit DDR2-667 memory controller supports scalable external memory subsystems, while two McBSPs, a multi-master I2C, and sixteen GPIOs provide flexible connectivity for ADC/DACs, sensors, and control devices. The Antenna Interface Subsystem, compliant with OBSAI and CPRI protocols, offers six full-duplex high-speed serial links for wireless infrastructure and base station applications.

Application-Specific Accelerators within the TMS320C6474FGUNA

The device features two critical hardware accelerators to offload and drastically speed up signal processing tasks: the enhanced Viterbi Decoder Coprocessor (VCP2) and the enhanced Turbo Decoder Coprocessor (TCP2). VCP2 supports high-throughput channel decoding for voice and 3GPP/3GPP2 standards, while TCP2 implements advanced turbo decoding and supports extensive configuration for different protocol requirements and frame sizes. Both coprocessors are seamlessly integrated with the multicore architecture and can be serviced by the EDMA3 for autonomous operation within the processing chain.

TMS320C6474FGUNA Device Setup and Startup Options

The TMS320C6474FGUNA supports highly flexible, software-driven configuration and multiple boot modes, ensuring adaptability across system environments. Configuration choices—such as boot source (e.g., no boot, ROM boot, Serial RapidIO), device endianness, and pin multiplexing—are latched at reset and can be externally set via dedicated pins with appropriate pull-up/pull-down strategies. The device’s boot architecture is designed to support secondary/custom bootloaders and offers robust mechanisms for staged system bring-up, including precise control over peripheral enablement post-reset, which is essential for optimizing system power and security.

Timing, Power Management, and Heat Dissipation for the TMS320C6474FGUNA

High-performance multicore operation demands careful attention to clocking, power management, and thermal characteristics. Two programmable phase-locked loops (PLLs) generate the main core and DDR2 clocks, supporting fine-grained frequency control and stable system timing. The device employs SmartReflex™ adaptive voltage scaling, dynamically optimizing core voltage per process corner for reduced leakage and active power consumption. System-level power-down features, including static and dynamic control of cores and peripherals, allow engineers to craft energy-efficient solutions. Compliance with extended temperature operation and requirements for heat-sinking underline the suitability of the device for demanding industrial and telecom environments.

Development Resources and Ecosystem for the TMS320C6474FGUNA

A robust development ecosystem includes TI’s Code Composer Studio™ IDE, support for real-time operating systems (DSP/BIOS), and a suite of hardware evaluation modules and emulators, enabling engineers to profile, debug, and optimize applications for the TMS320C6474FGUNA. Extensive documentation—spanning architecture reference guides, hardware design notes, interface and peripheral implementation guidelines—is available. The device is further supported by an active user community and a range of application-specific design resources, reducing time-to-market for complex DSP-based systems.

Alternative or Replacement Devices Comparable to TMS320C6474FGUNA

For engineers exploring design alternatives, Texas Instruments’ TMS320C64x+ family offers several pin-compatible and architecture-compatible solutions. The TMS320C6472 is a close multicore relative, with a similar core structure but tailored for different application scales. The TMS320C6455 serves as a single-core alternative when lower parallel workload is acceptable. When evaluating replacements, pay careful attention to peripheral subset, external memory interface width, voltage ranges, and package compatibility, as not all members support the same temperature, frequency, and interface mix. Upward code compatibility within the C6000 DSP platform is a distinguishing advantage if future scalability is planned.

Conclusion

The TMS320C6474FGUNA multicore DSP stands out as a versatile, high-performance processing engine, combining advanced core architectures, rich on-chip memory, high-speed data movement infrastructure, a suite of accelerators, and robust peripheral integration. Its balance of performance, configurability, and ecosystem support make it ideal for engineers designing telecom base stations, imaging platforms, or any application requiring deterministic, real-time high-throughput DSP. Engineering teams must match their system requirements with the device’s capabilities, considering thermal, power, and peripheral needs, as well as potential roadmap continuity, to fully leverage the TMS320C6474FGUNA in modern embedded solutions.
