Texas Instruments TMUX1308BQBR

Introduction to the Texas Instruments TMUX1308BQBR Multiplexer

The Texas Instruments TMUX1308BQBR is an industry-standard, single-channel, 8:1 analog multiplexer designed for versatile analog and digital signal switching. Leveraging advanced CMOS technology, this component provides robust bidirectional signal routing in a compact 16-WQFN package (2.5 mm x 3.5 mm). With a wide supply voltage range (1.62 V to 5.5 V), low on-resistance, and automotive qualification, the TMUX1308BQBR stands out for applications demanding reliability, flexibility, and high performance. Engineers selecting analog multiplexers for scalable system designs will appreciate its thoughtful feature integration, which addresses both legacy compatibility and next-generation application requirements.

Main Attributes and Advantages of TMUX1308BQBR

The TMUX1308BQBR incorporates several distinctive features to support both analog and digital system design:

Injection Current Control: The integrated injection current control eliminates the need for external protection circuitry, permitting input voltages beyond the supply without harmful effects on the enabled signal path or the supply rail.

No ESD Diode Path to VDD: This design ensures no unintentional power is fed back to the supply in case of overvoltage, safeguarding sensitive upstream devices.

Bidirectional Signal Path: All switches support input and output in both directions, enhancing design flexibility.

Rail-to-Rail Operation and 1.8V Logic Compatibility: Ensures signal integrity and broad MCU/logic family compatibility.

Fail-Safe Logic: Control pins tolerate logic voltages prior to power-up, preventing device damage during sequencing events.

Low Capacitance (2 pF typical) and Fast Switching: Optimizes performance for high-speed analog and digital signals.

Automotive AEC-Q100 Qualification: Suitable for mission-critical or demanding industrial and automotive environments.

Pin Compatibility: Replaces industry-standard 4051 and 4851 devices, simplifying drop-in upgrades in legacy systems.

Comprehensive Technical Details of TMUX1308BQBR

The TMUX1308BQBR is defined by rigorous technical parameters to facilitate reliable, predictable operation:

Channels: 8:1, single-ended analog switch

On-State Resistance (Ron): Maximum 195 Ω across the supply range

-3dB Bandwidth: 500 MHz, suitable for high-frequency signals

Switching Time: Maximum turn-on of 32 ns and turn-off of 40 ns

Charge Injection: Low, at -6.5 pC

Off-State and Channel Capacitance: CS(off) 2 pF, CD(off) 7 pF

Maximum Off-Leakage Current: 1 nA typical

Crosstalk: -90 dB at 1 MHz for minimal channel-to-channel interference

Operating Temperature: -40°C to 125°C ambient

ESD Protection: 2 kV (HBM), 750 V (CDM)

Supply Voltage: 1.62 V to 5.5 V

Continuous Switch Current: -25 mA to 25 mA (up to 125°C)

RoHS3 and REACH Compliance, MSL1 rating (Unlimited shelf life under proper storage conditions)

Use Cases of TMUX1308BQBR in Contemporary Electronic Designs

The TMUX1308BQBR multiplexer can be deployed in a diverse range of analog and digital signal routing scenarios:

Analog and Digital Signal Multiplexing/Demultiplexing: Ideal for applications requiring multiple signal sources to be routed to a single ADC, DAC, or microcontroller input.

Data Acquisition and Diagnostics: Frequently used within rack servers, remote radio units, or industrial diagnostics for channel expansion and monitoring.

Instrumentation and Test Equipment: Enables on-the-fly switching of measurement points, improving the versatility of automated test setups.

Automotive and Industrial Control: With AEC-Q100 qualification, the device is suitable for control systems, electricity meters, multifunction printers, and off-highway vehicle electronics.

Home and Office Electronics: Appliance control boards, air conditioning systems, network cameras, and currency counters can all leverage the TMUX1308BQBR for efficient signal management.

Operational Overview and Pinout Information for TMUX1308BQBR

The TMUX1308BQBR is structured for easy integration with microcontrollers or control logic. Its 16-WQFN package supports the following:

Pinout: 8 source pins (S0–S7), 1 drain pin (D, common), 3 binary address lines (A0, A1, A2), an enable pin (EN), power (VDD), ground (GND), and a thermal pad.

Control Logic: Three address pins (A0, A1, A2) select which input/output channel connects to the common drain D. Bringing EN high disables all switches; when EN is low, selection follows the address logic per the provided truth table.

Signal Path: Each pin can act as an input or output, and the rail-to-rail operation ensures signals from 0 V to VDD.

Fail-Safe Logic: Allows application of logic voltage to address and enable pins before power is applied to VDD, protecting the device during startup.

Thermal Pad: Can be soldered to the PCB (optional) for improved heat dissipation, or left floating/tied to GND.

Design Tips and Application Recommendations for TMUX1308BQBR

When integrating the TMUX1308BQBR into a design, engineers should consider the following:

Power Decoupling: Place a 0.1 μF to 10 μF capacitor between VDD and GND as close to the device as possible for noise immunity.

Signal Integrity: The low Ron and capacitance support high-speed signals but layout and routing should minimize parasitics, especially in applications approaching the device's bandwidth limits.

Overvoltage Events: Thanks to internal injection current control, the device tolerates signal voltages exceeding VDD; however, ensure that source/drain current and injected current remain within specified limits.

Sequencing: The fail-safe logic simplifies integration where control logic supplies may ramp before analog rails.

Thermal Management: Although the device is efficient, the WQFN package and available thermal pad aid heat dissipation under higher switching currents or elevated ambient temperatures.

Packaging, Environmental Ratings, and Regulatory Compliance for TMUX1308BQBR

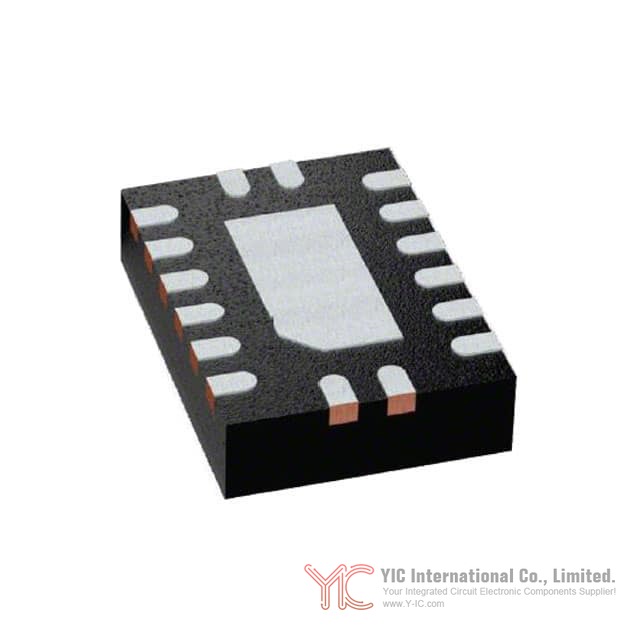

TMUX1308BQBR is available in a 16-lead WQFN (2.5 mm x 3.5 mm) package, offering compact PCB footprint and optimal electrical/thermal performance. Key compliance points include:

Automotive AEC-Q100 qualification

RoHS3 and REACH environmental compliance

MSL1 (moisture sensitivity) rating

High ESD robustness meeting ANSI/ESDA or JEDEC standards

Operating temperature range: -40°C to +125°C

Full specification of thermal metrics to support reliability in demanding environments

Possible Alternative or Substitute Devices for Texas Instruments TMUX1308BQBR

Engineers seeking alternatives for the TMUX1308BQBR can consider:

Texas Instruments TMUX1309: A related device within the same family, providing a 4:1, dual-channel configuration (differential) instead of 8:1 single-ended.

Industry Standard 4051 and 4851 Multiplexers: The TMUX1308BQBR is designed to be pin-compatible with these classic multiplexers, allowing seamless substitution in existing designs.

For applications requiring different switch counts or voltage ranges, similar modern multiplexers from major semiconductor manufacturers can be cross-referenced (always verify the critical parameters such as on-resistance, charge injection, bandwidth, and input logic levels when selecting replacements).

Conclusion

: Evaluating TMUX1308BQBR for Your Application Needs

The Texas Instruments TMUX1308BQBR is a versatile, high-performance analog multiplexer suitable for a wide swath of industrial, automotive, and consumer applications. Its advanced features, including robust overvoltage tolerance, low on-resistance, high bandwidth, and fail-safe logic, ensure reliable system operation in even challenging environments. When designing mixed-signal or analog front-ends, the TMUX1308BQBR provides a solution that balances legacy compatibility with forward-looking features, making it a compelling choice for engineers and procurement professionals aiming for performance and reliability in their circuit designs.
