SN75C188DBR Texas Instruments Quad RS-232 Line Driver Product Summary

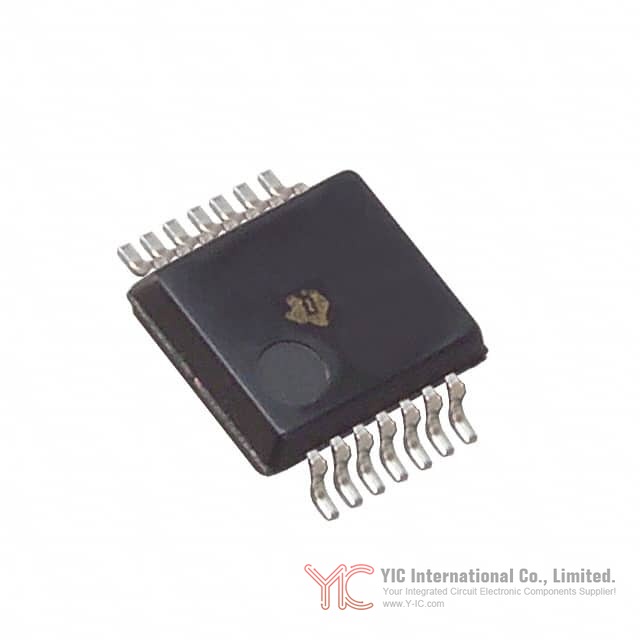

The SN75C188DBR from Texas Instruments is a monolithic, quadruple low-power line driver specifically designed for robust RS-232 interfacing between data terminal equipment and data communications hardware. Conforming to the ANSI EIA/TIA-232-E standard and ITU Recommendation V.28, the SN75C188DBR is optimized for both TTL and CMOS compatibility, offering reliable bidirectional communication in industrial and commercial electronics. Housed in a space-saving 14-SSOP (Shrink Small Outline Package), this device is actively recommended for new designs and is suitable for operating temperature ranges from 0°C to 70°C.

Core Attributes and Electrical Specifications of SN75C188DBR

At the heart of the SN75C188DBR is Bi-MOS technology, enabling extremely low quiescent current consumption, typically around 95 μA at ±12 V supply. Its output stages are current limited to approximately 10 mA, helping protect the device and interface circuitry. The driver inputs support TTL and CMOS logic levels and are equipped with an integrated slew rate limiter (≤30 V/μs max), which helps reduce electromagnetic interference and delivers controlled transitions ideal for communication lines.

Supply voltage flexibility is a notable asset, with full characterization at ±4.5 V and ±15 V rails. Absolute maximum ratings should be closely adhered to in engineering designs: supply voltages must not exceed +15 V or -15 V; input and output voltages are limited to between VCC- to VCC+ (with outputs further limited to VCC- -6 V to VCC+ +6 V). Continuous power dissipation must be managed per manufacturer guidelines to maintain device integrity.

SN75C188DBR Device Structure and Logical Functions

Functionally, the SN75C188DBR incorporates four independent line drivers, each capable of translating logic signals for RS-232 communication. The integrated logic follows ANSI/IEEE Std 91-1984 and IEC Publication 617-12 standards, providing consistent and predictable operation. The device’s positive logic architecture ensures seamless interface with TTL and CMOS systems. Additionally, the design incorporates protection measures, requiring external diodes in series with each supply terminal to safeguard against fault conditions such as high-voltage shorts when supplies are at low impedance or during power-off events.

Optimal Usage Conditions and Reliability Factors for SN75C188DBR

For optimal reliability, the SN75C188DBR is specified for operation from 0°C to 70°C ambient temperature, suited for typical office and industrial process environments. Designers should ensure storage temperatures do not exceed -65°C to 150°C, and soldering conditions must stay within a lead temperature of 260°C for 10 seconds. Only one output may be shorted at a time to avoid permanent damage. The dissipation rating table should be consulted to keep the thermal profile within safe operational boundaries. Compliance with EIA/TIA-232-E fault protection requires the aforementioned external diodes, a critical consideration for maintaining device longevity in systems subject to unpredictable short conditions.

SN75C188DBR Physical, Packaging, and Assembly Information

The SN75C188DBR is available in 14-lead SSOP and SOIC packages, designed to facilitate straightforward PCB assembly and high-density layouts. Each package adheres to JEDEC standards (MO-150 for SSOP, MS-012 for SOIC) and supports typical surface-mount processes. Reference designs for solder paste stencils (0.125 mm thick recommended), board layouts, and mask tolerances offer guidance for engineering teams to streamline prototyping and production. All packaging material and component finishes conform with current RoHS and "Green" standards—meeting requirements for restricted substances and low halogen content, supporting environmentally conscious manufacturing.

SN75C188DBR Application Examples and Engineering Design Recommendations

The SN75C188DBR is ideally suited for systems requiring quadruple driver capability on RS-232 serial ports, such as industrial automation terminals, legacy computer communication cards, or embedded controller modules. Its low-power profile supports battery-operated and power-constrained designs, while integrated slew-rate limiting enables designers to mitigate cross-talk and radiated emissions in sensitive environments. The RS-232 drivers serve as reliable logic translators, accommodating both TTL and CMOS inputs, and can be incorporated within broader logic circuits for seamless digital-analog interface.

Engineers should observe recommended protection strategies, such as incorporating external diodes for power-off fault conditions and restrictive output shorting to guarantee long-term reliability. Adherence to maximum ratings and careful calculation of dissipation—particularly under high-frequency or heavy-load operation—are essential success factors in maintaining optimal device performance.

Alternative and Substitute Models for SN75C188DBR

Texas Instruments SN75C188DBR is functionally interchangeable with several industry-standard devices, including the Texas Instruments SN75188, Motorola MC1488, and National Semiconductor DS14C88. Selection engineers and procurement teams may reference these models when evaluating sourcing alternatives or in situations where design migration or component end-of-life is a consideration. Comparability encompasses pinout, logic levels, and RS-232 protocol compatibility, simplifying migration between different suppliers or within legacy system maintenance frameworks.

Conclusion

: Selecting the SN75C188DBR for RS-232 Communication Designs

In summary, the SN75C188DBR from Texas Instruments presents a robust, low-power, and versatile solution for RS-232 serial driver needs. By aligning with industry standards and providing stringent protection and reliability features, alongside mechanical packages suited for modern assembly lines, the SN75C188DBR stands as a preferred choice for engineers and procurement professionals targeting quality, longevity, and ease of integration in RS-232-based interface designs. Careful attention to application guidelines and equivalency solutions ensures seamless adoption and long-term continuity within diverse system architectures.
