STMicroelectronics VND7050AJ12TR

Summary of the VND7050AJ12TR dual-channel high-side switch by STMicroelectronics

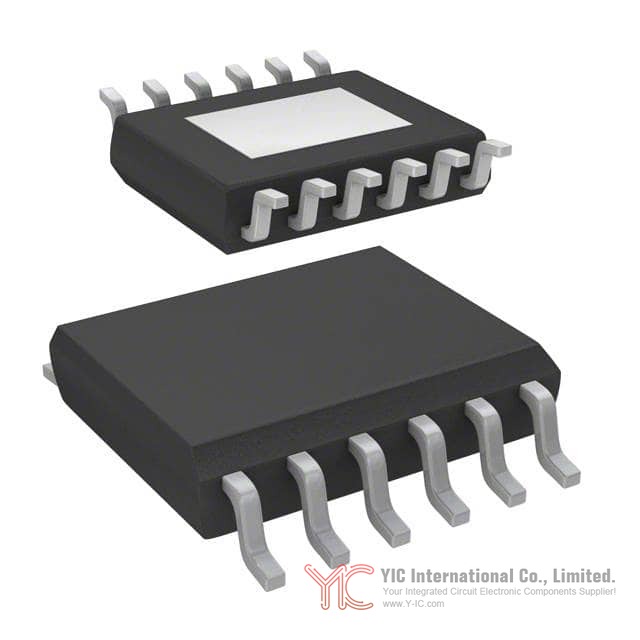

The VND7050AJ12TR by STMicroelectronics is a double channel high-side power driver designed specifically for automotive applications. Leveraging ST’s proprietary VIPower® technology, this device addresses the increasing need for reliability, precision, and robust protection in demanding electrical distribution and load control systems. Each channel can drive up to 21A (internally limited), providing flexible management of resistive, inductive, or capacitive loads commonly found in modern vehicles, such as headlamps, rear combination lamps (up to P27W/SAE1156 or LEDs), and other body electronics functions. Housed in the thermally efficient PowerSSO-12 package, the VND7050AJ12TR ensures a compact footprint suitable for dense automotive electronic control units (ECUs).

Pin assignment and functionality details for the VND7050AJ12TR

The functional layout of the VND7050AJ12TR is engineered for straightforward integration with automotive electronic systems. Its PowerSSO-12 package exposes all key signals and enables surface-mount assembly. Notably, the device features:

Two independent input pins designed for direct interfacing with 3V or 5V CMOS logic levels.

Dedicated output pins per channel for load connection.

A multiplexed CurrentSense analog feedback output to provide a real-time proportional load current signal.

SEn (Sense enable) and SEL (Sense select) pins, which control diagnostics and channel selection for current sense feedback.

Robust ground and supply connections designed with external network protection recommendations for maximum resilience against reverse battery and transient disturbances.

Each functional pin is meticulously described in the technical documentation, supporting optimal configuration—including recommendations for dealing with unused pins and integrating external protection diodes or resistors to meet automotive standards.

Electrical performance and thermal properties of the VND7050AJ12TR

Engineered for reliability, the VND7050AJ12TR is specified for operation from 4V to 28V (with guaranteed cold-cranking operation down to 2.85V, compliant with LV124 and 2013 automotive revisions). Major electrical features include:

Low on-state resistance (typical 50 mΩ per channel) for reduced conduction losses.

Maximum channel output current capability exceeding 21A, with fixed current limitation set at approximately 30A.

Ultra-low standby current (<0.5 µA), supporting efficient system-level power management.

CMOS logic-compatible inputs, simplifying MCU interfacing.

High transient voltage endurance (up to 40V) and ESD protection exceeding 4kV on critical pins.

Thermal performance is critical for power drivers in compact ECUs. The VND7050AJ12TR boasts a typical thermal resistance junction-to-ambient of 59°C/W (on a two-layer board) and down to 25°C/W on optimized four-layer layouts, ensuring safe operation in high-power applications.

Built-in protection features and diagnostic capabilities of the VND7050AJ12TR

Advanced on-chip diagnostics and protection schemes differentiate the VND7050AJ12TR. These include:

Load current limitation to prevent overstress during overloads or short circuits to ground, with real-time power-limiting control to handle fast transient events.

Overtemperature and overvoltage shutdown for both channels, reliably protecting the device and downstream circuitry.

Under-voltage detection for robust operation during cranking or unstable supply conditions.

Open-load detection in both on and off states, assisting system diagnostics when loads disconnect or wiring faults occur.

Diagnostic feedback via the CurrentSense pin, enabling engineers to monitor channel-specific current, detect fault conditions (overload, short to Vcc, open-load), and support predictive maintenance strategies.

Loss of ground and reverse battery protection, adaptable through external diodes or MOSFETs as detailed in application notes, shielding both the device and the broader ECU architecture from common automotive power faults.

Usage examples and recommended circuitry for the VND7050AJ12TR

The VND7050AJ12TR is purpose-built for complex automotive switching applications. Example use cases include:

Driving high-power filament lamps (up to 27W nominal) or sophisticated multi-channel LED arrays, where diagnostic feedback ensures load integrity and safety monitoring.

Controlling solenoids, inductive relays, and electric actuator loads with built-in demagnetization energy withstand capability (up to 30mJ per channel).

Implementation in body control modules where cold-cranking resilience, immunity to supply disturbances, ESD robustness, and minimal quiescent draw are critical.

Integrating with automotive MCUs, thanks to logic input compatibility and multiplexed diagnostic outputs, streamlining wiring and simplifying board space allocation.

The comprehensive application documentation for the VND7050AJ12TR includes circuit-level reference networks for MCU I/O protection, external ground protection (using diodes or MOSFETs), and optimized PCB layouts for heat dissipation and noise immunity.

PCB installation, packaging, and layout recommendations for the VND7050AJ12TR

The PowerSSO-12 surface-mount package maximizes board density and thermal efficiency. Key layout considerations include:

Maximizing PCB copper area around output pins to enhance heat dissipation, especially under continuous high current operation.

Adhering to footprint recommendations as per JEDEC JESD 51-5 (2-layer) and JESD 51-7 (4-layer) standards for accurate thermal assessment.

Following suggested connection schemes for unused pins and ensuring correct placement of sense, enable, and select lines to facilitate diagnostics and future platform upgrades.

Observing industry-standard MSL 3 (168 hours) procedures for moisture-sensitive handling and RoHS/REACH environmental compliance.

Alternative or substitute options for the VND7050AJ12TR

Engineers seeking alternatives to the VND7050AJ12TR in the STMicroelectronics high-side driver portfolio may evaluate the following:

VND7020AJ12: Features similar dual high-side capability with variations in current limit and on-state resistance, suitable for similar lamp/actuator control tasks.

VND5160J or VNQ7020AJ: Offer differing combinations of channel count, output capacity, and package, allowing for adaptation to specific system requirements.

During product selection, careful evaluation of current rating, diagnostic features, package compatibility, and application-specific requirements is paramount to ensure seamless drop-in replacement or system migration.

Conclusion

The VND7050AJ12TR from STMicroelectronics delivers an exceptionally robust, diagnostically rich, and thermally efficient solution for next-generation automotive switching and load control applications. Its dual-channel architecture, comprehensive protection suite, cold-cranking performance, and sophisticated analog/logic interfacing capabilities make it well-suited for demanding environments—enabling engineers and procurement teams to meet modern automotive safety, reliability, and diagnosability standards. Thoroughly supported by technical documentation, reference designs, and application guidance, the VND7050AJ12TR constitutes a strategic choice for the evolving landscape of automotive electronics design.
