STMicroelectronics STTH1R06A

Overview of the STMicroelectronics STTH1R06A Ultrafast Rectifier

The STTH1R06A from STMicroelectronics is a 600 V, 1 A ultrafast Turbo 2 rectifier designed specifically to address demanding needs in power electronics. This surface-mount device stands out for its high voltage rating and fast switching capabilities, making it well-suited for boosting efficiency in power factor correction (PFC) circuits, free wheeling diodes in switch-mode power supplies, and other power conversion solutions where switching and conduction losses need to be minimized.

Main Features of the STMicroelectronics STTH1R06A

Engineers benefit from the STTH1R06A’s advanced Turbo 2 technology which delivers ultrafast switching and very low reverse recovery current. This minimizes energy dissipation during transitions, allowing for efficient high-frequency operation and reduced electromagnetic interference (EMI). The device is distinguished by its low thermal resistance, enabling reliable performance under high load or elevated ambient temperatures without excessive thermal buildup. These characteristics directly address common bottlenecks in modern switching power designs.

Electrical and Thermal Specifications of the STMicroelectronics STTH1R06A

The STTH1R06A supports a maximum repetitive reverse voltage of 600 V and continuous forward current of 1 A. Its conduction losses can be evaluated using the formula: P = 1.03 IF(AV) + 0.27 IF(RMS)^2, supporting accurate thermal management in design calculations. The device is provided with robust thermal resistance characteristics that facilitate efficient dissipation of heat from junction to ambient or case. Thermal behavior can be optimized by adjusting the copper surface area under each lead, as indicated by typical application curves.

Switching and Dynamic Properties of the STMicroelectronics STTH1R06A

Dynamic switching parameters are critical in high-frequency applications. The STTH1R06A exhibits negligible reverse recovery time and low peak reverse recovery current, even under rapid di/dt conditions. Its softness factor and recovery charge remain favorable across a broad range of junction temperatures, ensuring reliable performance in circuits sensitive to noise and switching transients. Forward voltage drop remains low across operational current ranges, further contributing to system efficiency.

Mechanical Construction and Packaging Options for the STMicroelectronics STTH1R06A

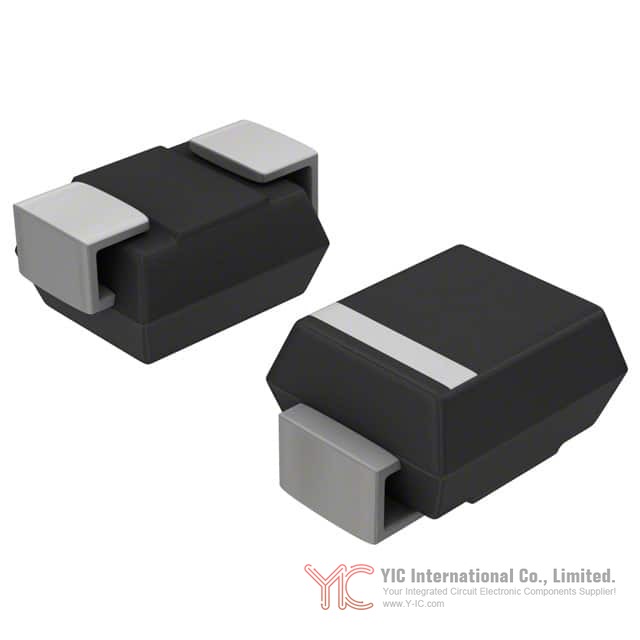

Recognizing the varied requirements of PCB layouts, the STTH1R06A is available in multiple industry-standard packages including SMA, SMB, and DO-41. Each variant is designed to ensure optimal thermal dissipation and mounting compatibility, with clear footprint dimensions provided for accurate board design. Lead-free packages and the use of UL94 V0-rated epoxy align with contemporary reliability and safety standards.

Environmental Standards and Safety Aspects of the STMicroelectronics STTH1R06A

STTH1R06A is compliant with STMicroelectronics ECOPACK® environmental program, providing assurance regarding lead-free status and adherence to RoHS and other global safety regulations. This compliance is paramount for manufacturers serving global markets, including those with stringent environmental control and product lifecycle management requirements. Engineers should also consider operational limitations for non-automotive environments and avoid deploying STTH1R06A in applications where personal safety or system integrity depends on continuous fault-free performance, such as medical or aerospace.

Common Use Cases and Application Examples for the STMicroelectronics STTH1R06A

The STTH1R06A’s combination of high voltage tolerance and ultrafast recovery suits it ideally for use as a boost diode in active PFC circuits or as a free wheeling diode in various power switching stages. Engineering teams designing switch-mode power supplies, industrial motor controllers, and advanced consumer electronics can leverage the device to minimize energy losses and thermal stress. The low-to-medium current rating enables deployment in compact designs while the ultrafast recovery facilitates tight regulation and clean operation in high-frequency switching environments.

Alternative or Replacement Models Comparable to the STMicroelectronics STTH1R06A

For engineers seeking form-fit-function alternatives, attention should be given to the key parameters of voltage rating, forward current, reverse recovery time, and package compatibility. Devices such as the STTH1R06 (through-hole variant), and other Turbo 2 ultrafast rectifiers from STMicroelectronics, provide viable replacements depending on specific circuit requirements and physical design constraints. When specifying replacements, always validate that package type, lead configuration, and switching speed match those required by the target application to ensure seamless integration and reliable performance.

Conclusion

: Selecting STTH1R06A STMicroelectronics for engineering success

In summary, the STTH1R06A is a versatile ultrafast rectifier optimized for high-efficiency power switching applications. Its robust electrical, thermal, and dynamic features, coupled with flexible packaging and comprehensive environmental compliance, make it an excellent choice for engineers and procurement teams aiming to enhance system performance and efficiency. Careful consideration of the product’s characteristics and its fit within a broader design strategy will ensure reliable operation and long-term value in power electronic projects.
