STMicroelectronics STM32MP157CAC3

Overview of the STM32MP157CAC3 Product

The STM32MP157CAC3, part of the STM32MP1 microprocessor series from STMicroelectronics, is a high-performance, highly integrated embedded MPU optimized for demanding industrial, consumer, medical, and white goods applications. Operating at up to 650 MHz, the STM32MP157CAC3 is centered on a dual-core ARM Cortex-A7 and an ARM Cortex-M4, supporting extensive connectivity, advanced analog functions, and embedded graphical processing. Available in a 361-ball TFBGA package measuring 12 x 12 mm, this device is engineered for system designers seeking scalable performance while minimizing power consumption, pin count, and board space.

STM32MP157CAC3 Block Diagram and Functional Structure

At its core, the STM32MP157CAC3 integrates a dual ARM Cortex-A7 subsystem, an ARM Cortex-M4 with FPU, a 3D Vivante GPU with OpenGL ES 2.0 support, and a sophisticated hierarchy of memory and security controllers. The device features two main bus matrices: a 64-bit AXI matrix for high-bandwidth interconnect (up to 266 MHz) and a 32-bit AHB matrix (up to 209 MHz), orchestrating data flow between processing units, memory, and peripherals. The comprehensive block diagram (refer to the STM32MP1 family datasheet) highlights the close coupling of processing cores, hardware cryptography, memory controllers, interface bridges, DMA controllers, and system timers.

STM32MP157CAC3 Core Architecture and Processing Features

The STM32MP157CAC3 provides a dual-core ARM Cortex-A7, each core equipped with 32 KB instruction/data L1 cache and a shared 256 KB L2 cache. The subsystem is characterized by its support for ARM TrustZone, NEON SIMD, hardware virtualization, and an efficient 8-stage pipeline, delivering robust single-thread and multicore performance suitable for compute-intensive edge devices.

On the real-time front, the Cortex-M4 (up to 209 MHz, single-precision FPU, and MPU) offers binary compatibility with the Cortex-M3, ensuring real-time responsiveness, offloading time-critical tasks from the main application processors.

The Vivante GPU accelerates industrial HMI and graphical interfaces, enabling up to 26 Mtriangle/s and 133 Mpixel/s throughput. Its hardware supports OpenGL ES 2.0/1.1, OpenVG, and a programmable pipeline for flexible UI/UX design.

Memory Architecture and Interfaces in STM32MP157CAC3

The STM32MP157CAC3 presents a versatile memory architecture. Externally, it supports up to 1 GByte of DDR3/DDR3L, LPDDR2, or LPDDR3 via a flexible DDRCTRL+DDRPHYC interface, with programmable QoS, power-saving entry/exit, and TrustZone address filtering for memory-mapped security. Dual mode Quad-SPI interfaces and a flexible memory controller (FMC) provide further expansion for NAND, NOR, PSRAM, and SLC memory types, supporting 8 and 16-bit wide buses.

Internally, 708 KB SRAM is distributed among the system (256 KB AXI SYSRAM), MCU (384 KB AHB SRAM), and backup domains. Specialized retention and backup RAM ensure data integrity across power modes and battery-backed RTC operation.

Security, Reliability, and Power Management of STM32MP157CAC3

To address embedded security threats, the STM32MP157CAC3 encompasses hardware secure boot, ARM TrustZone technology, tamper detection, OTP (One-Time Programmable) fuses, cryptographic accelerators (AES, TDES, SHA, HMAC), and isolated resource domains for the embedded Cortex-M4. Active and passive secure I/Os, secure DMA, and robust privilege separation support platform security for IoT, industrial, and medical applications.

Power management is robust, supporting I/O domains from 1.71 V to 3.6 V, on-chip LDOs for major rails, and a backup regulator for ultra-low-power operation. Standby modes drive supply current as low as 2 μA (typ, with no RTC), while power-down managers ensure brown-out, power-on, and battery switchover reliability. Multiple oscillators (HSI, CSI, LSI, and HSE/LSE crystals) and up to six PLLs provide granular clock management for balancing performance and consumption.

Built-in Peripherals and Input/Output Connections for STM32MP157CAC3

System designers benefit from up to 37 advanced communication interfaces, 176 general-purpose I/O pins, and extensive analog, timer, and multimedia resources. Some interface highlights include:

6 × I²C (up to 1 Mbit/s, SMBus and PMBus support)

4 × UART + 4 × USART (12.5 Mbit/s, with ISO7816, LIN, IrDA, and SPI mode)

6 × SPI with I²S audio class accuracy

4 × SAI (multi-standard audio, up to 192 kHz, PDM interface for up to 8 microphones)

SPDIF Rx (4 inputs, surround and stereo)

HDMI-CEC for consumer control

3 × SDMMC/eMMC/SDIO, up to 208 MB/s (8-bit mode)

2 × CAN FD (one with time-triggered support)

2 × USB 2.0 high-speed/Full-Speed (Host/OTG, embedded PHYs)

10/100M or 1G Ethernet with IEEE 1588 (AVB, multi-queue DMA)

8to 14-bit digital camera interface (up to 140 MB/s)

Rich timer resources: 2 × 32-bit, 12 × 16-bit, advanced motor control, low-power, RTC, three watchdogs

Analog integration includes dual 16/14/12-bit ADCs (up to 4.5 Msps), dual 12-bit DACs, a digital filter (DFSDM) for sensor processing, and programmable reference sources (1.5, 1.8, 2.048, and 2.5V).

Debug and trace facilities leverage ARM CoreSight, with JTAG and SWD support, plus up to 8 KB of embedded trace buffer memory. GPIOs support alternate functions, fast toggling, and security assignments (TrustZone-aware). Hardware semaphores and interprocessor communication controllers facilitate multicore OS and system partitioning.

Main Electrical Specifications of the STM32MP157CAC3

The STM32MP157CAC3 is designed for robust electrical performance:

Nominal operating supply: VDD 1.71 V to 3.6 V; VDDCORE 1.18 V–1.38 V

Maximum core frequency: 650 MHz (Cortex-A7), 209 MHz (Cortex-M4)

Ultra-low standby current: as low as 2 μA

Industrial ambient temperature: up to +125 °C (TJ), with guaranteed min/max parameters over full range

Absolute maximum voltage ratings: All supply and I/O pins must remain within defined limits; resilience to ESD (JS-001/JS-002)

I/O drive: GPIOs can source/sink up to ±20 mA (with relaxed VOH/VOL); all I/Os are CMOS and TTL compliant

Wakeup times, power sequencing, and decoupling capacitor recommendations are critical for reliable board-level integration

Clocks: Support for HSE/LSE external oscillators (crystals), with detailed startup/EMC/EMI guidance

System Integration, Packaging, and Mechanical Information for STM32MP157CAC3

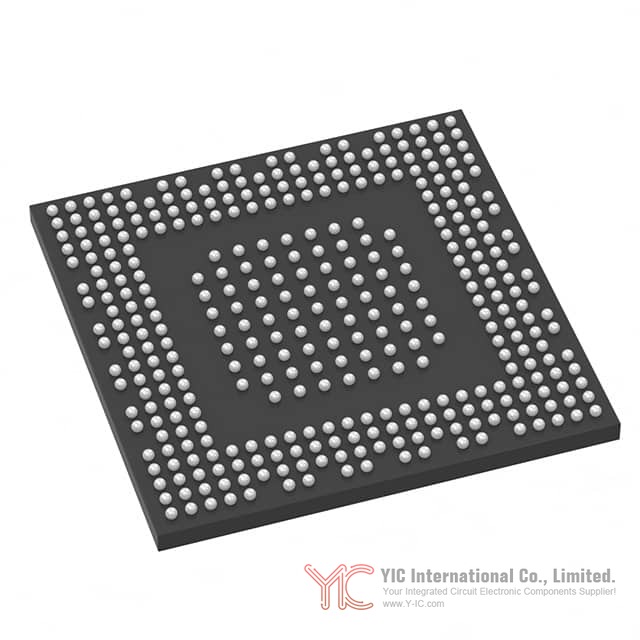

The STM32MP157CAC3 is available in a 361-ball TFBGA (12 x 12 mm, 0.8 mm pitch) package optimized for board-level routing and high-density integration. Complete pinout and alternate function tables are documented for flexible pin utilization in complex, multi-interface embedded systems. Careful attention to supply domain decoupling, PCB layout, and EMI mitigation is advised for successful system-level design.

Alternative or Replacement Options for the STM32MP157CAC3

For design scalability or in the case of supply chain disruptions, the following models within the STM32MP1 family are potential alternatives:

STM32MP157F series devices: Offer higher maximum Cortex-A7 frequency (up to 800 MHz) with similar peripheral sets and compatibility

STM32MP157CAB3, STM32MP157CAA3: Package variations (BGA, LFBGA, TFBGA, with differing ball counts or size) tailored for different layout constraints

STM32MP153/151 series: For applications not requiring all features (e.g., reduced peripheral set, no GPU) but seeking pin/peripheral compatibility

When selecting a replacement, careful consideration must be given to core speed, memory support, integrated GPU, software compatibility, and pin/package compatibility based on the application’s requirements.

Conclusion

The STM32MP157CAC3 from STMicroelectronics represents a powerful and versatile embedded MPU platform, integrating multicore ARM computing, flexible memory architecture, rich multimedia, security, and an abundance of industrial and consumer interfaces. Its dense integration in a compact BGA package makes it ideal for applications demanding advanced graphics, connectivity, security, and real-time processing. By understanding its architecture, electrical profile, and system-level integration requirements, engineers and procurement teams can effectively evaluate the STM32MP157CAC3 for use in next-generation embedded system platforms. Consider potential replacements in the same series to enable supply flexibility and scalability in long-term product designs.
