STMicroelectronics STM32L031G6U6TR

Product Summary

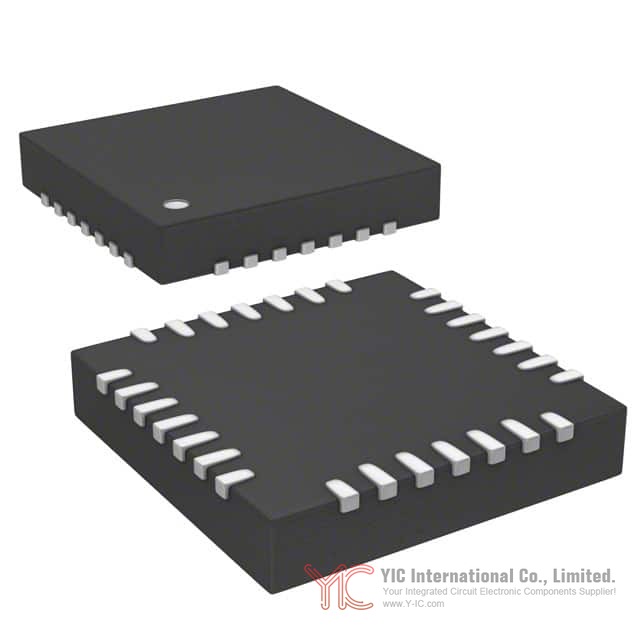

The STM32L031G6U6TR is an ultra-low-power microcontroller unit (MCU) produced by STMicroelectronics, positioned within the STM32L031x4/6 family. It is based on the ARM Cortex-M0+ 32-bit RISC core, capable of operation up to 32 MHz. Targeted at applications demanding strong energy efficiency with reliable performance in cost-sensitive sectors, this MCU integrates 32 KB of Flash program memory, 8 KB of SRAM, and 1 KB of EEPROM. It is delivered in a space-saving 28-pin UFQFPN (4x4 mm) package, making it suitable for compact designs, from industrial sensors to portable consumer electronics.

System Architecture and Key Functions of STM32L031G6U6TR

At the heart of the STM32L031G6U6TR lies the ARM Cortex-M0+ core, designed for highly efficient code execution in embedded systems. The core supports 0.95 DMIPS/MHz and provides hardware multiply functionality, contributing to low power requirements without sacrificing computing capability. A 2-stage pipeline architecture and integrated Nested Vectored Interrupt Controller (NVIC) enable rapid, deterministic interrupt handling. The MCU also supports serial wire debugging for seamless development and troubleshooting.

STM32L031G6U6TR’s Ultra-Low Power Performance

A defining feature of the STM32L031G6U6TR is its advanced power management. The device supports a supply voltage from 1.65 V to 3.6 V and can operate across an extended temperature range of -40°C to 125°C, ensuring resilience in both industrial and outdoor scenarios. Power consumption profiles are highly granular, with seven selectable low-power modes covering sleep, low-power run, low-power sleep, stop (with or without RTC), and standby (with or without RTC). In run mode, the device achieves as little as 76 µA/MHz; standby mode can reach down to just 0.23 µA. Wakeup times as low as 5 µs make STM32L031G6U6TR advantageous for event-driven systems requiring instant responsiveness with minimal energy draw.

STM32L031G6U6TR Analog and Digital Interface Options

The STM32L031G6U6TR is well-equipped for mixed-signal applications, featuring a 12-bit ADC supporting rates up to 1.14 Msps and up to 10 analog channels, with hardware oversampling for up to 16-bit effective resolution. Two ultra-low-power comparators offer rail-to-rail input configurations and flexible thresholding, with the ability to trigger wakeups from stop mode, enhancing suitability for battery-powered or energy-harvested systems.

For digital connectivity, integrated communication interfaces include one I2C, one SPI (up to 16 Mbps), one USART, and a low-power UART (LPUART). DMA support across peripherals further aids in offloading data transfer tasks from the CPU, improving overall system efficiency.

STM32L031G6U6TR Memory Setup and Data Preservation

The STM32L031G6U6TR offers a combination of non-volatile and volatile memory options. Central to the device is 32 KB of Flash memory with error correction code (ECC), enabling robust code storage and execution. Supporting operational flexibility, 8 KB of SRAM facilitates quick data access at full CPU speed, while 1 KB of ECC-protected data EEPROM allows for configuration or state retention between power cycles. The device also features a 20-byte backup register, valuable for storing critical parameters during standby or system resets. Memory protection mechanisms extend to sector-based write/read restrictions and multi-level debug/readout protection, making the MCU compliant with security requirements in industrial and consumer designs.

STM32L031G6U6TR Pin Configuration and Packaging Variants

The STM32L031G6U6TR comes in a 28-pin UFQFPN package (4x4 mm), optimized for designs with stringent space constraints. Each pin can be flexibly assigned as general-purpose I/O, analog input, or alternate peripheral function, as dictated by the application's needs. High current drive capability and optional configuration as push-pull or open-drain outputs enhance its suitability for driving external circuits directly. Alternate function remapping is supported via dedicated system configuration registers, and input protection measures help prevent inadvertent damage during handling or operation.

STM32L031G6U6TR Electrical Specifications and Operating Conditions

Robust electrical characteristics underpin STM32L031G6U6TR's reliability. Operating voltage spans 1.65 V to 3.6 V for all logic and analog subsystems, with built-in brownout reset (BOR) and programmable voltage detector (PVD) features safeguarding against supply irregularities. Current injection and latch-up immunity have been tested to comply with JEDEC and IEC standards, and the device supports all standard I/O levels (CMOS, TTL). Internal voltage references for ADC and comparators are individually factory-calibrated, ensuring measurement repeatability in demanding applications.

Startup times are typically 3.3 ms with BOR activated and can be reduced to 1 ms in specific configurations. Extensive tables detail maximum currents for each I/O and the total device, serving as essential guidance for hardware engineers during board layout and system power budgeting.

Integrated Clock Management in STM32L031G6U6TR

The MCU offers a range of internal and external clock sources, including a multi-speed internal oscillator (MSI, 65 kHz to 4.2 MHz), a high-speed internal RC oscillator (HSI, 16 MHz), and dedicated low-speed external crystal oscillator (LSE, 32.768 kHz). PLL support enables flexible scaling of CPU and peripheral clocks. A clock security system provides automatic failover from external to internal sources in case of crystal failure, and the clock controller features per-peripheral gating and prescalers—key elements in minimizing power consumption. Microcontroller clock output (MCO) functionality further enables synchronization of external devices.

STM32L031G6U6TR Functional Safety and EMC/EMI Guidelines

For designs where functional safety and electromagnetic compatibility are paramount, the STM32L031G6U6TR has been characterized to IEC 61000 and 61967 standards for EMC and EMI. Electrostatic discharge (ESD) protection, latch-up resistivity, and programmable reset circuits contribute to resilience against spurious events. The internal CRC engine provides run-time integrity verification of flash memory and communication data, supporting system self-test routines in accordance with EN/IEC 60335-1.

STM32L031G6U6TR Integration Cases for Engineers

The flexibility, feature set, and cost profile of the STM32L031G6U6TR make it well suited to metering (gas/water), remote sensors, health and fitness devices, alarm systems, and user interfaces. For instance, a wearable medical sensor can leverage low-power analog comparators for vital signal threshold monitoring and transition immediately into run mode upon detection, while permanent data such as calibration constants can survive deep sleep via EEPROM and backup register retention. In industrial meters, robust voltage and reset management ensure device uptime in harsh environments—architects should pay careful attention to supply ramp rates and reset threshold byte configurations for optimum operation.

Comparable or Substitute Choices for STM32L031G6U6TR

When project requirements change or supply chain challenges arise, alternatives in the STM32L031x4/6 series might serve as direct replacements, thanks to STMicroelectronics' strong commitment to pin-to-pin and software compatibility across the range. Models such as STM32L031F6U6TR, STM32L031K6T6, and STM32L031C6T6 offer different memory sizes, packages (LQFP, TSSOP, WLCSP), or I/O counts, enabling designers to scale up or down without major hardware changes. For even broader compatibility, STMicroelectronics maintains pin-compatibility within STM32L0 and STM32F0/F1 series MCUs. Engineers are advised to analyze I/O availability, package, and peripheral support tables in light of application demands before selecting replacements.

Conclusion

The STM32L031G6U6TR provides a compelling combination of ultra-low-power operation, robust analog/digital integration, and flexible memory and packaging options, all engineered to meet the needs of modern, cost-driven embedded applications. Its thoughtful architecture ensures that engineers can perform precise resource optimization and system protection, while the family’s underlying compatibility enhances long-term design scalability. When projects demand a streamlined, energy-conscious MCU solution with quality peripherals and proven reliability, STM32L031G6U6TR stands out as a highly competitive candidate.
