STMicroelectronics STM32F469BGT6

Introduction to STM32F469BGT6 Series

The STM32F469BGT6 microcontroller, part of STMicroelectronics’ STM32F4 series, is a powerful single-core MCU built on the ARM Cortex-M4 architecture. Designed to support demanding embedded applications, it operates at up to 180 MHz and features a rich selection of peripherals, memory, and graphical interfaces. The device is supplied in a 208-LQFP (28 x 28 mm) package, making it suitable for complex boards requiring high pin counts and advanced connectivity. The STM32F469BGT6 is well-suited for scenarios such as industrial automation, medical equipment, consumer electronics, and IoT gateway devices, where real-time performance and multimedia capabilities are critical.

Core Design Highlights of STM32F469BGT6

At the core of the STM32F469BGT6 lies an ARM 32-bit Cortex-M4 CPU with a floating-point unit (FPU) and adaptive real-time (ART) accelerator, enabling zero-wait state execution from flash memory even at maximum frequency. The device achieves up to 225 DMIPS (Dhrystone 2.1), supporting DSP instructions for signal processing tasks and offering a memory protection unit for secure application deployment. The microcontroller integrates state-of-the-art debug and trace facilities, including SWD/JTAG, trace macrocell, and embedded trace capabilities, which streamline embedded software development, performance tuning, and reliability testing.

RAM, Flash, and Data Storage Features in STM32F469BGT6

With 1 MB of embedded flash memory organized in dual banks, the STM32F469BGT6 supports read-while-write operations—allowing real-time systems to update firmware or log data without interrupting main program execution. It includes up to 384 KB of SRAM, supplemented by 64 KB of core-coupled memory (CCM) and an additional 4 KB backup SRAM for retention during VBAT operation. For external expansion, the flexible memory controller (FMC) accommodates a variety of memories: SRAM, PSRAM, SDRAM, NOR/NAND flash. A dedicated Quad-SPI interface enables high-speed serial memory connectivity, ideal for bootloaders or large graphics assets. The inclusion of 512 bytes of OTP memory enhances device configuration and security.

Built-in Interfaces and Communication Methods for STM32F469BGT6

The STM32F469BGT6 stands out among microcontrollers for its wide array of integrated peripherals. Key features include up to 161 I/O ports with interrupt capability and high-speed operation up to 90 MHz. Communication interfaces provide robust options: three I2C with SMBus/PMBus, four USARTs and four UARTs, six SPI (two support full-duplex audio), one SAI (Serial Audio Interface), two CAN (2.0B Active), SDIO for SD/MMC cards, and both USB 2.0 full-speed and high-speed device/host/OTG controllers (on-chip PHY and ULPI interface). The on-board 10/100 Ethernet MAC with DMA and IEEE1588v2 hardware support positions the STM32F469BGT6 for industrial networking and time-sensitive communication. Further, true random number generation and advanced timers (up to 17, including watchdogs and pulse counters) facilitate secure and precise operation for embedded control.

Image Rendering and Audio Support in STM32F469BGT6

A distinctive aspect of the STM32F469BGT6 is its specification for multimedia-rich applications. The MCU integrates the Chrom-ART Accelerator (DMA2D), a hardware graphics accelerator that offloads graphical processing from the CPU, resulting in smooth, responsive user interfaces and reduced system latency. The built-in LCD-TFT controller supports XGA resolutions, and a MIPI DSI host enables advanced display output up to 720p at 30 Hz. The device features a parallel camera interface capable of handling up to 54 MB/s, addressing requirements for image capture and real-time video processing. With dedicated audio PLLs and interfaces, including integrated DACs and ADCs, the STM32F469BGT6 is prepared for audio playback, voice recognition, and interactive control panels.

Energy Efficiency and Sleep Modes in STM32F469BGT6

Power efficiency and flexibility are central to the STM32F469BGT6 feature set, with operation voltage ranging from 1.7 V to 3.6 V. The device offers multiple low-power modes: Sleep, Stop, and Standby, allowing designers to tailor power consumption to application needs. Dedicated supervisors manage power-on reset (POR), power-down reset (PDR), brown-out reset (BOR), and programmable voltage detection (PVD), ensuring safe startup and operation under varying conditions. The integrated real-time clock (RTC) supports subsecond accuracy and calendar functions, benefiting battery-powered applications. The VBAT supply pin enables RTC and backup SRAM retention without main power, useful in metering, logging, and portable instrument scenarios.

Packaging, Compliance Standards, and Physical Dimensions for STM32F469BGT6

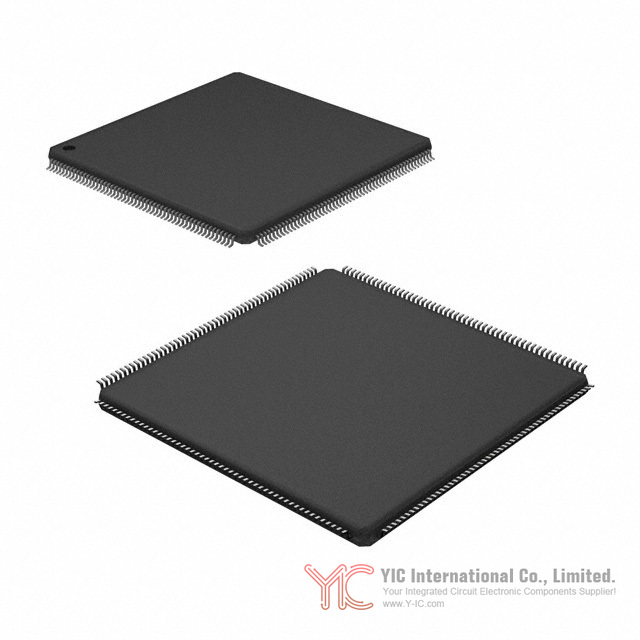

The STM32F469BGT6 comes in a 208-pin LQFP package, with dimensions of 28 x 28 mm, designed for surface mount assembly and high-reliability deployments. The device is compliant with RoHS3 and unaffected by REACH environmental restrictions, and possesses a Moisture Sensitivity Level (MSL) of 3 (168 hours). Its wide operating temperature range from -40°C to 85°C supports deployment in industrial and outdoor environments. Thermal and mechanical specifications conform to established industry standards, aiding integration into existing PCB designs.

Alternative or Substitute Models to STM32F469BGT6

For engineering teams seeking alternatives or planning for second-source strategies, STMicroelectronics offers several variants within the STM32F469xx family, including STM32F469AE, STM32F469AG, STM32F469AI, STM32F469BE, STM32F469BG, STM32F469BI, STM32F469IE, STM32F469IG, STM32F469II, STM32F469NE, STM32F469NG, STM32F469NI, STM32F469VE, STM32F469VG, STM32F469VI, STM32F469ZE, STM32F469ZG, and STM32F469ZI. These models differ by package size, pin count, and sometimes memory configuration, enabling tailored selection according to board layout, peripheral requirements, or cost optimization. Engineers may cross-reference package-specific variants (UFBGA, TFBGA, WLCSP) and consider those with expanded flash or SRAM where application needs dictate.

Conclusion

: STM32F469BGT6 for Engineering Applications

The STM32F469BGT6 MCU presents a comprehensive solution for embedded systems requiring high performance, advanced graphics, robust connectivity, and flexible power management. With its extensive peripheral set, memory architecture, and multimedia accelerators, it is positioned for applications that demand both technical breadth and depth. Engineering professionals and procurement teams will find the STM32F469BGT6, together with its related product variants, an effective building block for new designs and legacy system upgrades alike—delivering reliability, scalability, and forward-looking functionality.
