STM32F469AIY6TR Microcontroller Overview by STMicroelectronics

STMicroelectronics’ STM32F469AIY6TR is part of the STM32F469xx family of high-performance microcontrollers, built around the 32-bit ARM Cortex-M4 core with integrated Floating Point Unit (FPU). Targeted at complex embedded systems, this device delivers up to 180 MHz CPU speed and up to 225 DMIPS (Dhrystone 2.1), supporting advanced signal processing, graphical user interfaces, and real-time control. The STM32F469AIY6TR features 2MB of embedded flash, 384 KB SRAM + 4KB backup RAM, and is offered in a compact 168-ball WLCSP package (4.89 x 5.69 mm). Its extensive set of peripherals and memory, as well as robust connectivity options, position it for demanding applications in industrial control, medical equipment, automotive systems, and high-end consumer devices.

Key Characteristics of the STM32F469AIY6TR

At its heart is the ARM Cortex-M4 CPU with FPU, supporting full DSP instruction and single-precision floating-point computation, critical for digital signal processing, data analytics, and control algorithms. Enhancements such as the Adaptive Real-Time (ART) accelerator enable near-zero wait-state flash execution, maximizing performance at high clock speeds.

The STM32F469AIY6TR integrates a Memory Protection Unit (MPU), facilitating robust partitioning and safeguarding of critical code – crucial for RTOS-based and safety-certified systems. The device is compliant with standard ARM debugging protocols, featuring Serial Wire Debug (SWD), JTAG, and Embedded Trace Macrocell for advanced debugging and real-time trace visibility.

STM32F469AIY6TR Memory Structure

The STM32F469AIY6TR sets itself apart with abundant on-chip memory resources. Its 2MB flash is organized into dual banks, enabling read-while-write operation, and supports code, data storage, and redundancy for fail-safe operation. The SRAM allocation includes 384KB system RAM, with 64KB Core Coupled Memory (CCM) for ultra-fast CPU access during demanding computations.

A 4KB backup SRAM plus 20 backup registers are retained in low-power or battery modes (via the dedicated VBAT pin), ensuring state, logs, or configuration data continuity. The Flexible Memory Controller (FMC) and Quad-SPI interface empower seamless attachment of external static/dynamic RAM, NOR and NAND flash, and expand code/data space, critical for resource-intensive applications such as graphics or data acquisition.

STM32F469AIY6TR Peripheral Functions and Interfaces

The peripheral suite is among the most complete in the STM32 universe. It boasts three 12-bit ADCs (2.4 MSPS), two 12-bit DACs, up to 17 timers (including advanced motor-control PWM), and a true random number generator. Communication interfaces abound, with:

Up to three I2C (SMBus/PMBus)

Four USARTs and four UARTs for multi-protocol serial communication

Six SPI (with muxed full-duplex I2S for audio)

One SAI for advanced digital audio

Two CAN controllers (2.0B active)

SDIO MMC card/SD-card host interface

For connectivity, STM32F469AIY6TR delivers dual USB OTG (HS/FS with PHY and DMA), 10/100 Ethernet MAC (IEEE 1588v2 hardware timestamping), and a parallel camera interface for real-time video/data capture.

Graphical performance is enabled by the LCD-TFT controller (up to XGA), MIPI DSI display host (up to 720p), and Chrom-ART hardware graphics accelerator (DMA2D), allowing fluid GUIs with minimal CPU overhead. Engineers developing HMI panels, kiosks, or multimedia systems gain both hardware acceleration and flexible interface options.

Power Efficiency and Low-Power Operation in STM32F469AIY6TR

Robust power management schemes cater to both dynamic and static efficiency. The STM32F469AIY6TR is operational from 1.7V to 3.6V, with special USB and DSI supply rails for dedicated peripherals. Designers can select among sleep, stop, and standby low-power modes, tailoring system responsiveness and consumption per application requirements.

In Standby and VBAT modes, only the backup domain (RTC, backup SRAM/registers) remains powered, essential for time-keeping, state retention, and ultra-low-power devices. The device supports programmable brown-out, power-down, and voltage detection logic, with options for hardware or software supervision. When the internal voltage regulator is bypassed (via BYPASS_REG), external 1.2V sources can drive the core logic, valuable in custom power delivery scenarios.

STM32F469AIY6TR Package Options and Pin Configuration

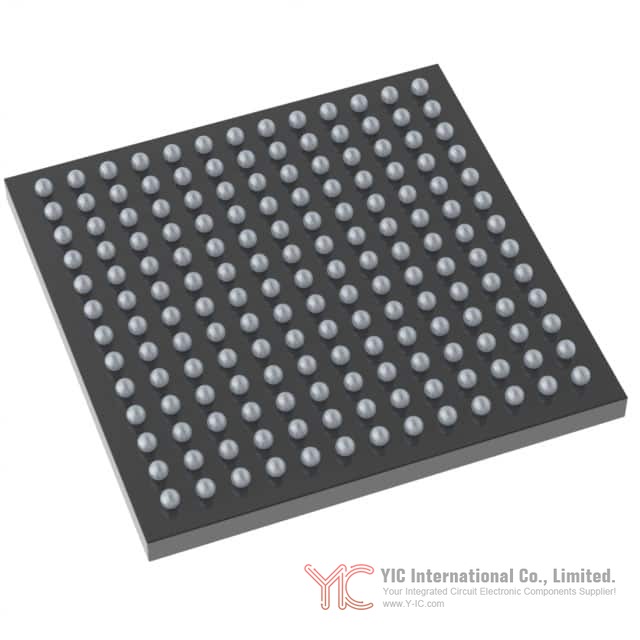

The STM32F469AIY6TR is delivered in a wafer-level chip-scale package (WLCSP) with 168 balls, optimizing space for advanced, densely-packed PCBs. Designers benefit from the package’s minimal outline (4.89 x 5.69 mm, 0.4 mm pitch), facilitating miniaturized, wearable, or portable electronics. Engineers must consult official pin tables and layout notes to ensure robust signal integrity and thermal management, especially in high-speed or high-I/O configurations.

The family offers multiple package options, with certain pinout differences; engineers migrating from other STM32F4xx devices need to confirm compatibility, especially for LQFP100/144/176/208 and UFBGA variants.

STM32F469AIY6TR Electrical Specifications and PCB Layout Recommendations

Electrical design must respect the absolute maximum ratings and recommended operating conditions. All supply pairs (VDD/VSS, VDDA/VSSA, etc.) require localized ceramic decoupling for stable operation. Output drive capability varies with pin; most GPIOs deliver up to ±20mA, but certain pins (e.g., PC13-15, PI8) should be limited to ±3mA at reduced speed/load.

Peripheral current consumption, startup times, and power dissipation are detailed in the datasheet tables. Notably, when analog subsystems are active (ADC/DAC/HSE/LSE), additional current draws must be budgeted. Fast I/O handling (up to 90 MHz), low-EMI attributes, and recommended layout strategies are essential in industrial and high-reliability contexts.

The internal oscillators (HSI, LSI) provide accurate startup and frequency stability across -40°C to +105°C. For USB or Ethernet applications, precise PLL and clock setup must be performed, as outlined, to guarantee protocol compliance.

Alternative or Substitute Devices for STM32F469AIY6TR

When evaluating alternatives to the STM32F469AIY6TR, engineers may consider other STM32F469xx variants, such as different package counts (LQFP144, UFBGA176/169, TFBGA216, etc.), with feature sets tailored to system size and peripheral needs. For reduced graphical or connectivity requirements, adjacent STM32F429xx and STM32F479xx devices provide similar cores and memory, but careful attention is required regarding pinout compatibility, package electrical ratings, and peripheral presence.

It is important to recognize that certain packages in the STM32F469xx family have incompatible pinouts with other STM32F4 devices—the LQFP100/144/176/208 and UFBGA169/176 must be checked for board-level migration. Prior to selecting a substitute, ensure comprehensive matching of system clock domain, FMC/QUADSPI connectivity, backup domain, and graphical acceleration features.

Conclusion

: STM32F469AIY6TR Selection Considerations

The STM32F469AIY6TR microcontroller by STMicroelectronics stands as a robust solution for advanced embedded systems, integrating high computational performance, rich peripherals, and flexible graphics capabilities into a compact package. For engineers and procurement professionals, it presents a versatile, future-proof platform for projects requiring demanding user interfaces, real-time processing, and broad connectivity.

Critical considerations in design include the proper configuration of memory and power domains, meticulous PCB layout for high-speed interfaces, and thorough vetting of electrical ratings and package compatibility. When alternative or replacement models are considered, attention must be paid to package pinouts, feature-completeness, and electrical requirements to ensure seamless integration and reliable operation.

With its comprehensive feature set and proven architecture, the STM32F469AIY6TR remains a go-to choice for next-generation industrial, medical, and consumer device designs, delivering a blend of performance, flexibility, and integration well-suited for the challenges of modern embedded engineering.
