STMicroelectronics SMBJ26CA-TR

Product Summary SMBJ26CA-TR TVS Diode from STMicroelectronics

The SMBJ26CA-TR is a bidirectional transient voltage suppressor (TVS) diode developed by STMicroelectronics. It is designed specifically for safeguarding sensitive electronics from surges, electrostatic discharges (ESD), and electrical overstress conditions in accordance with key international standards. With a working voltage of 26 V and a clamp voltage of 42.1 V, the device is housed in the surface-mount SMB (DO-214AA) package, making it suitable for automated PCB assembly and high-density board layouts often found in industrial automation, consumer electronics, and power management systems. This product is part of the robust SMBJxxA/SMBJxxCA series, recognized for reliability in harsh environments and demanding circuit applications.

Main Characteristics of the SMBJ26CA-TR TVS Diode by STMicroelectronics

The SMBJ26CA-TR TVS diode distinguishes itself with several core features engineered for advanced protection and operational longevity. It delivers a peak pulse power rating of 600 W (10/1000 μs) and up to 4 kW (8/20 μs), ensuring resilience against fast and high-energy transients. Both unidirectional and bidirectional configurations exist within the series, with the ‘CA’ suffix denoting bidirectional operation.

Low leakage current is another significant advantage, measured at just 0.2 μA at 25°C and remaining below 1 μA at 85°C, translating to minimal parasitic losses in standby or low activity conditions. The device can operate up to a maximum junction temperature (Tj) of 150°C, supporting high power handling in environments where thermal stress endurance is critical.

In terms of construction, the SMBJ26CA-TR incorporates planar technology, which further improves surge robustness and device reproducibility. The matte tin-plated leads encourage excellent soldering performance and contribute to compliance with RoHS and other ecological requirements.

Compliance with Standards and Durability Features of the SMBJ26CA-TR

The SMBJ26CA-TR demonstrates comprehensive compliance with a range of international protection and reliability standards, making it suitable for global deployment in systems subject to stringent certification scrutiny. Certified under UL94 V0 for flame retardance, it passes MSL Level 1 reliability (J-STD-020), and is validated for solderability through J-STD-002, JESD 22-B102 E3, and MIL-STD-750, method 2026.

The device package follows a JEDEC-registered outline, supporting uniformity in system design and replacement. The SMBJ26CA-TR also meets the rigorous IEC 61000-4-2 standard for ESD resistance, with both air and contact discharge ratings exceeding 30 kV, and withstands electrical fast transients (EFT) per IEC 61000-4-4 with capability above 4 kV. For production reliability, an IPC7531 footprint specification ensures compatibility with automated assembly practices and long-term component sourcing.

Electrical Specifications of the SMBJ26CA-TR TVS Diode from STMicroelectronics

From an electrical protection engineering perspective, the SMBJ26CA-TR exhibits well-characterized performance conducive to accurate circuit design. The device’s absolute maximum ratings, including peak pulse currents and breakdown voltages, are defined at 25°C ambient, ensuring predictable surge arrest in real-world operating conditions. Engineers can reference standardized formulas for temperature scaling of breakdown and clamping voltages, enabling precise system margin calculations for elevated junction temperatures.

Bidirectional surge protection is specified, allowing the SMBJ26CA-TR to be implemented across nodes where voltage polarity may vary unpredictably or in AC-coupled environments. Detailed performance curves provided by STMicroelectronics include peak power dissipation versus initial junction temperature, clamping voltage versus pulse current, and characteristic device resistances, essential for optimizing the selection process and ensuring compatibility with upstream and downstream protection requirements.

Thermal Properties and Switching Dynamics of the SMBJ26CA-TR TVS Diode by STMicroelectronics

Thermal management forms an integral aspect of TVS diode application engineering, especially where repeated surges or continuous high ambient temperatures are expected. The SMBJ26CA-TR’s thermal impedance and resistance characteristics have been extensively mapped across a range of pulse durations and under varying copper areas at the PCB interface. Its power capability at elevated temperatures is specified, facilitating confident derating and robust system integration.

Dynamic parameters include junction capacitance behaviors under different applied voltages (separately reported for unidirectional and bidirectional versions), leakage current variations versus junction temperature, and voltage drop characteristics across forward conduction. These data points allow engineers to minimize power losses, maximize transient response speed, and prevent the TVS diode from introducing unacceptable circuit capacitance in sensitive signal paths.

SMBJ Package Details and PCB Mounting Guidelines for the SMBJ26CA-TR

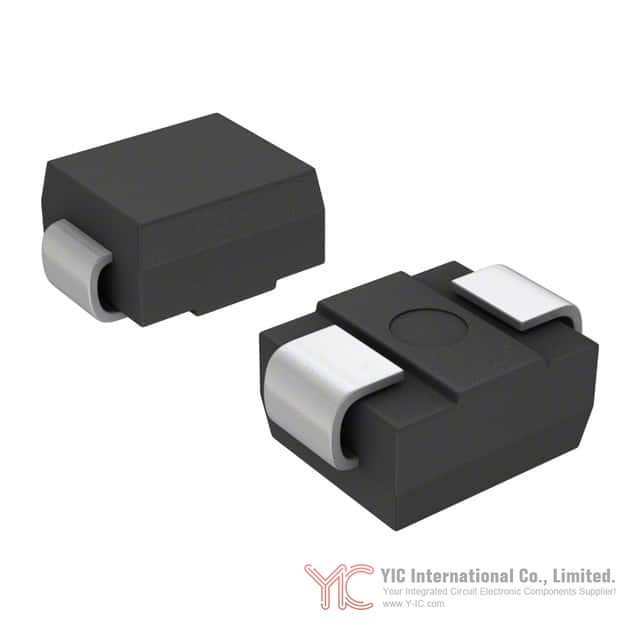

The SMBJ26CA-TR leverages the SMB (DO-214AA) package, a proven format for high-density board layouts and automated pick-and-place assembly. STMicroelectronics provides comprehensive mechanical data, including detailed package outlines, recommended PCB footprints, and marking layouts to simplify both hardware design and traceability for quality assurance.

For mass production, information is supplied regarding tape and reel packaging according to EIA-481 standards and specifics of pocket and reel dimensions to aid process engineers in configuring automated assembly lines. The device marking and orientation details support error-free installation and mitigate the risk of incorrect polarity in bidirectional implementations.

Soldering and Reflow Process Guidelines for the SMBJ26CA-TR TVS Diode by STMicroelectronics

Modern PCB assembly requires that TVS diodes withstand rigorous reflow soldering profiles. The SMBJ26CA-TR complies with the latest IPC/JEDEC J-STD-020 profile for lead-free and conventional soldering processes. ST recommends minimizing air convection in reflow ovens to prevent component displacement, and full reflow curve details are provided to ensure correct thermal ramp rates and peak temperature parameters. This enables highly reliable solder joints and mitigates risk of mechanical or thermal damage during production.

Comparable or Substitute Options for the SMBJ26CA-TR TVS Diode from STMicroelectronics

Product selection engineers and procurement professionals may evaluate alternative models within or outside the SMBJ series based on application specifics, supply chain considerations, or targeted regional certifications. Within STMicroelectronics’ lineup, closely related models in the SMBJxxA and SMBJxxCA families offer similar package formats and electrical ratings but may present different stand-off voltages, clamping voltages, or unidirectional/bidirectional operation modes. For applications requiring lower or higher working voltages, or different surge handling capacities, reviewing the full series datasheet aids in optimal device interchangeability. ST’s established packaging and marking conventions across these models facilitate straightforward drop-in replacement or parallel stocking for modular production lines.

Conclusion

In summary, the SMBJ26CA-TR TVS diode from STMicroelectronics stands as a rigorous, high-performance solution for transient voltage and ESD protection in contemporary electronic assemblies. Through advanced planar construction, robust standards compliance, detailed thermal and electrical characterization, and flexible packaging, it addresses the most demanding requirements for reliability and integration ease. For product selection engineers and procurement professionals, the SMBJ26CA-TR—alongside its SMBJxxA/xxCA series counterparts—offers a dependable building block for safeguarding electronics against surges and ensuring ongoing system integrity throughout the product lifecycle.
