STMicroelectronics LM358AST

Introduction to the LM358AST by STMicroelectronics

The LM358AST from STMicroelectronics is a dual, general-purpose operational amplifier well recognized for its low-power operation and internal frequency compensation. Housed in a compact 8-pin MiniSO package, the LM358AST is specifically designed for single-supply systems, supporting common voltages from 3V up to 32V (or ±1.5V to ±16V for dual supply). This device targets applications that require robust performance while simultaneously addressing the needs for small form factor and power efficiency. Its architecture allows for high versatility in standard analog signal chain tasks such as amplification, filtering, buffering, and signal conditioning—crucial in instrumentation, sensor interfacing, industrial control, and consumer electronics.

Highlights and main attributes of the LM358AST

The distinguished features of the LM358AST stem from both its electrical design and process integration:

Internally frequency-compensated for unity gain stability, minimizing the need for external compensation components.

High DC voltage gain (100 dB), ensuring effective signal amplification even in low-level sensor or instrumentation applications.

Unity-gain bandwidth of 1.1 MHz, with compensation for temperature drift.

Consistent low power consumption—supply current per channel is nearly independent of the supply voltage, critical for battery-powered designs or space-constrained embedded systems.

Input bias current (20 nA, temperature compensated) and input offset voltage (2 mV typical) enable high-precision, low-drift performance.

Input common-mode voltage range includes the negative rail, enhancing compatibility with single-supply scenarios where the input signal may reference ground.

Output voltage swing stretching from 0 V to (Vcc+ 1.5 V), supporting rail-to-rail output in typical 5 V logic systems.

Robust short-circuit protection and a large range for differential input voltages equal to the power supply.

Compliant with industrial environmental standards, and offered in environmentally friendly ECOPACK® packages.

LM358AST Electrical specifications and thermal performance

Selection engineers must weigh absolute maximum ratings and electrical characteristics to guarantee reliability and compatibility:

Supply voltage range: 3–32 V (single) or ±1.5–±16 V (dual).

Maximum output current: Approximately 40 mA per output, with integrated short-circuit protection.

Wide operating temperature range: Ensures device stability and precision in industrial and automotive use-cases.

Input voltage range extends to ground, which is particularly advantageous in single-supply architectures.

Protection against typical electrical abuse: The input stage is protected against voltages slightly below ground by a diode clamp and parasitic action that temporarily drives the output to Vcc or ground without destruction, as long as prolonged overdrive is avoided.

Robust ESD tolerance (standard; for enhanced ESD performance, the LM158W variant is recommended).

For efficient layout, stray capacitance minimization is recommended to avoid coupling, especially in high-speed or high-frequency designs. A thorough understanding of the device’s characteristic curves—including open-loop gain, current limiting, and common-mode rejection—is critical for accurate circuit modeling and simulation.

Available package variants and footprint information for LM358AST

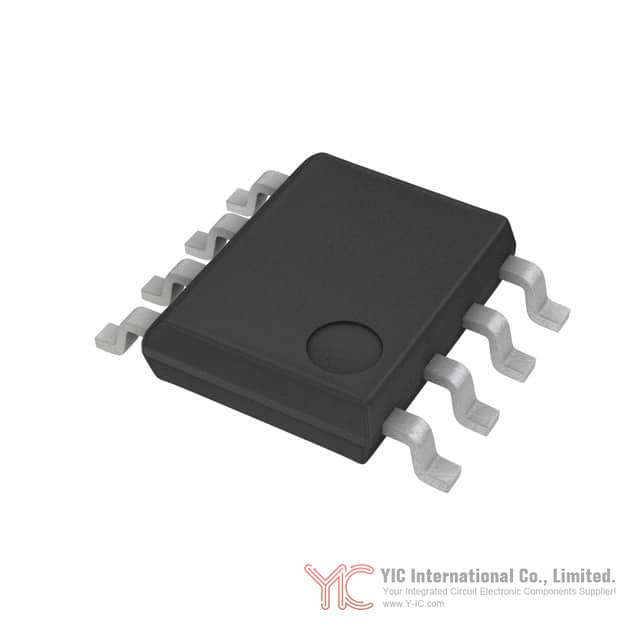

The LM358AST is supplied in a space-efficient 8-pin MiniSO package, well-suited for high-density PCB designs. STMicroelectronics also supports the LM358 series in other package formats—SO8, DFN8 (2x2 mm), and TSSOP8—each with its own mechanical characteristics and recommended PCB layout footprints. The compact MiniSO profile supports automatic pick-and-place, reflow soldering, and reduces parasitic effects, enabling high-performance analog design in compact enclosures. ECOPACK® options fulfil modern environmental compliance requirements and facilitate design into sustainable products.

Example circuits and real-world engineering applications utilizing LM358AST

The LM358AST’s versatility is demonstrated through reference circuit schematics applicable to a variety of analog tasks:

Non-inverting and AC-coupled amplifiers for general-purpose signal amplification.

DC summing amplifiers, allowing multiple sensor or reference voltages to be combined for further processing.

High input impedance differential and instrumentation amplifiers for sensor interfaces, featuring precise, adjustable gain configurations.

Symmetrical configurations for bias current reduction, improving input integrity in high-impedance nodes.

Precision peak detectors, leveraging the low offset and drift for signal envelope detection.

The LM358AST’s compatibility with a single 5V supply (as used in logic circuits) enables direct interfacing and simplifies power management in mixed-signal systems.

Alternative substitute models for the LM358AST

In the case of supply constraints, evolving requirements, or qualification changes, engineers may consider alternatives to the LM358AST. The following models from STMicroelectronics represent close electrical and mechanical equivalents:

LM2904 and LM2904W: Recommended for automotive-grade applications with enhanced AEC-Q100 qualification and higher ESD robustness.

LM158W: For environments requiring improved ESD performance.

LM358, LM258: Alternative members of the same device family, offering similar functional and electrical characteristics across different temperature grades and package options.

Additionally, higher-precision versions (such as LM358A, LM258A) may be selected for designs requiring tighter tolerance parameters.

Substitution should be based on detailed parameter verification, as minor variations in offset voltage, bias current, or thermal ratings may impact stringent designs.

Conclusion

The STMicroelectronics LM358AST positions itself as a reference solution for engineers seeking a high-gain, dual, internally compensated operational amplifier optimized for low-power, single-supply systems. With a broad supply voltage range, competitive precision, versatile package availability, and a wealth of reference application circuits, the LM358AST streamlines both the design and procurement process. Its compatibility with widely recognized device footprints and the availability of qualified replacements further add to its appeal for robust, long-lifecycle electronic assemblies. For engineers prioritizing reliability, power efficiency, and integration flexibility, the LM358AST remains a key candidate in the field of analog system design.
