STMicroelectronics L6208Q

Introduction to the L6208Q Stepper Motor Controller

The L6208Q from STMicroelectronics is a highly integrated bipolar stepper motor driver, leveraging DMOS technology within a compact 48-QFN (7×7 mm) package. Designed to optimize motion control across a wide operating voltage range (8–52 V), the L6208Q combines control and power stages, making it particularly attractive for engineers seeking robust, space-efficient stepper motor driving solutions. At its core, the device enables precise current regulation and stepping logic, facilitating full and half-step operation for two-phase bipolar stepper motors. Its modular design is well-suited for general-purpose applications where precise and reliable stepping motion is required.

Main characteristics of the L6208Q Stepper Motor Controller

L6208Q integrates numerous features enhancing efficiency, performance, and safety:

Highly integrated dual full-bridge DMOS output stage

Full and half-step drive capability with phase sequence generation

Constant OFF time PWM current controller for advanced chopping regulation

Output current capability up to 2.5A RMS (peak output up to 5.6A)

Wide operating voltage window (8–52V) for flexible system integration

Fast/slow decay synchronous rectification for improved current control and minimized losses

Non-dissipative overcurrent protection on high-side MOSFETs, avoiding unnecessary power wastage

Integrated fast freewheeling diodes for high-speed switching

Comprehensive protection suite including cross conduction protection, thermal shutdown, and undervoltage lockout

Combined, these features allow engineers to confidently design drive electronics for bipolar stepper motors, ensuring fine stepping resolution, reliable operation under challenging conditions, and reductions in board space and external component count.

Package details and pin layout of the L6208Q Stepper Motor Controller

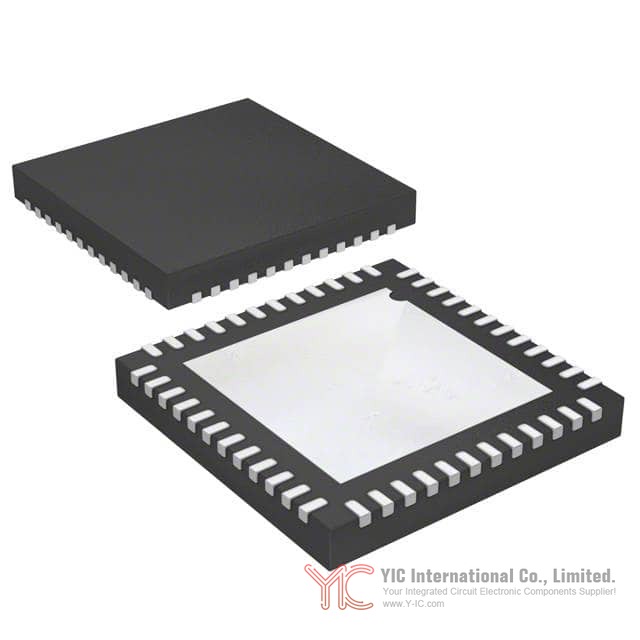

The L6208Q comes in the VFQFPN48 (7 × 7 mm) surface-mount package, offering a compact footprint suitable for dense PCB layouts. Its pin-out is optimized to streamline integration of dual full-bridge drivers, current sensing, and control logic.

Key pin assignments include:

Clock and CW/CCW input pins for step and direction control

SENSEA/SENSEB pins for current sensing via external power resistors

RCA/RCB pins to connect parallel RC networks for setting PWM OFF time

Control and ENABLE pins to select decay mode and enable/disable MOSFETs

OUT1A/OUT1B/OUT2A/OUT2B for connecting each motor winding phase

VSA/VSB for independent power supply to bridges A and B

VBOOT for bootstrap supply voltage of high-side drive MOSFETs

Thermal and overcurrent monitoring output pins

The exposed pad must be connected to the ground for efficient thermal management, a critical consideration for systems operating at high output currents.

Electrical parameters of the L6208Q Stepper Motor Controller

Design engineers must account for electrical parameters when integrating the L6208Q. Key specifications include:

Absolute maximum supply voltage: 60V

Recommended operating supply range: 8–52V

RMS output current capability: 2.5A per bridge (peak up to 5.6A)

Low RDS(on): Typical 0.3 Ω at 25°C for efficient power handling

Operating frequency: up to 100 kHz, supporting rapid stepper control

Logic input voltage levels: 0.8V (low), 2V (high)

Switching delays: Turn-on and turn-off times range from 100–800 ns, rapid enough for most industrial applications

Operating junction temperature: –25 to +125°C, allowing operation across industrial and extended temperature ranges

These specifications ensure that the L6208Q can meet the demands of high-performance stepper motion systems with robust and reliable electrical behavior.

Functional block diagram of the L6208Q Stepper Motor Controller

The internal architecture of the L6208Q centers around dual DMOS full bridges, coordinated by charge pumps and step sequence generators. The logic control inputs interface directly with the inbuilt phase sequence generator and constant OFF time PWM current controllers, allowing precise manipulation of motor phase and current.

The charge pump circuit ensures appropriate high-side gate drive voltages, while RC network pins set timing for current regulation in each bridge independently. Integrated protection logic continually monitors for overcurrent, undervoltage, and excessive junction temperatures, interacting with enable control logic to maintain safe device operation.

Operation modes and step sequencing options for the L6208Q Stepper Motor Controller

The L6208Q offers flexible stepper control schemes:

Full-step mode (two-phase-on and one-phase-on drive) for maximum torque and simplified motion

Half-step mode for finer position resolution without significant loss in torque

Decay mode selection (fast or slow decay) via dedicated control inputs, allowing optimal trade-off between current ripple management and dynamic response

Each mode is selectable via external control logic, providing on-the-fly adaptation to application requirements. The internal state machine, governed by external clock and direction inputs, allows for synchronous and smooth stepping sequence generation across a wide range of motor speeds.

Built-in safety features of the L6208Q Stepper Motor Controller

To ensure high reliability, the L6208Q incorporates several protection features:

Non-dissipative overcurrent detection: Monitors high-side output MOSFETs, protecting against prolonged fault currents without excessive heat generation

Thermal shutdown: Automatically disables outputs if junction temperature exceeds safe limits

Cross conduction protection: Prevents simultaneous conduction of high-side and low-side switches, eliminating risk of shoot-through currents

Under-voltage lockout: Shuts down driver outputs if voltage falls below safe threshold, protecting both device and motor

These mechanisms collectively extend device lifetime, reduce maintenance needs, and improve system safety.

Typical uses for the L6208Q Stepper Motor Controller

The L6208Q is tailored for driving two-phase bipolar stepper motors in general-purpose applications, finding utility in:

Industrial automation: Precise motion control for positioning and actuating systems

Robotics: Reliable stepper control for arms, grippers, and mobile platforms

Medical equipment: High-resolution motion in imaging and dispensing devices

Textile machinery, printer mechanisms, CNC machines, and any application requiring compact, efficient, and highly integrated stepper motor driving electronics

Its wide voltage range, configurable stepping modes, and robust protection suite make it a versatile option across varied fields demanding accurate motor movements.

Thermal handling and reliability factors of the L6208Q Stepper Motor Controller

Given its high output capability, proper thermal management is crucial for the L6208Q. Engineers should ensure:

The exposed pad is soldered to the PCB ground plane for optimal heat dissipation

Total board thermal impedance is minimized where ambient temperature or load currents are high

Output current capability calculations include expected duty cycles and load conditions to avoid excessive junction heating

Designs incorporating thermal shutdown and current protection features further enhance long-term reliability, supporting stable motor operation in both benign and demanding environments.

Alternative or substitute devices for the L6208Q Stepper Motor Controller

In the context of device selection and procurement, engineers may seek alternatives for the L6208Q due to availability or design preferences. Comparable models typically offer similar DMOS stepper driving features, supply voltage ranges, and output currents. Other STMicroelectronics devices in the STSPIN L62 series may provide parallel performance, and the market includes similar ICs from major manufacturers specializing in stepper motor drivers.

When evaluating replacements, engineers should carefully compare pinout compatibility, electrical parameters, and protection features to ensure seamless integration and maintain system performance standards.

Conclusion

The L6208Q Stepper Motor Driver from STMicroelectronics offers a powerful, integrated solution for bipolar stepper motor driving, combining efficient DMOS full-bridge stages, flexible stepping modes, robust protection, and extensive configurability within a compact package. Its technical features and operational versatility make it a top choice for engineers seeking performance, reliability, and ease of integration. Reviewing its unique capabilities and potential alternatives enables informed component selection, facilitating successful deployment in demanding motion control systems.
