Renesas Electronics America Inc R7F7010404AFP-C#KA2

Mfr. Part

R7F7010404AFP-C#KA2

Manufacturer

Renesas Electronics Corporation

Y-IC is a quality distributor of Renesas. We deliver genuine parts, fast service, and expert support to help you build reliably and ship on time.

Detailed Description

32-bit automotive-grade microcontroller from the RH850/F1L series, built on the RH850G3K core at 96 MHz. It integrates 768 KB embedded Flash, 32 KB EEPROM, and 96 KB RAM, plus rich on-chip peripherals for real-time control and in-vehicle networking. Supplied in a compact 64-LFQFP (10x10 mm) package for surface-mount assembly. Wide supply range (3 to 5.5 V) and extended operating temperature (-40°C to 125°C) make it suitable for harsh environments.

Key Features

Core and speed: 32-bit single-core RH850G3K, up to 96 MHz

Memory: 768 KB Flash, 32 KB EEPROM, 96 KB RAM

I/O: 49 general-purpose I/O lines

Communications: CANbus, LINbus, CSI (Clocked Serial Interface), SPI, UART/USART, Inter-IC (I2C)

Analog: A/D converters with 10 channels at 12-bit and 11 channels at 10-bit

Peripherals: DMA, low-voltage detection (LVD), power-on reset (POR), PWM, watchdog timer (WDT)

Oscillator: internal oscillator available (external clocking optional)

Power: 3 V to 5.5 V operation

Package: 64-LFQFP (10x10 mm), surface mount

Compliance: RoHS3 compliant

Series: RH850/F1L

Base product number: R7F7010404

Key Advantages

Designed for automotive and industrial reliability with -40°C to 125°C operating range

Integrated EEPROM reduces external memory needs and simplifies design

Rich communication interfaces enable robust in-vehicle and industrial networking

Deterministic real-time control with DMA, PWM, and watchdog improves system safety

Wide supply voltage range supports 3 V and 5 V systems without level translation

Large embedded Flash (768 KB) supports feature-rich firmware without external Flash

Low BOM and compact footprint with 64-LFQFP package

Stable long-term series (RH850) widely adopted in automotive control units

Packaging

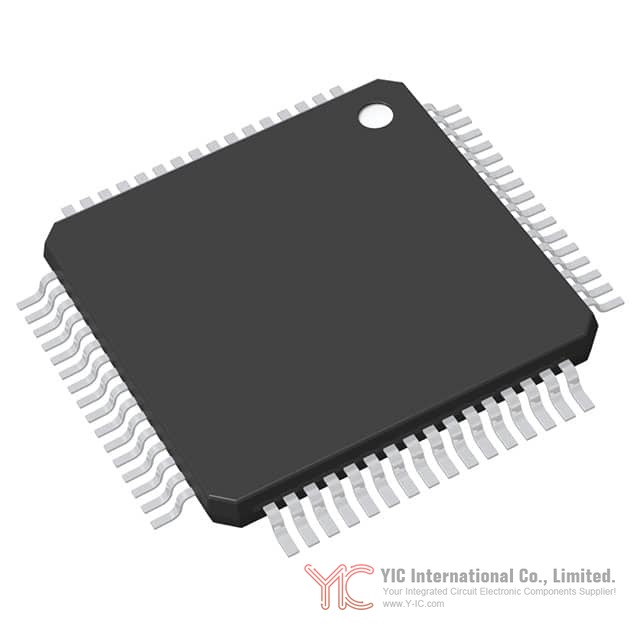

Package / Case: 64-LFQFP (also referred to as 64-LQFP), body size about 10x10 mm

Supplier Device Package: 64-LFQFP (10x10)

Mounting: surface mount

Shipment packaging: tray (ideal for SMT pick-and-place)

Material: copper leadframe, epoxy mold compound, lead-free matte tin plating (RoHS3 compliant)

Pin configuration: 64 leads around the perimeter, pin 1 indicator, typical 0.5 mm pitch (LQFP64 standard); 49 GPIO plus dedicated pins for CAN/LIN, SPI, UART/USART, CSI, analog inputs, power and ground

Thermal characteristics: optimized for PCB heat dissipation via leadframe and copper areas; actual θJA depends on board stackup, copper pour, and airflow

Electrical properties: 3 to 5.5 V supply, robust ESD protection features integrated on I/O; internal oscillator reduces external components; designed for reliable operation across automotive temperature range

Lifecycle

Status: Generally available and widely used within the RH850/F1L family at the time of writing; not flagged as nearing discontinuation based on public information

Alternatives and equivalents: Pinand software-compatible options may exist within the RH850/F1L family (same RH850G3K core) with different Flash sizes, temperature grades, or package options. Exact cross recommendations depend on required memory, interfaces, and pinout

Next step: For a verified, detailed list of drop-in or software-compatible alternatives, please contact Y-IC via our website. Our team will match your requirements and provide vetted cross-references

Key Application Areas

Automotive body electronics: door modules, window lift, mirror control, seat control

HVAC and climate control units

Instrument clusters and switch panels

CAN/LIN gateways and network nodes

Small motor control and actuators (PWM-driven)

Industrial controllers and sensor hubs needing robust serial and analog interfacing
