Renesas Electronics America Inc R5F104LCAFB#10

Summary of Product – R5F104LCAFB#10 RL78/G14

The Renesas R5F104LCAFB#10 is part of the RL78/G14 family of 16-bit microcontrollers, designed to provide a true low-power platform for general-purpose embedded applications. With a rich set of integrated features, robust operating voltage range (1.6 V to 5.5 V), and advanced peripheral connectivity, the R5F104LCAFB#10 balances performance, flexibility, and efficiency. Housed in a 64-pin LQFP package (14mm x 14mm, 0.8mm pitch), it targets control-oriented designs that demand extended functionality and reliable operation across consumer and industrial environments.

Processor Design and Efficiency – R5F104LCAFB#10 RL78/G14

At the heart of the R5F104LCAFB#10 lies the RL78 CPU core, a CISC architecture with a 3-stage pipeline enabling efficient instruction throughput. The device can achieve a Dhrystone MIPS performance of up to 44 DMIPS at 32 MHz, with instruction execution times scalable from high-speed (31.25 ns at 32 MHz using the high-speed on-chip oscillator) down to ultra-low speed (up to 30.5 µs at 32.768 kHz with subsystem clock). The core supports advanced arithmetic instructions, including multiply, divide, and multiply-accumulate, and features an address space of 1 MB and up to 32 KB of on-chip RAM.

Energy Control and Sleep Modes – R5F104LCAFB#10 RL78/G14

The R5F104LCAFB#10 is engineered for energy-sensitive environments, integrating several power-saving mechanisms. It boasts ultra-low power consumption technology, operating at just 66 μA/MHz in active mode, and reducing further to 0.6 μA when only the real-time clock (RTC) and low-voltage detector (LVD) remain operational. Selectable power modes (HALT, STOP, SNOOZE) facilitate granular control of energy use depending on application state—critical for battery-powered and always-on systems. Built-in power-on-reset and voltage detector (LVD) circuits enable reliable system startup and operation across temperature ranges, from -40°C up to 105°C for G-grade industrial variants.

Internal Storage and Programming Options – R5F104LCAFB#10 RL78/G14

The microcontroller provides 32 KB of flash memory for code storage, with features such as block erase/write protection and on-chip debug for development. Self-programming capabilities, including boot swapping and flash shield window, allow firmware upgrades in-system. Data flash memory options (4 KB or 8 KB) offer robust storage for logs or configuration data, supporting up to 1,000,000 rewrite cycles. Background operation enables concurrent program execution during data flash rewrites. A dedicated flash memory programmer and UART interface allow seamless device provisioning and updating in manufacturing and field environments. Retention mechanisms maintain RAM content during voltage fluctuations, maximizing reliability in critical scenarios.

Integrated Peripherals – R5F104LCAFB#10 RL78/G14

The R5F104LCAFB#10 is equipped with a dense set of peripherals tailored for real-time control and connectivity. Multiple serial interfaces (up to 8 channels of simplified SPI, 4 UART/LIN, and 10 channels of I²C) provide flexible options for external communications. Timer resources include up to 12 16-bit channels for precise event scheduling, a real-time clock with 99-year calendar support and alarm functionality, and a hardware watchdog for fault-tolerance. The microcontroller integrates both 8/10-bit A/D and 8-bit D/A converters, a temperature sensor for device health monitoring, and comparator channels for analog signal conditioning. Event Link Controller (ELC) and Data Transfer Controller (DTC) enable peripheral cross-triggering and DMA-like transfers for efficient system response in complex automation tasks.

Input/Output and Communication Interfaces – R5F104LCAFB#10 RL78/G14

Providing up to 92 configurable I/O ports, the R5F104LCAFB#10 can accommodate diverse application needs, including support for N-channel open drain outputs (6 V tolerance), TTL input buffer, and integrated pull-up resistors. The I/O ports are capable of interfacing with devices operating at 1.8 V, 2.5 V, and 3 V, allowing seamless communication in mixed-voltage environments. Peripheral I/O redirection registers (PIOR0, PIOR1) facilitate flexible mapping of alternate functions, reducing PCB complexity. Integrated features such as key interrupts, clock/buzzer output controllers, and binary-coded decimal correction circuits further streamline human-machine interfaces and measurement applications.

Electrical Specifications – R5F104LCAFB#10 RL78/G14

Guaranteed operation for the R5F104LCAFB#10 spans supply voltages from 1.6 V to 5.5 V and ambient temperatures from -40°C to +85°C (A, D types), and up to +105°C (G type). The device is robust against momentary excursions beyond absolute maximum ratings, provided design guidelines are followed—such as connecting the REGC pin to ground via a 0.47–1 µF capacitor. The microcontroller is compliant with strict current limitations on its I/O pins, and engineers should carefully observe duty cycle-dependent output current constraints during design review. Its oscillator suite includes high-speed (up to 64 MHz) and low-speed clocks, with frequency selection tailored via dedicated configuration bits and registers. AC characteristics ensure reliable timing and synchronization for real-time and interfacing needs.

Analogue Capabilities – R5F104LCAFB#10 RL78/G14

Key analog capabilities include a versatile 8/10-bit A/D converter supporting up to 20 analog input channels, with selectable external or internal reference voltages. The device features an integrated temperature sensor and reference voltage source to enhance monitoring and calibration tasks. An onboard D/A converter can output up to two channels with real-time output capability, operating from rail-to-rail (0 V to VDD). For analog comparison purposes, up to two high-speed or low-speed comparator channels (available in models with larger code flash memory) provide selectable reference voltage inputs—an essential feature for control and safety monitoring in industrial applications.

Package Types and Pin Layout – R5F104LCAFB#10 RL78/G14

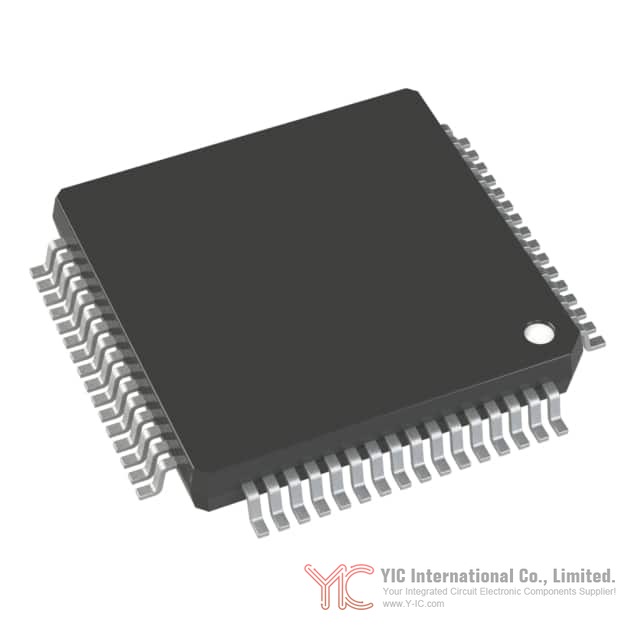

The R5F104LCAFB#10 is delivered in a 64-pin LQFP form factor, making it compatible with a broad range of PCB designs. The RL78/G14 family, encompassing various flash memory capacities, also offers a comprehensive lineup in 30–100 pin packages including HWQFN, FLGA, LFQFP, LSSOP, and LQFP. Each package complies with alignment and tolerance standards, ensuring reliable mechanical integration and positioning. Special care is required during system layout to adhere to package-specific power and ground management—such as tying REGC and EVSSO pins as specified—and connecting exposed die pads to ground to minimize noise and enhance thermal dissipation.

Possible Substitute/Alternative Models – R5F104LCAFB#10 RL78/G14

When considering alternatives, engineers should reference other RL78/G14 series models that share similar core features with the R5F104LCAFB#10. Models with differing flash memory sizes (e.g., R5F104LCxxx#10 variants), package counts (44-pin to 100-pin), or industrial grade specifications might suit specific design constraints or scalability requirements. Careful cross-referencing with the RL78/G14 product lineup is advised to ensure matching I/O, memory, and voltage specifications for seamless replacement. For high temperature or extended code memory needs, adjacent RL78 series devices may also be reviewed, helping procurement and selection engineers to match system longevity and performance needs.

Conclusion

The Renesas R5F104LCAFB#10 RL78/G14 microcontroller delivers a well-balanced platform for low-power embedded applications, combining efficient architecture, robust memory options, and extensive peripheral integration. Its versatility in power management and interface compatibility makes it applicable to a spectrum of real-world scenarios, from portable instrumentation to industrial automation. By understanding its comprehensive feature set, engineers and procurement specialists can confidently select the R5F104LCAFB#10—whether for new designs or legacy system upgrades in the RL78/G14 family.
