Powerex Inc. CD431290C

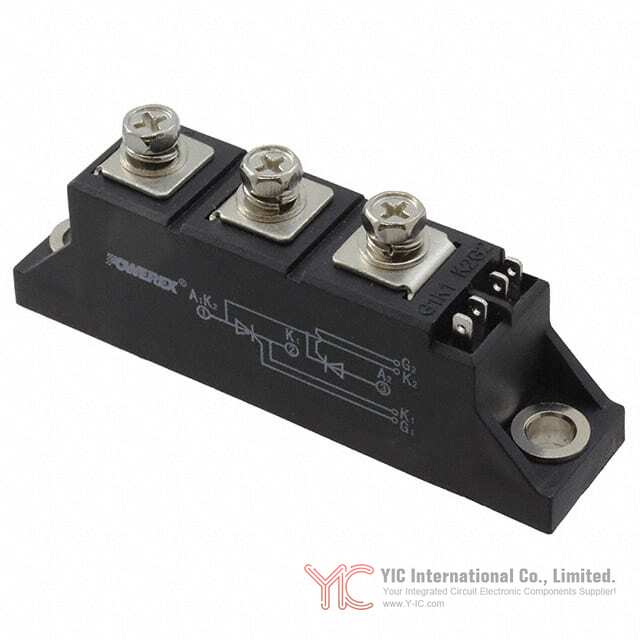

Summary of the Powerex CD431290C Dual SCR Isolated Module

The Powerex CD431290C is a high-performance dual silicon controlled rectifier (SCR) module designed for medium- to high-power phase control applications. Manufactured by Powerex Inc., the CD431290C forms part of the POW-R-BLOK series, offering reliable phase control switching within a robust, isolated packaging format. This module supports a maximum voltage rating of 1200V and a continuous RMS on-state current of 141A, making it suitable for a range of industrial power control tasks.

The CD431290C employs a series connection of SCR elements, enabling superior electrical isolation via its molded package, which is specifically designed for streamlined mounting on a common heatsink. Engineers benefit from simplified system integration and reduced component count as the module removes the need for additional insulation or clamping hardware. Comprehensive RoHS3 compliance ensures environmental compatibility for new and legacy designs.

Main Attributes and Technical Advantages of the CD431290C

The Powerex CD431290C offers several notable features of direct relevance to design and procurement engineers:

Electrically Isolated Heatsinking: Each module provides 2500V RMS isolation (60 seconds at 25°C, 50–60 Hz), simplifying compliance with system-level safety requirements and ease of mounting with other high-voltage components.

Compression Bonded Structure: Enhanced power cycling endurance over traditional soldered die arrangements, providing higher reliability in demanding industrial applications.

High Surge Capability: The module can withstand a non-repetitive surge current (ITSM) of up to 2000A (50Hz, Tj=125°C), vital for fault tolerance in motor drive and power supply circuits.

Low Thermal Impedance: With a thermal resistance from junction to case (RθJC) of 0.82°C/W per junction and case-to-sink (RθC-S) of just 0.15°C/W for the module, the design enables efficient heat removal during continuous operation.

Fast Assembly and Reduced Engineering Overhead: Pre-isolated packaging minimizes system assembly time and lowers design risk due to the absence of required external insulating hardware or heatspreaders.

Ultimate Maximum Specifications for the Powerex CD431290C

A comprehensive understanding of the maximum ratings is crucial for reliable deployment. The CD431290C’s key absolute limits include:

Maximum repetitive peak forward and reverse blocking voltage (VDRM, VRRM): Up to 1200V across each SCR device.

Maximum RMS on-state current (IT(RMS)): 141A at a case temperature (Tc) of 85°C, with continuous conduction.

Average forward current (IT(AV)): Also 90A at Tc=85°C with a 180° conduction angle.

Non-repetitive peak surge current (ITSM): 2000A at 50Hz (with 60% of VRRM reapplied, Tj=125°C).

Junction temperature range: -40°C to +125°C for both operation and storage.

Isolation voltage: Withstands 2500V RMS, suitable for reinforced isolation requirements.

Accurate application of these limits is essential to prevent premature device degradation or failure in end-use scenarios, especially in dynamic industrial environments.

Electrical Specifications of the CD431290C

The CD431290C dual SCR module’s operational characteristics offer important insights for design verification:

Gate trigger current (IGT): 30 to 100mA at Tj=25°C, ensuring flexibility for a range of gate drive configurations.

Gate trigger voltage (VGT): 0.75V to 2.5V under standard conditions.

Holding current (IH): 20 to 100mA at Tj=25°C.

Peak on-state voltage (VTM): Limited to a maximum of 1.90V at ITM=270A, preserving overall switching efficiency.

Repetitive peak leakage currents (IDRM/IRRM): Below 10mA up to VDRM/VRRM at Tj=125°C, indicating robust reverse blocking and forward integrity.

Understanding these values is necessary for ensuring SCR triggering reliability, minimizing spurious switching, and maximizing thermal management options in system design.

Thermal and Structural Factors Related to the CD431290C

Proper mounting and heat dissipation are central in securing the CD431290C performance:

The thermal resistance from junction to case per device is 0.82°C/W (DC operation), which allows the module to support high current densities without local overheating.

Case-to-sink interface resistance is maintained at 0.15°C/W when lubricated, thus ensuring effective heat transfer to external heatsinks for continuous duty cycles.

Mechanical constraints include a maximum mounting torque of 4Nm for M5 terminals and 6Nm for module-to-heatsink connections. Typical module weight is 160g.

The robust isolated mounting base eliminates the need for secondary insulation barriers, reducing system complexity and enhancing reliability.

Major Use Cases for the CD431290C Dual SCR Module

Thanks to its high current, isolation, and switching characteristics, the CD431290C is well-suited to:

Bridge rectifier circuits in industrial motor drives, offering precise phase-angle control and robust surge handling.

AC and DC motor drive units, including variable frequency drives (VFDs), where compact isolation and high endurance are prioritized.

Battery supply regulators and front-end circuits in large IGBT-based power stages.

Lighting control systems, particularly those requiring high-reliability phase control for industrial or commercial environments.

Power supply designs, including regulated and unregulated architectures for heavy industrial loads.

High-current heat and temperature controllers and welder inverters, where long-term cycling durability is essential.

Possible Substitute or Comparable Models for the Powerex CD431290C

In circumstances where the CD431290C requires cross-referencing or substitution, consider the following engineering criteria:

Direct equivalents may include other Powerex dual isolated SCR modules within the CD43_90C series, selected by matching voltage and current ratings (e.g., modules rated at 1400V, 1600V, or 1800V depending on specific application voltage requirements).

Modules from alternative manufacturers should be evaluated for equivalent repetitive voltage, RMS current, isolation capabilities, and mounting requirements to ensure full system compatibility.

When specifying replacements, always verify gate trigger levels and surge current ratings to prevent circuit misoperation or inadequate protection.

Consult with Powerex or leading SCR module vendors for cross-reference guides for more detailed model-to-model comparison.

Conclusion

The Powerex CD431290C dual SCR isolated module is a robust, versatile solution for heavy-duty power control applications. Its combination of high RMS current capability, strong surge endurance, reinforced isolation, and thermally optimized construction meets the critical requirements of industrial motor controls, bridge converters, battery management circuits, and more. By providing engineers with a reliable, standards-compliant component in a user-friendly package, the CD431290C streamlines modern power electronics system development while ensuring operational safety, reliability, and ease of integration. For teams seeking functional alternatives, careful selection of equivalent modules according to the outlined criteria will preserve both electrical and mechanical compatibility across a range of demanding scenarios.
