Omron Electronics Inc-EMC Div XG4M-3430

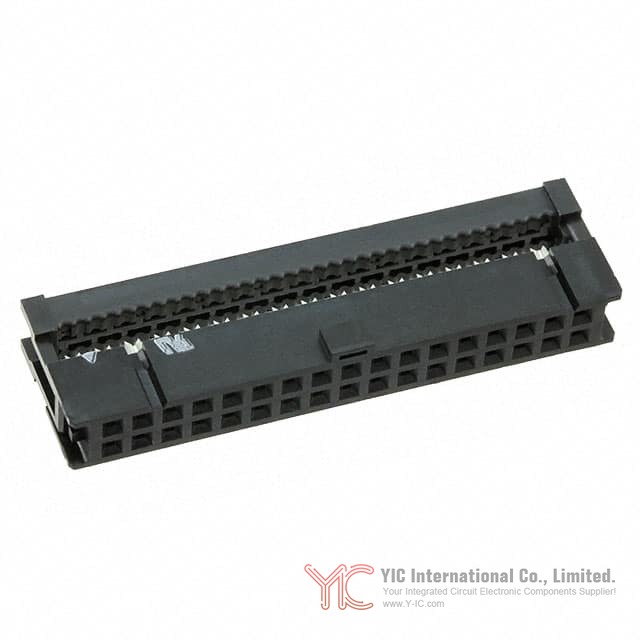

Product Summary Omron XG4M-3430 IDC Rectangular Socket Connector

The Omron XG4M-3430 is a 34-position rectangular IDC (Insulation Displacement Contact) receptacle connector designed for use with 28 AWG flat cables. Engineered to comply with MIL-C-83503 standards, the XG4M-3430 stands out in applications demanding robust reliability and standardized compatibility, including industrial automation, telecommunications, and high-density PCB assembly. Its gold-plated contacts ensure superior conductivity and long-term performance, making it suitable for environments where durability and signal integrity are paramount.

Mechanical and Electrical Specifications of XG4M-3430

The XG4M-3430 connector features a single-row configuration with 34 contacts, optimized for use with flat cables in a variety of control and signal transmission scenarios. The pitch is 1.27 mm, compliant with UL2651 and similar 28 AWG standard, folding, and color-code cables. The connector is rated for a 1 A current per socket, which meets the needs of low-to-moderate power signal transmission commonly required in military, industrial, and instrumentation electronics. Mechanical enhancements accommodate strain relief and robust cable management, supporting both efficiency in assembly and reliability in day-to-day operation.

Composition, Surface Treatment, and Environmental Standards for XG4M-3430

Omron has specified high-grade material selection for the XG4M-3430, incorporating gold plating on its contact surfaces. This not only provides excellent corrosion resistance but also secures consistent electrical performance over time. The connector body is produced from durable plastics engineered for high mechanical stability and resistance to thermal deformation. RoHS compliance assures safe integration into eco-conscious designs, supporting global supply chain requirements for hazardous substance regulation.

Connection Compatibility and Pairing Options for XG4M-3430

Compatibility and flexible interfacing are key strengths of the XG4M-3430 series. For comprehensive connection strategies, the XG4M-3430 is designed for use with corresponding series mates, including the XG4U strain reliefs and XG4C box-type plugs (with right-angle and straight DIP terminals), accessible for both direct and relay IDC cabling. Lock levers can be added post-assembly to meet application-specific security and maintenance needs, facilitating secure latching and ease of periodic disconnections or servicing.

Furthermore, standardized mating pitch (22.86 mm polarity guide) across the XG4 series ensures interoperability between different plug and socket configurations, streamlining design and maintenance for engineers managing diverse interconnect requirements.

Measurements and Structural Attributes of XG4M-3430

The XG4M-3430 maintains a compact footprint suitable for high-density PCB layouts and constrained enclosures. The open-end cover design supports versatile cable routing, allowing flat cable exits on both sides for optimized panel or board assembly. Standoffs are integrated for improved airflow and strategic mounting height, beneficial for both thermal management and soldering processes in automated manufacturing environments.

Mating diagrams for the XG4M-3430 highlight polarizing guide positions and contact indexing, which are invaluable in preventing assembly errors and ensuring accurate wire-to-contact mapping during design and installation phases.

Essential Accessories and Installation Tools for XG4M-3430

A variety of accessories are available to enhance both reliability and user convenience when deploying the XG4M-3430 connector. Polarizing keys (XG4Z-0004) and coding pins (XG4Z-0005) enable error-proof assembly in systems where multiple similar connectors are deployed, while specialized drivers (XY2E-0002) streamline contact pre-cutting operations for precise coding pin insertion.

Lock levers (XG4Z-0010/0011) are purpose-designed for the XG4 series; these can be installed after automated soldering, addressing issues related to interference during board mounting or packing. For additional security, lock levers can be matched with box-type plugs (XG4C) using Lock Lever II (XG4Z-0002).

Guidelines for Handling, Installing, and Safe Operation of XG4M-3430

To ensure optimal connector lifespan and performance, engineers should observe mounting and usage precautions specific to the XG4M-3430. Boards must be anchored with screws prior to connector mounting, and where applicable, polarizing keys should be used to prevent mismating. During connection and disconnection, lock levers should be operated manually within their designed range; misuse or deliberate forcing can damage the mechanism.

Automated jet-flow soldering is supported at 250°C for up to 5 seconds; however, lock levers should be in a fully closed or open position during soldering to avoid thermal-induced deformation. For storage, maintain plugs with lock levers either fully engaged or completely disengaged to prevent play or wear in the lever’s plastic components.

Alternative or Substitute Models Comparable to XG4M-3430

For engineers and procurement specialists considering alternatives, the XG4M-3430 is functionally aligned with other connectors in the Omron XG4 and XG5 series. Original Plugs (XG8) and Box-type Plugs (XG4C) share compatibility for locking mechanisms and mating dimensions, while XG2 IDC connectors serve as suitable PCB-side alternatives for specific assembly needs. Further, the XG4H series board-to-board sockets and XG4E IDC plugs complement the XG4M-3430’s form and function across common MIL-standard interconnect applications.

Conclusion

The Omron XG4M-3430 IDC rectangular receptacle connector is a reliable, MIL-standard solution tailored for flat cable management in demanding industrial and defense electronics. With robust materials, versatile mating options, and a wealth of compatible accessories, the XG4M-3430 stands as a prudent choice for design engineers and procurement professionals seeking longevity, compatibility, and manufacturing efficiency within interconnect systems. Its thoughtful detailing and configuration flexibility facilitate streamlined integration into both legacy and new product designs.
