Omron Electronics Inc-EMC Div XG4M-3430-T

XG4M-3430-T Omron IDC Rectangular Connector Summary

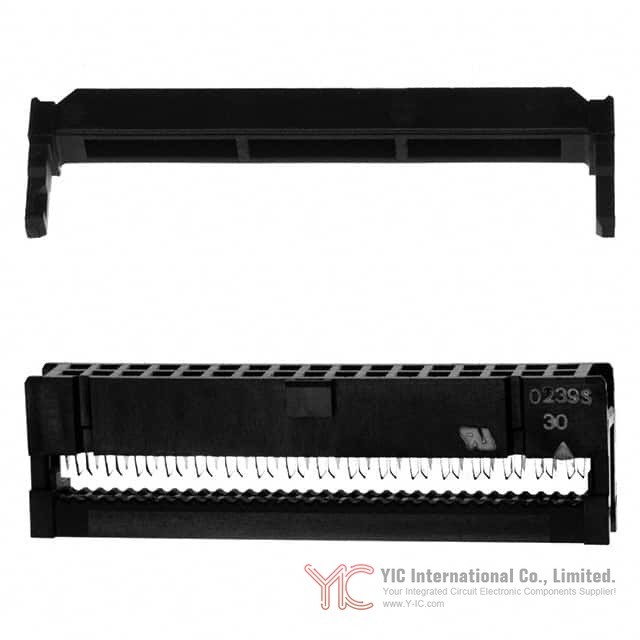

The XG4M-3430-T, produced by Omron Electronics Inc-EMC Division, is a 34-position rectangular IDC (Insulation Displacement Connector) receptacle, specifically designed for high-density interconnection of flat cables and PCBs in industrial electronics, automation, and embedded systems. Built to accommodate 28 AWG ribbon cables, the XG4M-3430-T leverages gold-plated contacts for reliable electrical performance, longevity, and reduced signal degradation. Its robust construction and compatibility with military specifications make it a highly reliable option for designers seeking secure and standardized connections.

Structural Attributes and Adherence to MIL Standards for XG4M-3430-T

A core aspect of the XG4M-3430-T’s appeal is its adherence to the MIL-C-83503 military standard, ensuring uniform quality and cross-manufacturer interchangeability. The connector features an open-end cover, enabling flat cable exit from either side for flexible cable routing in compact installation areas. A standoff structure slightly lifts the housing from the PCB, enhancing solder joint airflow and facilitating effective thermal management during assembly. Additional reliability is supported by Omron’s refined production processes targeting long-term stability and consistent connectivity, even under demanding usage cycles.

Physical and Electrical Specifications of XG4M-3430-T

From a technical perspective, the XG4M-3430-T supports key attributes needed in high-reliability environments:

34-contact rectangular configuration with IDC termination.

Designed for 1.27 mm pitch 28 AWG flat cables (UL2651 standard as default).

Rated current of 1 A per contact when mated with recommended sockets (e.g., XG4M series).

Gold plating on contacts to ensure low contact resistance and high cycle durability.

Open-end cover design to facilitate versatile cable management.

RoHS compliant, excluding hazardous materials and aligning with current environmental directives.

Interconnectivity, Compatibility, and Connection Options for XG4M-3430-T

System designers frequently require a modular approach. The XG4M-3430-T offers various mating options for comprehensive solution flexibility:

Intermates with Omron’s XG4U strain relief modules, XG4C space-saving box-type plugs, and XG8 original plugs.

Secure locking is facilitated using lock levers, ensuring vibration resistance in control panels.

Compatible plug variants include XG4A MIL plugs (long/short/no lock levers) and XG4C box-type plugs, supporting both right-angle and straight DIP terminal requirements.

The connector is part of a broader XG4 ecosystem, enabling multiple interconnection scenarios for flat cable, discrete wire, and board-to-board connections through models such as XG5 and XG8.

Guidelines for Installing and Managing XG4M-3430-T

Correct installation is instrumental in maximizing connector lifespan:

Prior to mounting, secure the PCB mechanically with screws for stability.

For IDC assembly, minimize cable slack to guarantee reliable strain relief function.

Automated soldering (jet flow) is supported with a specified profile (250±5°C for up to 5±1 seconds).

Proper handling of lock levers is critical; levers should only be operated by hand to avoid mechanical damage.

During soldering and storage, ensure lock levers are kept fully open or closed to prevent long-term degradation of locking mechanisms.

Tools and Supplementary Items for XG4M-3430-T

To optimize installation and error-proofing in high-density layouts, Omron offers matched accessories:

Lock levers (long or short) that can be mounted post-soldering, improving rework and automated assembly compatibility.

Polarizing keys (XG4Z-0004) and coding pins (XG4Z-0005) to mitigate reverse or mis-insertion, crucial for densely packed or multiply grouped connectors.

Specialized contact cutting driver for efficient implementation of coding pins.

Box-type plugs can utilize unique Lock Lever II for added retention strength in demanding environments.

Alternative and Substitute Models for XG4M-3430-T

When considering design updates, second-sourcing, or multi-vendor qualification, engineers may evaluate these alternative or companion models in Omron’s portfolio:

XG4M-3431-T: Variant with alternative polarizing guide configuration.

XG4H-3431-1: Board-to-board straight DIP terminal socket, suitable for direct PCB interface.

XG4A-3431/3432 series: MIL-compliant plugs with long/short/none lock lever options depending on mechanical mounting needs.

XG5 discrete wire IDC connectors and XG8 original plugs for broader interconnect needs, especially where compatibility or cable type variation is necessary.

When seeking alternatives from other brands, be sure to verify MIL-C-83503 compliance, polarization options, rated current, and gold-plated contacts to match XG4M-3430-T’s reliability.

Environmental Regulations and Standard Certifications Related to XG4M-3430-T

The XG4M-3430-T is certified RoHS compliant, making it suitable for use in markets with stringent environmental regulations. Its manufacturing aligns with established military standards for connectors, supporting global deployment where uniformity, reliability, and safety are paramount. UL-certified flat cables (UL2651, UL20012, UL20028) are also supported, further attesting to system-level compliance in a diverse range of applications.

Conclusion

The XG4M-3430-T rectangular IDC connector from Omron Electronics Inc-EMC Division is a trusted choice for engineers and procurement specialists aiming for reliable, standardized, and versatile interconnections in industrial and embedded systems. Its conformity to MIL standards, proven mechanical and electrical robustness, compatibility within the broader XG4 family, and a wide selection of accessory options position it as a cornerstone solution in robust flat cable interconnection schemes. For projects demanding long-term reliability, dense integration, and compliance with international standards, the XG4M-3430-T stands as a compelling and future-ready component.
