Microchip Technology MIC2568-0YSM

Introduction to the MIC2568-0YSM Dual-Slot PC Card/CardBus Power Switch Controller

The MIC2568-0YSM from Microchip Technology is a robust dual-slot PC Card/CardBus power controller tailored for applications requiring flexible, safe, and efficient voltage switching between 3.3V and 5V. Offering a complete single-chip solution, the MIC2568-0YSM integrates a power switch matrix for both VCC and VPP supplies, specifically addressing the requirements of PCMCIA slot power management. The device supports seamless transition among voltages (0V, 3.3V, 5V for VCC; 0V, 3.3V, 5V, or high impedance for VPP), delivering output currents up to 1A for VCC and 250mA for VPP. The controller guarantees well-controlled voltage rise and fall times to protect sensitive card loads and incorporates advanced protection features including thermal shutdown, current limiting, and cross-conduction lockout. It is available in space-efficient 28-pin SSOP and TSSOP packages, making it a viable choice for both portable and desktop system designs.

Main Attributes of the MIC2568-0YSM Series

The MIC2568-0YSM series is engineered as a comprehensive dual-slot power switch for PC Card and CardBus applications. Its most notable features include:

Complete dual-slot PC Card/CardBus power switching in a single chip, requiring no external components.

Output current limiting and thermal shutdown mechanisms, enhancing both device and system safety.

Ultra-low quiescent current in standby (typically 0.3μA), ideal for battery-powered systems that demand minimal power drain.

Compatibility with standard PC Card logic controllers, supporting both 3.3V and 5V logic supplies for seamless integration.

Controlled switching speeds with break-before-make transition, preventing voltage transients during slot switching.

Digital selection of VCC and VPP voltages, simplifying system-level logic.

Pb-free package options and UL recognition (File #179633).

These attributes collectively ensure reliable operation and flexible voltage management for modern card-based systems.

MIC2568-0YSM Packaging Details and Pin Layout

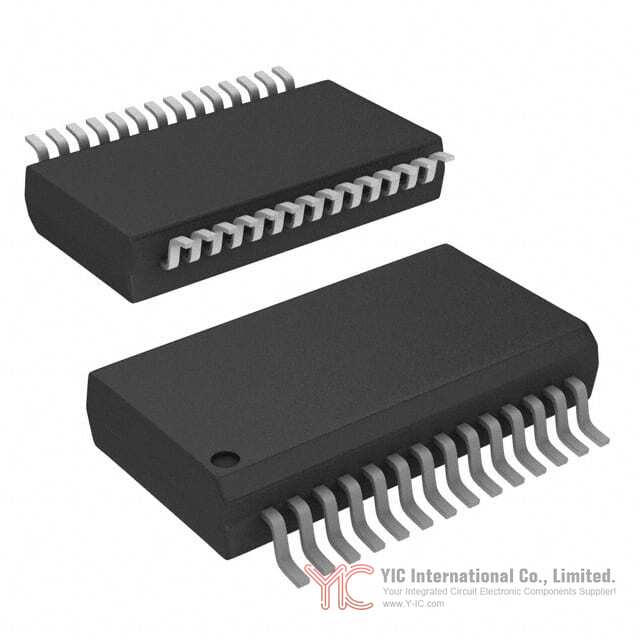

MIC2568-0YSM devices are provided in industry-standard 28-pin SSOP and TSSOP form factors. The pinout is tailored to enable straightforward connection of both slot-A and slot-B supply and control signals. Critical pins include inputs for 3.3V (VCC3 IN) and 5V (VCC5 IN) supply, ground connections, enable lines for both voltage rails, and outputs for VCC and VPP per slot. The design facilitates easy PCB layout and system integration by grouping related signals and minimizing cross-talk between channels. Duplicate supply input pins must be tied together for proper device operation. For signal integrity and noise reduction, careful routing and decoupling around supply and output pins are recommended.

Electrical Specifications and Recommended Working Conditions for MIC2568-0YSM

To ensure optimal performance, selection engineers should note MIC2568-0YSM’s recommended operating conditions:

Supply Voltage Ranges: VCC5 IN (5V): +4.5V to +5.5V; VCC3 IN (3.3V): +3.0V to +5.5V.

Logic Input Voltage: –0.3V to +6V.

Ambient Temperature: –40°C to +85°C, suitable for industrial environments.

Thermal resistance: 84°C/W for SSOP, 100°C/W for TSSOP.

Absolute maximum rating for supply voltage is +6V.

Internally limited junction temperature via thermal shutdown.

Designed to handle the maximum current demand of any conforming PC Card, the MIC2568-0YSM’s built-in protection features mitigate risks associated with overcurrent, thermal runaway, and electrical overstress.

Applications and Integration Methods of the MIC2568-0YSM in PC Card/CardBus Systems

MIC2568-0YSM is optimized for a suite of applications including:

Dual-slot PC Card/CardBus slot voltage switching for both portable and desktop platforms.

Data collection and machine control input systems, where flexible slot power control is essential.

Wireless communication interfaces and instrumentation requiring safe, coordinated card power-up.

Computer docking stations and advanced power supply management circuits.

In a typical integration scenario, four digital control bits per slot govern the VCC and VPP output voltages – thresholds are compatible with standard logic controllers (3.3V or 5V), ensuring interoperability. The device’s break-before-make switching ensures that transitions between voltages do not induce damaging transients, meeting critical PCMCIA timing specifications and safeguarding both system and card hardware.

Implementation Guidelines MIC2568-0YSM Power Input, Switching Logic, and Safeguards

Proper usage of the MIC2568-0YSM dictates attention to its supply input configuration. The primary supply (VCC3 IN) powers internal logic and charge pump circuitry. In systems with only 5V available, VCC5 can be tied directly to VCC3 IN, simplifying single-rail implementations. Output voltage selection and switching are determined by input control lines, with each output slot configurable for ground, active voltage, or high impedance, accommodating various card types and system power states. The controller enters sleep mode, drawing negligible leakage current, whenever all slot outputs are set to ground, benefiting system energy efficiency. Integrated output current limiting and overtemperature shutdown mechanisms protect both the device and system from sustained faults or excessive load, providing long-term reliability.

Design Factors Bypass Capacitor Use and System Protection in MIC2568-0YSM Circuits

For robust operation, both VCC3 IN and VCC5 IN pins should be bypassed with 1μF low-ESR surface-mount ceramic capacitors, positioned close to the device to minimize supply noise and voltage ripple. Output pins (VCC OUT and VPP OUT) benefit from additional 0.01μF to 0.1μF capacitors, which help suppress switching noise and reduce the risk of ESD-induced damage to downstream PC Card circuits. These practices are critical in densely populated and high-speed systems, where supply integrity and signal stability are paramount. In PC Card slot implementations, careful coordination between mechanical keying, voltage sensing, and logic control is necessary to ensure that each card receives appropriate voltage levels and that switching sequences adhere to industry standards.

Alternative or Replacement Options for the MIC2568-0YSM Model

While the MIC2568-0YSM delivers a unique combination of dual-slot control, integrated protection, and compatibility with PC Card/CardBus standards, engineers evaluating alternatives may consider controllers like the Texas Instruments TPS2206 or the Maxim MAX2206 series, which offer comparable multi-slot power management and switching features. Assessment should weigh parameters such as output current capability, protection level, packaging, and logic compatibility. Always verify controller logic table alignment with your targeted PC Card logic controller to ensure seamless system integration.

Conclusion

: MIC2568-0YSM Series Value for Power Switching Applications

The MIC2568-0YSM from Microchip Technology stands out as a mature, reliable dual-slot power controller for demanding PC Card/CardBus applications. It combines versatility in voltage switching, robust system protection, and simplicity in design integration with low power consumption. With its controlled switch timing, comprehensive protection suite, and proven field performance, the MIC2568-0YSM supports engineers and procurement professionals in building dependable, specification-compliant PC Card powered systems. Its enduring relevance and ease of integration make it an optimal choice for a wide range of industrial, commercial, and consumer electronic platforms.
