Microchip Technology MIC2131-1YTSE

MIC2131-1YTSE Microchip Technology Buck Controller IC Product Summary

The MIC2131-1YTSE from Microchip Technology is a high-voltage, synchronous PWM buck controller IC designed to provide DC-DC step-down conversion in demanding industrial, telecom, automotive, and consumer applications. Housed in a compact 16-pin e-TSSOP package, the MIC2131-1YTSE allows for efficient power management solutions, supporting input voltages from 8V to 40V and offering programmable output voltages as low as 0.7V. This device is a member of the MIC2130/1 family and stands out for its advanced features focused on high speed regulation and low electromagnetic interference (EMI)—essential properties for modern power electronics.

Primary Attributes of MIC2131-1YTSE Microchip Technology Buck Controller IC

The MIC2131-1YTSE offers multiple key attributes that make it suitable for high-performance power supply designs:

8V to 40V input voltage range for compatibility with a variety of supply rails

Output voltage adjustable down to 0.7V, catering to low-voltage digital loads

Fixed frequency PWM control, with selectable 150kHz and 400kHz options for design flexibility

Advanced fast hysteretic control loop (FHyCL) activates during rapid transients for exceptional line/load regulation

Efficiency exceeding 95% enabled by adaptive gate drive and wide MOSFET selection

Current limit programmable via low-side MOSFET RDS(on) sensing, eliminating the need for bulky sense resistors

Internal drivers can support output currents up to 15A

Integrated protection features include programmable soft start, input undervoltage lockout (UVLO), output over-voltage protection, and power-good output for sequencing

Unique to the MIC2131 variant is a LOW EMI option, including frequency dithering for noise reduction and a “High Current Limit” (HCL) allowing temporary output current doubling for dynamic loads

Junction temperature range covers industrial requirements from -40°C to +125°C

Common Uses for MIC2131-1YTSE Microchip Technology Buck Controller IC

Engineers can deploy the MIC2131-1YTSE in multiple industries and demanding power environments:

Industrial and medical point-of-use DC/DC conversion

Printer head drivers benefitting from precise low-voltage rail generation

Automotive systems requiring robust, high input voltage tolerance

Telecom systems with sensitivity to switching noise (EMI)

LCD and plasma televisions where regulated low voltage rails and low noise are critical

Gaming machines and any application with high dynamic loading and strict EMI requirements

Electrical Characteristics of MIC2131-1YTSE Microchip Technology Buck Controller IC

The operating parameters for the MIC2131-1YTSE highlight its robustness and flexibility:

Supply voltage: 8V to 40V nominal (absolute max 42V)

Output voltage: 0.7V to 0.85 x VIN (set via external feedback/voltage divider)

Output current capability: internal drivers support up to 15A through external MOSFETs

Operating junction temperature: -40°C to +125°C

Package thermal resistance: e-TSSOP (θJA=97.5°C/W, θJC=29.9°C/W)

ESD rating: 1.5KV (human body model)

Logic input voltage: up to 6.5V

Enable input: up to VIN

Additionally, the device features a programmable input UVLO and offers robust protection against faults and extreme transient events.

Functional Design and Working Principle of MIC2131-1YTSE Microchip Technology Buck Controller IC

At the heart of the MIC2131-1YTSE is a dual-mode control loop architecture. During steady-state and moderate output changes, the IC runs in fixed frequency, voltage-mode PWM control using its internal error amplifier and compensation network. When experiencing fast, large transients (over ±6% output deviation), the device invokes its fast hysteretic control loop (FHyCL), temporarily bypassing the standard loop to rapidly restore output voltage. This adaptive approach ensures optimal transient response without compromising stability in normal operation.

Soft start circuitry manages output ramp-up behavior, preventing surges and ensuring reliable start-up. The MIC2131-1YTSE uses the low-side MOSFET’s RDS(on) for current sensing, providing overload protection without external sense resistors—a space-saving and efficient solution.

The LOW EMI option in MIC2131-1YTSE employs pseudo-random frequency dithering, spreading energy peaks and reducing conducted and radiated EMI. The high current limit feature, also exclusive to MIC2131-1YTSE, enables brief doubling of output current, valuable in applications with peak load demands.

Gate drivers are designed for both high- and low-side N-channel MOSFET operation, leveraging a bootstrap circuit for optimal high-side drive. Adaptive gate drive timing minimizes shoot-through and transition losses, allowing support for MOSFETs with wide parameter variations and high efficiency.

Fault Management and Protective Features in MIC2131-1YTSE Microchip Technology Buck Controller IC

Protection strategies in MIC2131-1YTSE are comprehensive:

Output overcurrent is detected via low-side MOSFET RDS(on); the controller supports “soft short” mode (gentle output voltage reduction on mild overload) and “hard short” mode (full hiccup restart on severe overloads)

Under-voltage protection triggers the fast hysteretic loop, while over-voltage causes immediate shutdown and latching off unless the device is manually reset

Power Good indicator simplifies sequencing and monitoring in multi-rail systems

Programmable UVLO secures startup only when input supply is adequate

Integrated soft-start avoids startup surge currents and supports quick fault recovery

Design Considerations and Part Selection for MIC2131-1YTSE Microchip Technology Buck Controller IC

Designing with the MIC2131-1YTSE requires meticulous selection of passive components for reliability and performance:

Inductor selection must balance ripple current, efficiency, and physical constraints; higher inductance reduces losses and improves RMS current ratings

Output capacitors need low ESR and sufficient ripple current capability; a mix of multi-layer ceramic and tantalum capacitors can optimize performance and stability

Input capacitors must support high pulse currents and suppress input rail noise; close decoupling of MOSFETs with ceramics is recommended

Power MOSFET choice is critical, as RDS(on), switching speed, and thermal dissipation must align with regulator and load requirements; calculations for static and transition losses and gate charge help select the right devices and avoid thermal runaway

Current limit resistors should be dimensioned per load requirements and MOSFET RDS(on); both simple and advanced calculation methods are provided for accurate protection settings

Engineers designing for tight thermal and EMI limits, high transient loads, or space-constrained boards will find the guidance in the MIC2131-1YTSE documentation invaluable.

Control Loop Optimization Techniques with MIC2131-1YTSE Microchip Technology Buck Controller IC

System stability is ensured via a flexible compensation architecture on the IC’s COMP pin. The error amplifier gain and phase can be tailored through external resistor and capacitor networks—with the exact configuration depending on output capacitor type (ceramic capacitors often require type III compensators). Engineers are guided to set zero and pole frequencies to maximize phase margin and prevent overshoot/undershoot during transients. Robust compensation practices enable a crossover frequency at 1/10 of switching frequency, tailored for high performance.

Packaging Details of MIC2131-1YTSE Microchip Technology Buck Controller IC

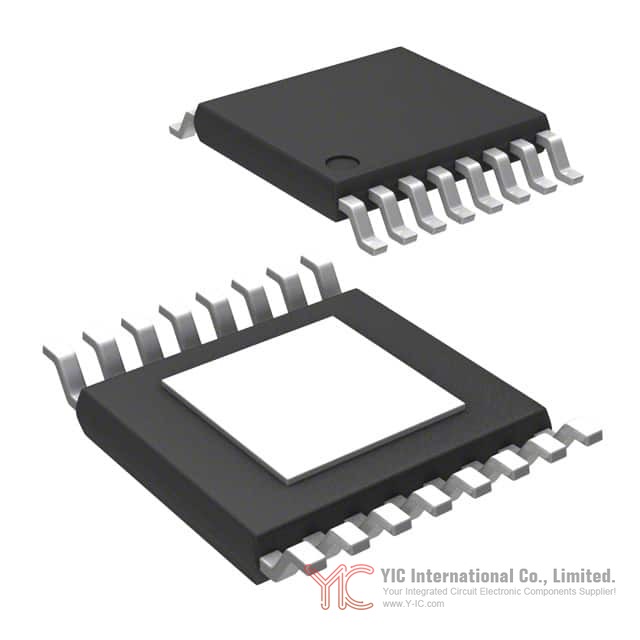

The MIC2131-1YTSE comes in a 16-pin e-TSSOP package with a junction temperature range of -40°C to +125°C, and features excellent thermal performance for compact designs. A 16-pin 4mm x 4mm MicroLeadFrame (MLF) package is also available within the MIC2130/1 family for wider application compatibility. Both packages are designed for efficient heat dissipation, maximizing reliability in high-current, high-power environments.

Alternative and Substitute Options for MIC2131-1YTSE Microchip Technology Buck Controller IC

When specifying or replacing the MIC2131-1YTSE, engineers may consider the broader MIC2130/1 family (including MIC2130 and MIC2131 in various package types), as these share core functionality but may lack certain advanced features like low EMI or high current limit. Depending on system requirements, alternative synchronous buck controller ICs from Microchip Technology or other vendors with similar voltage mode control, wide input ranges, and advanced fault protection features can be evaluated. Compatibility in packaging, frequency options, and protection schemes should be ensured during selection.

Conclusion

The MIC2131-1YTSE from Microchip Technology offers a robust, flexible foundation for power supply design in applications demanding high input voltage tolerance, exceptional transient response, and minimal EMI. Its dual-mode controller architecture, advanced protection features, and flexible component selection guidance equip product selection engineers and procurement specialists with a toolset for efficient, reliable, and cost-effective DC-DC power conversion. With its thoughtful packaging, high efficiency, and the ability to scale for a range of output currents, the MIC2131-1YTSE stands as a reference solution for demanding power electronics design projects.
