Macronix MX29F200CBTI-70G

Product Summary MX29F200CBTI-70G Macronix 2Mbit Parallel NOR Flash Memory

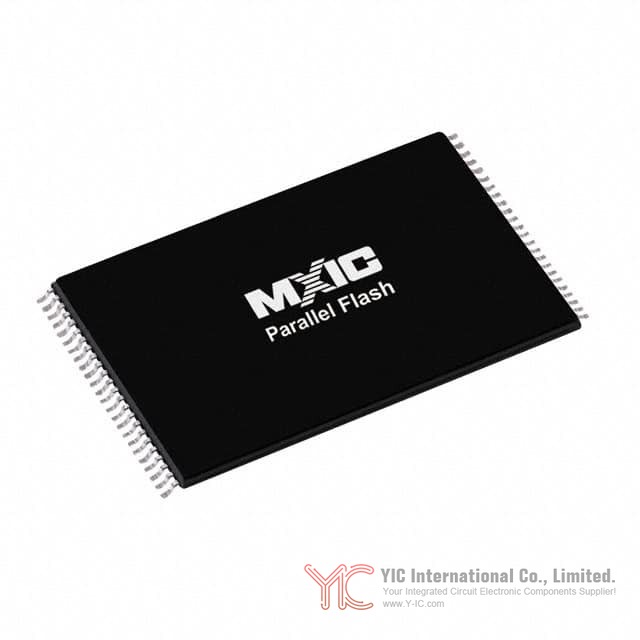

The MX29F200CBTI-70G from Macronix is a high-performance 2Mbit (256K x 8 / 128K x 16) single-voltage parallel NOR flash memory device. Delivered in a 48-pin TSOP package, it is designed for boot code storage, embedded system firmware, and applications demanding reliable non-volatile memory. Its architecture supports top or bottom boot sector configurations, enabling engineering flexibility in system design.

Main Attributes and Design Structure of MX29F200CBTI-70G

The MX29F200CBTI-70G provides robust single power supply operation, requiring only 4.5V to 5.5V for read, erase, and program operations, simplifying power architecture compared to multi-voltage solutions. Sector architecture consists of a combination of 16K-Byte, 8K-Byte, 32K-Byte, and multiple 64K-Byte sectors, tailored for varying code size and update frequency.

The device supports switchable data organization, either 8- or 16-bit operations, and is JEDEC-compatible in both pinout and software, assuring drop-in compatibility with existing designs using standard parallel NOR flash memories. Sector protection can be statically or temporarily enabled via hardware, allowing selective write/erase permissions critical for firmware integrity.

Latch-up protection to 100mA from -1V to Vcc+1V ensures robust reliability in adverse electrical environments, while the device accommodates both top and bottom boot sector mappings (MX29F200CT and MX29F200CB respectively).

Performance Parameters of MX29F200CBTI-70G

The MX29F200CBTI-70G is optimized for speed and reliability, with a 70ns access time and typical byte/word programming times of 9µs/11µs. Sector erase operations are completed in approximately 0.7s, with total chip erase achievable in 4s under typical ambient conditions (25°C, 5V).

Power efficiency is ensured, with active read current capped at 40mA (max) at 5MHz, and standby current as low as 1µA (typical). The endurance specification guarantees minimum 100,000 program/erase cycles, backed by 20-year data retention, making the device well-suited for long lifecycle applications such as industrial controls and mission-critical instrumentation.

Functionalities and Operation Modes of MX29F200CBTI-70G

Device operation leverages a comprehensive set of read, write, and reset commands, with command protocols designed for operational safety and flexibility. After power-up or reset, the MX29F200CBTI-70G enters read array mode, outputting stored data per supplied address.

Writing and programming require precise signal controls: WE# and CE# asserted low, OE# high, with address and data latched according to clock edges. Command sequences for programming and erasing are carefully defined to avoid inadvertent device states; invalid commands are rejected to preserve device integrity.

Erase suspend/resume capability permits reading or programming of unaffected sectors during erase cycles, a feature advantageous in real-time system updates. Status mechanisms—Data# Polling and Toggle Bits—allow engineers to monitor completion of program and erase operations, facilitating robust firmware management in embedded scenarios.

Security Features of MX29F200CBTI-70G

Ensuring data integrity is a key consideration for non-volatile memories. The MX29F200CBTI-70G employs hardware sector protection, enabling selective lockout of sectors from program/erase operations. Sector protection and chip unprotect operations are activated by applying a specific high voltage (Vhv, 11.5V–12.5V) to the RESET# pin.

Temporary sector unprotect can be invoked for in-field updates in previously locked sectors. This mechanism is reversed simply by removing Vhv. The sector protect status is hardware-verifiable with dedicated commands, providing clear feedback for system diagnostics.

Additional safeguards include write pulse glitch filtering—input pulses shorter than 5ns are ignored, logical inhibit capabilities, and automatic transition to read mode upon power-up, reducing the risk of accidental data alteration.

Programming, Erase, and Suspension Procedures for MX29F200CBTI-70G

Programming in MX29F200CBTI-70G is handled automatically through internal algorithms which verify each bit written ("1" → "0"), generating and repeating program pulses as necessary to guarantee reliability. Write status can be monitored via polling, toggle bits, and RY/BY# (Ready/Busy) output, allowing integration into system health monitoring routines.

Erase operations can be carried out on specific sectors or as a complete chip erase, using multi-step command cycles for safety. Sector erase suspend allows the system to perform high-priority actions—such as reading unaffected sectors or programming new data—while erase operations are paused, promoting application responsiveness.

Engineering logic dictates that only previously unprotected sectors can be programmed or erased, thus careful use of sector protection and relevant verification is necessary. Robust reset command implementation enables recovery from operation failures or entry into read mode from device identification or status states.

Electrical Characteristics and Preferred Operating Conditions for MX29F200CBTI-70G

The MX29F200CBTI-70G is specified to operate reliably from 4.5V to 5.5V, with recommended decoupling of Vcc and GND via a 0.1µF capacitor to suppress noise. DC characteristics, AC timing parameters, and switching test waveforms follow JEDEC conventions, supporting design interoperability.

Power-up sequence adherence is critical, as improper signal or voltage timing may produce unpredictable device behavior. Input/output loading, rise/fall times, and reference voltage levels must be considered for accurate timing measurement and system validation, particularly in timing-sensitive applications.

With its RoHS-compliant packaging, the device fits into environmentally sustainable electronics schemes and passes standard latch-up and electrostatic discharge reliability criteria.

Package Information and Physical Details for MX29F200CBTI-70G

MX29F200CBTI-70G is offered in 44-pin SOP (500mil) and 48-pin TSOP (Type I, 12mm x 20mm) configurations. Both package options support standard PCB footprints and automated assembly processes, simplifying integration in volume production.

Engineers should review the pin configuration and capacitance details for both packages as system layout and board signal integrity can be directly impacted by package choice. The TSOP version is particularly suitable for densely packed system boards requiring small-footprint memory solutions.

Possible Alternatives or Substitute Models for MX29F200CBTI-70G

When specifying the MX29F200CBTI-70G in a new design or seeking replacements for ongoing production, engineers should cross-reference compatible parallel NOR flash devices with equivalent sector architecture, access times, and JEDEC command set compliance. Macronix offers both MX29F200CT (Top Boot Sector) and MX29F200CB (Bottom Boot Sector) variants, with device IDs identifying sector mapping for precise compatibility.

Other suppliers may provide 2Mbit parallel NOR flash products with comparable pinouts and programming protocols. However, attention must be paid to specific supply voltages, protection command implementations, and timing specifications to avoid incompatibility, especially in legacy system upgrades or multi-source procurement strategies.

Conclusion

: Engineering decision points for MX29F200CBTI-70G selection

The MX29F200CBTI-70G Macronix 2Mbit Parallel NOR Flash Memory stands as a reliable solution for systems demanding high-speed, robust, and protected non-volatile storage. Its flexible sector architecture, precise command-based operations, and hardware-level data protection support a broad spectrum of embedded and industrial scenarios.

In the product selection process, engineers and procurement specialists should prioritize not only the technical specifications—such as speed, endurance, and operating voltages—but also the operational mechanisms for programming, erase, and protection tailored to application requirements. Cross-comparisons with equivalent models are vital to ensure continuous supply and smooth design-in or device replacement.

For applications where longevity, boot firmware integrity, and parallel NOR interface compatibility are essential, the MX29F200CBTI-70G provides a compelling balance of performance, protection, and integration flexibility.
