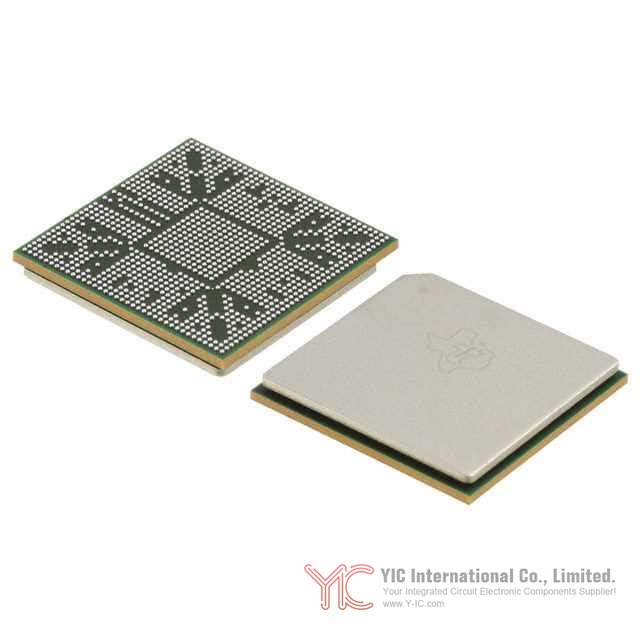

Texas Instruments TMS320DM8168BCYG0

Mfr. Part

TMS320DM8168BCYG0

Manufacturer

Luminary Micro/Texas Instruments

Y-IC is a quality distributor for Texas Instruments-branded products. We deliver genuine parts, fast logistics, and expert support to give you the best products and services.

Detailed Description

High-integration Digital Media System-on-Chip (DMSoC) from TI DaVinci DM81x series. Combines a 720 MHz ARM application processor with a 667 MHz DSP for real-time multimedia. Packed in a 1031-ball FCBGA (25x25 mm). Boot ROM 48 kB, on-chip RAM 1.5 MB. Broad I/O: EBI/EMI, Ethernet, I2C, McASP, McBSP, PCI, Serial ATA, SD/SDIO, SPI, UART, USB. Core voltage 1.00 V, I/O voltages 1.5 V / 1.8 V / 3.3 V. Surface-mount BGA. Series: DM81x Video SoC, DaVinci. Base Product Number: TMS320. RoHS non-compliant.

Key Features

Dual-processing architecture: 720 MHz ARM for applications + 667 MHz DSP for signal processing

Hardware-accelerated digital media pipeline suitable for HD video and complex audio workloads

Rich peripheral set: EBI/EMI, Ethernet, I2C, McASP (multichannel audio), McBSP, PCI, SATA, SD/SDIO, SPI, UART, USB

Memory resources: 48 kB Boot ROM, 1.5 MB on-chip RAM; external DDR supported (see datasheet)

Power rails: 1.00 V core, 1.5 V / 1.8 V / 3.3 V I/O

Package: 1031-ball FCBGA, 25x25 mm body size; supplier device package 1031-FCBGA (25x25)

Operating range: junction temperature 0°C to 95°C (TJ)

Mounting: surface-mount BGA; tray packing for manufacturing

TI DaVinci DM81x ecosystem with proven multimedia software and development tools

Key Advantages

One-chip multimedia solution reduces BOM, board space, and design complexity

Dedicated DSP enables low-latency, real-time processing for audio/video algorithms

ARM core runs operating systems and high-level applications for flexible product development

Extensive interfaces simplify connection to cameras, storage, networks, displays, and audio

Mature TI software ecosystem and community shorten development time

Scales within the DM81x family to meet cost/performance targets

Packaging

Device package type: Fine-pitch flip-chip ball grid array (FCBGA)

Ball count and size: 1031 balls; 25x25 mm body size; ball map in datasheet

Variants: 1031-FCBGA (25x25); some documentation references 1031-BFBGA/FCBGA

Material: flip-chip BGA on organic substrate; RoHS non-compliant (leaded balls)

Mounting: surface mount; standard lead-free or leaded reflow profiles as required by the assembly process

Thermal characteristics: junction temperature up to 95°C (TJ); design for adequate airflow and heat spreading; follow TI thermal guidelines

Electrical properties: 1.00 V core supply; 1.5 V / 1.8 V / 3.3 V I/O; observe decoupling and power sequencing best practices

Shipping format: Tray for automated pick-and-place; ESD-safe handling required

Lifecycle

Status: Mature product in the TI DaVinci DM81x family. Availability can be limited depending on region and date codes. Many new designs have migrated to newer Sitara/Jacinto platforms.

Recommended action: For new designs, evaluate current-generation alternatives. For ongoing production, Y-IC can help plan lifecycle buys and secure supply.

Equivalent or alternative models:

- TMS320DM8167: Similar DM816x family device with adjusted video/peripheral mix; potential cost savings

- TMS320DM8148: DM814x variant aimed at 720p-centric applications; lower performance and I/O versus DM8168

- TMS320DM8127: Cost-optimized DM81x for IP cameras and video capture; fewer interfaces; lower clocks

- Sitara AM5728 / AM5718: Newer TI platforms with higher CPU performance and integrated C66x DSP (software migration required; different peripherals)

- DRA7x (Jacinto 6) family: Automotive-grade TI SoCs with strong multimedia and vision features (environmental and software differences apply)

- NXP i.MX6 Quad / i.MX8M Plus: Non-TI alternatives with robust multimedia, GPU, and connectivity (interface and software changes required)

If you need a direct drop-in equivalent or tailored recommendations, please contact our sales team via the Y-IC website and we will provide a compatibility review and sourcing plan.

Key Application Areas

IP cameras, smart cameras, and video analytics

DVR/NVR and video surveillance recorders

Set-top boxes, OTT streaming boxes, and media gateways

Video conferencing terminals and collaboration endpoints

Digital signage players and interactive kiosks

Broadcast encoders/decoders and transcoding appliances

Medical imaging and diagnostics with multimedia interfaces

Industrial vision, HMI, and embedded multimedia systems

Datasheet

Y-IC provides the most authoritative datasheet for TMS320DM8168BCYG0 on our product page. Download the datasheet now from our website to get full pin maps, electrical specs, timing, boot options, and design guidelines.

Request for Quotation Now

Ready to secure supply and pricing? Get a Quote on Y-IC today. Learn More about stock, lead times, and alternatives. Limited Time Offer for volume buyers and scheduled orders. Our team will respond fast and help you finalize the best sourcing plan.
