Texas Instruments TMS320C6455BCTZ7

Summary of the TMS320C6455BCTZ7 Fixed-Point DSP Product

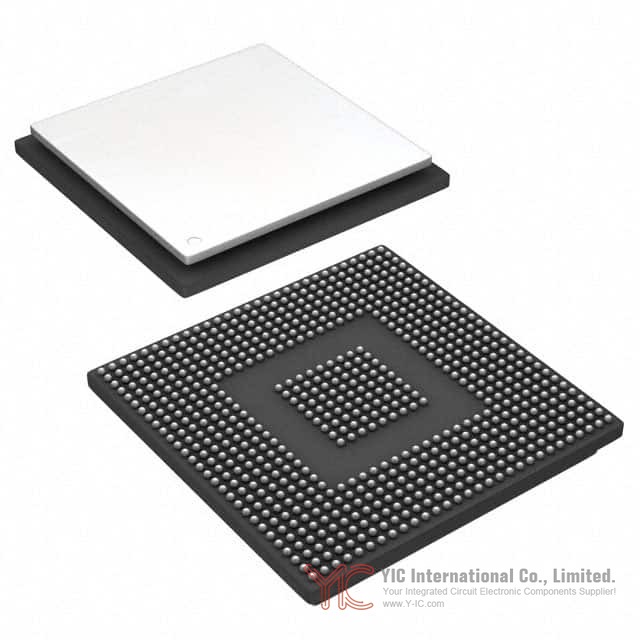

The Texas Instruments TMS320C6455BCTZ7 represents the apex of fixed-point digital signal processing within the TMS320C6000™ family. Tailored for applications such as video/telecom infrastructure, imaging, and wireless systems, this device delivers extreme computational density—reaching up to 9600 MIPS/MMACS at a 1.2-GHz clock rate. Manufactured in a 90 nm/7-layer copper CMOS process and packaged in a compact 697-ball FCBGA, the TMS320C6455BCTZ7 is positioned to address performance-demanding yet cost-sensitive applications in commercial and extended temperature environments.

Main Architectural Characteristics of the TMS320C6455BCTZ7

At the heart of the TMS320C6455BCTZ7 is the TMS320C64x+™ DSP core based on advanced VelociTI™ VLIW architecture. This core empowers the device to issue eight 32-bit instructions per clock cycle, featuring two highly efficient multiplier units (delivering up to eight 16x16 MACs/cycle) that are invaluable for high-throughput communications and imaging signal chains.

Noteworthy enhancements over previous generations include:

Support for compact 16-bit instruction encoding for improved code density.

Dedicated SPLOOP instruction buffer for efficient software pipelining and loop optimization.

Hardware exception handling and privilege support, critical for robust RTOS implementations.

Feature-rich arithmetic logic for real and complex data types, including optimized SIMD and Galois field operations.

Internal Memory Architecture of the TMS320C6455BCTZ7

The TMS320C6455BCTZ7 employs a hierarchical memory structure designed to deliver low-latency data access for intensive DSP tasks:

Level-1 Program (L1P) and Data (L1D) caches: 32KB each, configurable as mapped RAM or cache (L1P is direct-mapped; L1D is two-way set associative).

Level-2 (L2) unified memory: 2048KB, flexibly partitioned between mapped RAM and 4-way set associative cache.

L2 ROM: 32KB for boot and diagnostic routines.

This memory architecture is further supported by a 256-channel EDMA3 controller, enabling high-bandwidth, low-overhead data movement on- and off-chip with minimal CPU intervention.

Peripheral Integration and Interface Options for the TMS320C6455BCTZ7

Designed for integration into complex digital systems, the TMS320C6455BCTZ7 features a comprehensive array of on-chip peripherals:

High-speed Serial RapidIO: four ×1 links or a single ×4, with rates up to 3.125 Gbps per lane, enabling scalable multiprocessor connectivity.

DDR2 memory controller: 32-/16-bit interface supporting up to 512 MB DDR2-533 SDRAM.

64-bit EMIFA: glueless support for asynchronous (SRAM, Flash) and synchronous (SBSRAM, ZBT SRAM) memories as well as custom logic interfaces such as FPGA/CPLD.

PCI v2.3 compliant 32-bit interface: compatible with both 33/66 MHz buses.

10/100/1000 Mb/s Ethernet MAC, supporting MII, GMII, RMII, and RGMII, crucial for network infrastructure products.

Host Port Interface (16/32-bit), I2C, two McBSPs, 16 GPIOs, and ATM UTOPIA slave port.

Dedicated coprocessors: Enhanced Viterbi (VCP2) and Turbo decoder (TCP2), offloading advanced FEC tasks from the main core.

Peripheral selection is customizable at reset via device configuration pins, allowing trade-offs between resource usage and interface breadth.

Startup Methods and Device Initialization Procedures in the TMS320C6455BCTZ7

System designers benefit from a flexible boot process, with boot mode selection determined by configuration inputs upon reset. Supported modes include:

Host boots (via HPI or PCI), ideal for managed systems with external controllers.

EMIFA ROM, I2C (master or slave), and Serial RapidIO network boot for distributed embedded scenarios.

No-boot option for direct code execution from internal SRAM, supporting rapid prototyping and in-circuit test.

A programmable on-chip bootloader and support for second-level custom boot sequences enhance system startup flexibility for both secure and high-availability designs.

System Setup and Pin Assignment in the TMS320C6455BCTZ7

Given its high pin count and extensive peripheral options, the TMS320C6455BCTZ7 enables significant interface multiplexing so that not all peripherals are required to be active simultaneously. Pin configuration, peripheral enabling, and endianess are latched during device reset based on external resistor arrangements or programmable logic drivers. Device state and status registers provide system firmware with an unambiguous view of the present configuration, facilitating dynamic runtime adaptability. Best practices recommend external pullup/pulldown resistors, especially for pin-strapped configuration modes, to ensure robust logic level determination under all operating conditions.

Clock Configuration and Power Management for the TMS320C6455BCTZ7

Clock generation is provided by two on-chip, independently programmable PLLs:

PLL1: Drives the C64x+ core and most SoC peripherals, supporting programmable multiplication and division for fine-grained frequency adaptation.

PLL2: Dedicated clocking for high-speed subsystems—specifically EMAC and DDR2 memory interface.

Engineers must ensure correct power-up sequencing and employ close-coupled decoupling capacitors to meet noise and stability requirements. Power-down features at both system and module level allow unused or idle sub-systems to be dynamically de-powered for energy savings—a key concern in dense telecom and imaging deployments.

Development and Debugging Tools for the TMS320C6455BCTZ7

The TMS320C6455BCTZ7 is fully supported within the TI Code Composer Studio™ IDE ecosystem, including C/C++/assembly code development, real-time trace, and advanced breakpoint support. The device includes comprehensive boundary scan via IEEE-1149.1 and supports advanced event triggering (AET) for fine-grained system observability. Emulation and trace features enable debug of both standalone and multiprocessor systems, with full backward code compatibility for C6000 DSP platform software migration.

PCB Design, Power, and Signal Integrity Guidance for TMS320C6455BCTZ7 Implementations

Owing to high operating frequencies and interface speeds (such as DDR2, SRIO, and GbE), robust board-level layout and power distribution strategies are essential. Recommendations include:

Minimize length and match impedance on critical signal nets (DDR2, EMAC, SRIO lanes).

Locate decoupling capacitors within <1.25 cm of I/O and core supply pins.

Employ serial termination resistors on EMIFA outputs to control signal reflections.

Strictly adhere to the TI-supplied IBIS models for accurate system timing closure and noise analysis.

For unused high-speed interfaces, follow recommended biasing/termination to avoid spurious power draw or JTAG/boundary scan test failures.

Operational Parameters and Reliability Factors for the TMS320C6455BCTZ7

The TMS320C6455BCTZ7 supports operating ranges from 0°C to 90°C (commercial) and –40°C to 105°C (extended) and includes robust ESD protection and industry-standard compliance. Absolute maximum, recommended, and typical electrical specs are detailed for each supply and I/O standard, and designers should ensure operation within these boundaries at all times for reliable platform deployment. For system-level resets, a variety of mechanisms—power-on, warm, system, and CPU—are provided, each with well-defined effects on peripheral state and boot sequencing.

Alternative or Replacement Devices for the TMS320C6455BCTZ7

Engineers evaluating the TMS320C6455BCTZ7 should compare it to other members of the TMS320C64x+ family—such as the TMS320C6454 and TMS320C6457—for differentiated peripheral sets, on-chip memory, and clocking capabilities. System design requirements, including desired performance tier, interface mix (e.g., PCIe, RapidIO), or operating temperature, should guide part selection and potential migration. For applications requiring floating-point support or different memory hierarchies, the TMS320C67x and other TMS DSP families may also be considered as suitable alternatives, subject to firmware and system validation.

Conclusion

The TMS320C6455BCTZ7 from Texas Instruments is a highly versatile, powerful fixed-point DSP designed for demanding signal processing roles in infrastructure, imaging, and wireless communication. Its leading-edge VLIW core, scalable memory subsystem, and breadth of integrated high-performance peripherals address the needs of both architects seeking throughput and designers focused on integration and power efficiency. Utilizing the detailed guidelines and technical insights provided above will enable engineers and procurement specialists to confidently specify, evaluate, and deploy the TMS320C6455BCTZ7 in their advanced embedded platforms.
