Texas Instruments SN74HCS365PWR

SN74HCS365PWR Overview Hex Buffer and Line Driver

The Texas Instruments SN74HCS365PWR is a high-performance CMOS hex buffer and line driver tailored for robust signal management in digital systems. Housed in a 16-pin TSSOP package, the device features six independent non-inverting buffers with 3-state outputs and Schmitt-trigger inputs, making it well-suited for applications requiring high noise immunity and flexible bus interfacing. The dual-output enable (OE) structure allows for advanced signal control and system isolation.

Essential Attributes of SN74HCS365PWR

The SN74HCS365PWR offers a diverse set of capabilities beneficial for both design engineers and component specifiers:

Wide operating voltage range: 2 V to 6 V, supporting a broad spectrum of logic families and supply systems

Schmitt-trigger inputs provide excellent noise rejection and robust handling of slow input transitions

Low power consumption: typical ICC of 100 nA, minimizing quiescent supply draw for energy-sensitive designs

High output drive: ±7.8 mA at 6 V enables efficient signal driving over longer traces or multiple loads

Industry-standard 3-state outputs for effective bus sharing

Extended temperature range: -40°C to 125°C, suitable for industrial and harsh environment applications

SN74HCS365PWR Usage in Digital Applications

The SN74HCS365PWR addresses key scenarios where signal quality and control are crucial:

Buffering or enabling/disabling digital signals within shared bus architectures

Filtering out slow or noisy input signals, such as de-bouncing mechanical switches

Maintaining signal states during controller resets or power sequencing events

Serving as an interface between imbalanced domain voltages, or isolation between system blocks

Its inclusion of Schmitt-trigger inputs ensures accurate digital signal recognition, even in electrically noisy environments.

SN74HCS365PWR Functions and Operating Modes

Internally, the SN74HCS365PWR is partitioned into six identical buffer/driver channels, each governed by common (OE1 and OE2) enable signals. When both enables are LOW, the device passes input signals directly and non-inverted to the outputs. Raising either enable places all outputs into the high-impedance state, allowing systems to share buses without contention or provide fail-safe isolation.

The Schmitt-trigger architecture used for all data inputs imparts hysteresis, so slow or noisy transitions are tolerated without spurious toggling. The device’s balanced CMOS push-pull outputs are designed for performance and predictable edge rates, reducing signal integrity issues due to mismatched terminations or long interconnects.

SN74HCS365PWR Electrical and Heating Properties

The electrical profile of SN74HCS365PWR aligns with demanding digital requirements:

Absolute maximum ratings protect the device from overvoltage, overcurrent, and thermal overstress (refer to datasheet for detailed parameters)

Guaranteed ESD performance: 500 V (HBM), 250 V (CDM) for standard handling and assembly practices

Input leakage currents confined to ±100 nA

Compatible with standard CMOS input/output logic levels across supply voltages

Switching characteristics: controlled propagation delays and output transition times suitable for MHz-range signals; the device is characterized for capacitive loads up to 50 pF

Thermal variables and package dissipation should be managed according to typical small-outline package guidelines; ensure junction temperature remains under datasheet Tj(max)

Design Tips for SN74HCS365PWR Implementation

Deploying the SN74HCS365PWR in a design calls for attention to several technical factors:

All unused CMOS inputs should be tied to either VCC or ground to avoid undefined states

Schmitt-trigger inputs require no minimum transition rate, but slow signals do marginally increase dynamic power

The high-current drive can induce ringing if lines are unterminated; series damping resistors may be needed for signal integrity over long traces

Outputs should never be directly tied together or to a fixed voltage; parallel outputs can be used for redundancy if fed identical signals

Unused outputs can be left floating; internal clamp diodes protect against minor excursions beyond standard logic voltages

Power, PCB Layout, and Integration Advice for SN74HCS365PWR

Optimal operation of the SN74HCS365PWR depends on robust PCB and power distribution design:

Bypass capacitors (at least 0.1 μF, with the option to parallel up to 1 μF) must be placed close to VCC and GND

Maintain capacitive loading per output ≤50 pF for rated switching performance

Follow best practices for digital layout: short, direct traces; avoid floating inputs; and separate noisy analog and power traces from logic signals

Parallel application documentation provides further insight into power consumption and PCB thermal management

SN74HCS365PWR Physical and Package Specifications

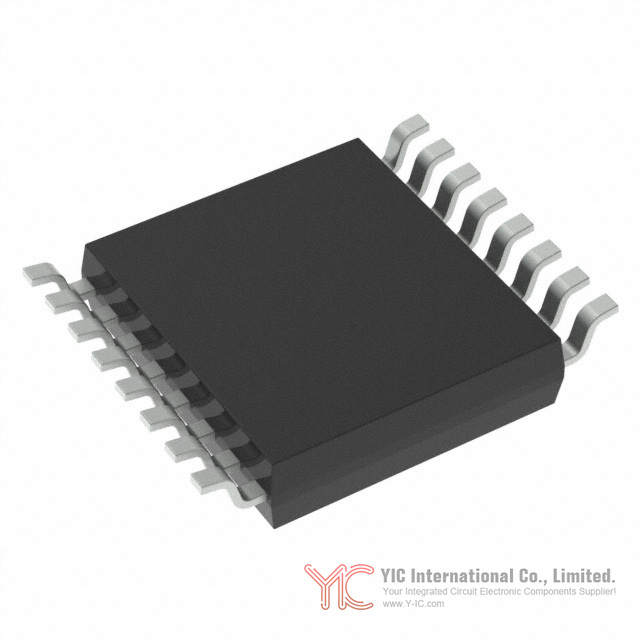

The SN74HCS365PWR is offered in a 16-pin Thin Shrink Small-Outline Package (TSSOP):

JEDEC-compliant package outlines ensure compatibility with high-density board designs

Maximum package height of 1.2 mm supports low-profile assemblies

Mechanical documentation includes board layout recommendations and solder stencil designs, ensuring manufacturability and reliable solder joints

Moisture sensitivity, lead finish, and RoHS/environmental compliance support automated, modern assembly practices

Alternative or Substitute Options for SN74HCS365PWR

For engineers needing footprint or functionality alternatives, Texas Instruments supplies an automotive-qualified version (SN74HCS365-Q1), intended for high-reliability and mission-critical automotive systems. When considering replacements, ensure electrical, package, and temperature ratings are cross-checked to match or exceed SN74HCS365PWR specifications. Comparable hex buffer/line drivers with 3-state outputs and Schmitt-trigger inputs from other family or industry-standard series could also be considered, subject to logic compatibility and quality requirements.

Conclusion

The Texas Instruments SN74HCS365PWR hex buffer and line driver delivers a compelling set of features for modern digital circuit design, including robust Schmitt-trigger input handling, high current drive, low power operation, and versatile enable-controlled signal management. Its wide voltage and temperature range, coupled with practical PCB integration guidelines and packaging options, make it a strong candidate for both new designs and upgrades in industrial, instrumentation, and control applications. By understanding its unique attributes and adhering to recommended design practices, engineers and procurement professionals can leverage SN74HCS365PWR for noise-resistant, efficient, and flexible digital system architectures.
