Texas Instruments AM4372BZDNA60

Mfr. Part

AM4372BZDNA60

Manufacturer

Luminary Micro/Texas Instruments

Y-IC is a quality distributor for Luminary Micro/Texas Instruments. We provide genuine TI Sitara products with reliable supply, competitive pricing, and responsive support.

Detailed Description

Sitara AM4372 single-core ARM Cortex-A9 processor running up to 600 MHz, designed for embedded industrial and commercial systems. Supports LPDDR2, DDR3, DDR3L memory. Dual Gigabit Ethernet MACs, two USB 2.0 ports with integrated PHY, a touch screen controller and WXGA display interface. Hardware crypto accelerator for secure communications. Wide peripheral set including CAN, I2C, SPI, QSPI, UART, McASP audio, MMC/SD/SDIO, HDQ/1-Wire. Industrial temperature range from -40°C to +105°C (TJ). RoHS3 compliant. Packaged in a compact 491-ball NFBGA 17 x 17 mm for high-density designs.

Key Features

ARM Cortex-A9, single core, 32-bit, up to 600 MHz

Dual 10/100/1000 Mbps Ethernet MACs

USB 2.0 x2 with integrated PHY

Memory controllers for LPDDR2, DDR3, DDR3L

NEON SIMD for multimedia acceleration

Hardware crypto accelerator for security

Touch screen controller and WXGA display interface

Rich connectivity: CAN, I2C, SPI, QSPI, UART, McASP, MMC/SD/SDIO, HDQ/1-Wire

Industrial temperature TJ -40°C to +105°C

RoHS3 compliant and lead-free

Surface-mount BGA for compact layouts

Key Advantages

Strong I/O and connectivity reduces external components and BOM cost

Integrated USB PHY simplifies design and saves board space

Dual Gigabit Ethernet enables advanced networking and gateway applications

Flexible memory options fit performance and power targets

Hardware security engine protects keys and data without heavy CPU load

Wide industrial temperature range supports harsh environments

Mature Sitara ecosystem with broad OS and tool support accelerates development

Scalable within the AM437x family for feature upgrades without major redesign

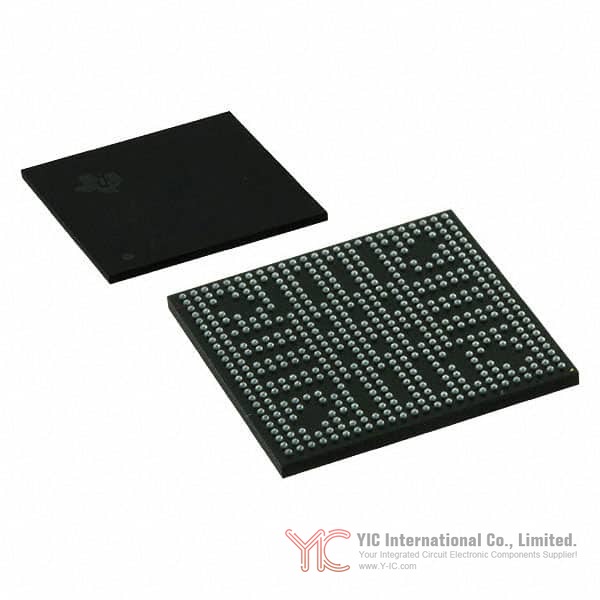

Packaging

Type: NFBGA / LFBGA, low-profile fine-pitch ball grid array

Body size: 17 x 17 mm

Ball count: 491-ball grid

Material: Molded plastic over organic substrate with lead-free SAC balls (RoHS3)

Mounting: Surface Mount

Supplier device package: 491-NFBGA (17x17)

Shipping package: Tray

Pin configuration: 491-ball matrix; ball map defined in the TI datasheet

Thermal characteristics: Junction temperature (TJ) -40°C to +105°C; actual thermal resistance depends on PCB and cooling solution

Electrical properties: I/O voltage domains 1.8 V and 3.3 V; supports LPDDR2/DDR3/DDR3L memories; USB 2.0 with PHY; dual Gigabit Ethernet MACs

Lifecycle

Current status: Active in TI’s Sitara AM437x family and widely used in industrial designs

Not indicated as near end-of-life based on current public information; confirm latest status with our team

Pin-compatible or close alternatives within the AM437x family vary by features and speed. Examples:

- AM4372 variants with different speed grades and packages (e.g., higher-speed options)

- AM4376, AM4377, AM4378, AM4379 (feature variations may include 3D graphics, different industrial interfaces, etc.)

Other alternatives for different performance tiers:

- AM335x (ARM Cortex-A8) for lower power and cost, not pin-compatible

- AM57x (higher performance), not pin-compatible

For exact pin-to-pin compatibility and migration guidance, please contact Y-IC via our website. We will help you select the best drop-in or near-drop-in option.

Key Application Areas

Industrial HMI and control panels

PLCs, motor drives, and factory automation

Industrial gateways and edge computing for IIoT

Building automation and smart energy systems

Medical devices with touch UI and connectivity

POS terminals, kiosks, printers, and scanners

Data acquisition and instrumentation

Networked sensors and embedded Linux systems

Datasheet

Our website hosts the most authoritative, up-to-date datasheet for AM4372BZDNA60. Download it now from this page for complete electrical, mechanical, and layout details.
