LC4256ZE-5MN144C (Lattice Semiconductor CPLD) Product Summary

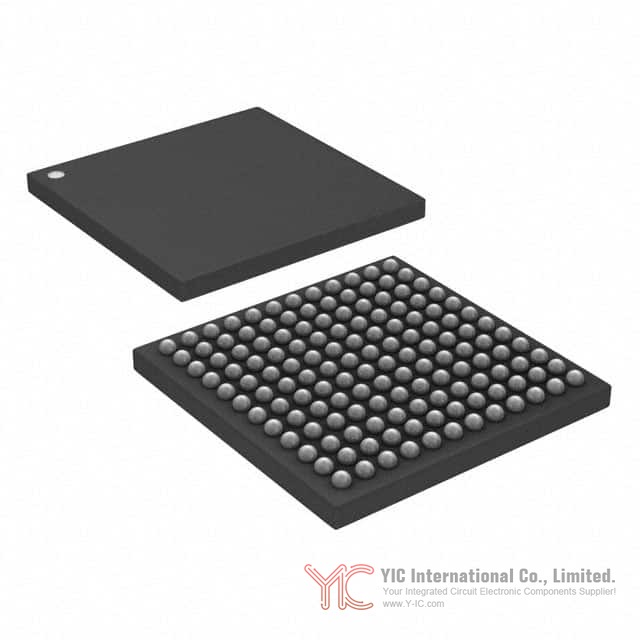

The LC4256ZE-5MN144C from Lattice Semiconductor is a high-density, ultra-low power CMOS CPLD (Complex Programmable Logic Device) and a member of the ispMACH 4000ZE family. Designed for applications requiring up to 256 macrocells, it targets engineers and procurement specialists working on innovative consumer electronics, industrial controls, and embedded systems where power efficiency and high-speed operation are crucial. Offered in a compact 144-ball csBGA package, the device features a 1.8V core supply voltage and is optimized for both performance and power-sensitive scenarios.

Main Features and Performance of LC4256ZE-5MN144C

LC4256ZE-5MN144C delivers standout capabilities, including:

Maximum operating frequency ($f_{MAX}$) up to 260MHz and propagation delay ($t_{PD}$) as low as 4.4ns, enabling implementation of complex, high-speed digital logic.

Ultra-low standby power as low as 10μA (typical), with operation down to 1.6V for robust battery-operated embedded designs.

Four global, programmable clock pins with selectable polarity, up to 80 product terms per output, and per-pin programmable pull-ups, pull-downs, or bus keepers for versatile signal management.

5V-tolerant I/Os, multi-voltage LVCMOS compatibility (1.5V, 1.8V, 2.5V, 3.3V), and full hot-socketing capability for robust system integration and flexible board design across varied voltage domains.

Design Architecture Insights of LC4256ZE-5MN144C

At its core, the LC4256ZE-5MN144C comprises sixteen 36-input Generic Logic Blocks (GLBs), each housing 16 flexible macrocells. These are interconnected by a highly optimized Global Routing Pool supporting excellent timing predictability, first-time-fit, and pin-out retention. The programmable AND array, logic allocator, and wide steering logic within each GLB enable creation of wide combinatorial functions—supporting up to 80 product terms in a single GLB chain.

The device integrates a sophisticated clock distribution system with multiple clock and enable selection paths per macrocell, ensuring optimal performance for fast counters, state machines, and memory address decoding. Initialization and reset features offer block-level and per-macrocell granularity, essential for reliable power-up and flexible in-field design modification.

Power Efficiency and Integration Potential of LC4256ZE-5MN144C

Engineered with advanced full-CMOS $E^2$ cell technology, the LC4256ZE-5MN144C achieves minimal dynamic and static power—without requiring traditional sense amplifiers or external “turbo” bits. The introduction of Power Guard, an innovative Lattice feature, enables isolation of internal logic from unnecessary toggling due to external pin activity, significantly reducing standby current in noise-prone environments.

For seamless system integration, the device supports simultaneous operation with multiple I/O voltage standards via dual power-supplied I/O banks, 5V-tolerant input buffers, and programmable slew rate control—features crucial in designs handling legacy and next-generation signaling on the same PCB. Automated power sequencing, pin programmability, and device-level hot socketing further enhance board-level reliability during live insertion and removal.

Enhanced Input/Output and Connectivity Functions of LC4256ZE-5MN144C

Every I/O pin in the LC4256ZE-5MN144C is individually configurable for standard and open-drain modes and supports LVTTL, LVCMOS (1.5V/1.8V/2.5V/3.3V), and PCI signaling. Slew rate adjustment minimizes signal reflections and ground bounce—crucial for high-speed and high-density PCB layouts. Input hysteresis of 200mV (typical) improves noise immunity, especially in mixed-signal environments.

The device incorporates per-pin and block-level output enable logic, as well as user-programmable pull-up/pull-down/bus-keeper functions for robust bus state retention and board-level test accommodation. Integration of on-chip oscillators and timers allows engineers to implement housekeeping tasks (such as LED control and watchdogs) without discrete timer components, improving BOM efficiency.

Programming, Diagnostics, and Security Aspects of LC4256ZE-5MN144C

The LC4256ZE-5MN144C is fully IEEE 1532 in-system programmable through a boundary scan (IEEE 1149.1) compliant TAP interface, supporting fast, efficient configuration updates and board-level test applications. Quick I/O configuration expedites manufacturing test processes, and strong support within Lattice’s ispVM software ecosystem ensures smooth integration with established development toolchains.

Over 32 programmable user signature bits enable device-level traceability and revision control. For IP protection, a programmable security bit disables readback and reprogramming of configuration, safeguarding proprietary algorithms. The device’s boundary-scan compliance is invaluable in high-volume manufacturing, supporting test sequence automation and reducing time to market.

Packaging Choices and Migration Guidelines for LC4256ZE-5MN144C

Offered in space-saving chip-scale BGA (csBGA) and ultra chip-scale BGA (ucBGA) packages, the LC4256ZE-5MN144C provides high I/O density (up to 144 pins). The ispMACH 4000ZE family is designed for seamless density migration: devices of different macrocell counts share compatible pinouts in common packages, aiding both upward and downward migration without major PCB redesign. This allows cost/performance optimization as project requirements evolve, or as supply-chain conditions change, with minimal risk or time investment.

Electrical and timing specifications

summary

for LC4256ZE-5MN144C

The device operates from a 1.8V core with I/O voltages up to 3.6V (outputs) and supports input voltages up to 5.5V (with proper bank configuration), making it highly tolerant of system-level voltage fluctuations. It guarantees robust operation from -40°C to +105°C (industrial) or 0°C to +90°C (commercial) junction temperature, ideal for demanding environments.

Externally, the device achieves propagation delays as low as 4.4ns and maximum toggle rates up to 260MHz, with flexible timing and product term expansion facilitated by the device’s programmable routing and logic allocator resources. Slew rate and input hysteresis options allow per-pin tuning for application-specific signal integrity.

Potential equivalent/replacement models for LC4256ZE-5MN144C

When evaluating design alternatives or second sources, potential equivalent or replacement models to the LC4256ZE-5MN144C include other members of the ispMACH 4000ZE family—such as LC4128ZE (128 macrocells) and LC4064ZE (64 macrocells)—for lower density requirements within the same package footprint. For functionally similar device types, consider the ispMACH 4000Z and 4000V families if a slightly higher power profile is acceptable or if alternate package options are required.

Engineers should carefully review migration paths, as pin compatibility within the ispMACH 4000ZE family offers both upward scalability and cost reduction opportunities. When replacing with other Lattice Semiconductor CPLDs, be cautious to review timing, power, and voltage specifications for application fit, and ensure any automated boundary scan or programming infrastructure remains compatible.

Conclusion

The LC4256ZE-5MN144C from Lattice Semiconductor represents a balanced solution for engineers needing high-speed, ultra-low standby power programmable logic in modern embedded systems. Its sophisticated architecture, advanced power and I/O management features, and robust programmability make it a compelling choice for new designs and platform upgrades. The flexibility provided by package, voltage, and density options—combined with clear migration and test paths—enables engineering teams and procurement departments to de-risk supply chains and deliver competitive, up-to-date products in dynamic electronic markets.
