Nisshinbo Micro Devices Inc. NJM78L15UA

Summary of NJM78L15UA Linear Voltage Regulator

The NJM78L15UA from Nisshinbo Micro Devices Inc. is a compact, positive fixed linear voltage regulator designed for applications needing a stable 15V regulated output at currents up to 100mA. Utilizing the proven JRC planar epitaxial process technology, the NJM78L15UA delivers reliability and operational simplicity for engineers specifying voltage regulation in a wide range of electronic devices. Offered in the space-efficient SOT-89 package, this device is well-suited for modern PCB layouts where board space and thermal constraints are paramount.

Main Attributes and Technical Benefits of NJM78L15UA

The NJM78L15UA leverages several features that make it a robust choice for power regulation:

Internal Protection Mechanisms: Integrated short circuit current limiting and thermal shutdown circuits provide inherent device safety, reducing risk of catastrophic failure even under adverse conditions.

Consistent Output: Guaranteed delivery of up to 100mA ensures stable voltage regulation for low to moderate current requirements, addressing needs in localized power rails or point-of-load supply architectures.

Superior Ripple Rejection and Low Noise: The device is designed for excellent supply ripple rejection, making it ideal for sensitive analog or mixed-signal systems where noise performance is critical.

Bipolar Technology Platform: This construction enhances the regulator’s performance metrics, reliability, and noise characteristics, benefiting performance-critical applications.

Package Versatility: The NJM78L15UA is primarily offered in SOT-89, providing a compact footprint with efficient thermal characteristics.

Package Information and Pin Layout of NJM78L15UA

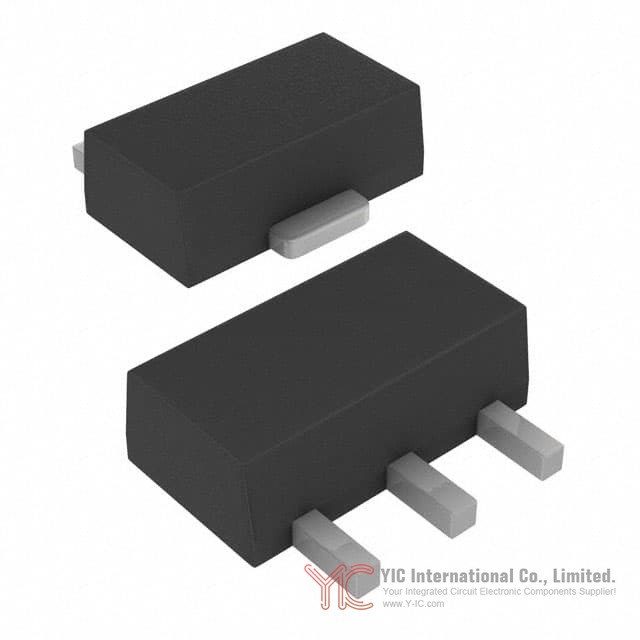

The SOT-89 package offers design versatility, enabling surface-mount integration compatible with automated assembly processes. The three-terminal configuration is straightforward: Pin 1 is Output, Pin 2 is Ground, and Pin 3 is Input. This arrangement simplifies PCB layout and reduces the risk of wiring errors, supporting rapid prototyping and consistent production.

Electrical Specifications and Performance Analysis of NJM78L15UA

When evaluated under standard test conditions ($C_{IN}=0.33\mu F$, $C_{O}=0.1\mu F$, $T_{j}=25^\circ C$), the NJM78L15UA demonstrates the following performance highlights:

Voltage Regulation: High accuracy of the 15V output across input voltage and load variations, maintaining specifications within controlled pulse-testing environments.

Current Handling: Capable of consistent 100mA output, with internal shutdown features that protect both the regulator and downstream components in fault conditions.

Thermal Behavior: Suitable for scenarios with modest heat sinking, as its thermal-shutdown feature provides defense against overheating, while the SOT-89 package efficiently manages typical power dissipation.

Additionally, the device demonstrates enhanced impedance characteristics and reduced quiescent current compared to discrete Zener diode/resistor solutions.

Common Application Examples for NJM78L15UA

The NJM78L15UA finds application across a spectrum of electronic designs, particularly for:

Local voltage regulation on PCBs to mitigate voltage drop or noise from centralized power architectures.

Replacement of discrete Zener/resistor voltage references where superior output impedance and lower noise are required.

Low-power instrumentation, analog front-ends, and small auxiliary supply rails.

Integration with power pass elements for higher current regulation solutions, when needed.

Design Aspects and Power Dissipation Factors for NJM78L15UA

Effective deployment of the NJM78L15UA requires certain engineering considerations:

Capacitor Selection: Suggested values are $0.33\mu F$ for input and $0.1\mu F$ for output capacitors, positioned close to the regulator pins for optimal transient response and noise suppression.

Thermal Management: While the device is robust against over-temperature, engineers should consider the overall power dissipation and available PCB copper area to ensure adequate heat removal, especially in continuous high-load scenarios.

Fault Tolerance: The internal current limiting and thermal protection circuits simplify system-level reliability analysis but careful attention to board-level layout and protection upstream of the regulator is beneficial for long-term performance.

Possible Alternatives or Substitute Models for NJM78L15UA

For designers seeking alternatives to the NJM78L15UA, consideration can be given to other members of the NJM78L00 series, which share similar construction and performance characteristics but offer different output voltages or package options, such as the NJM78L15A (TO-92 package). Additionally, linear regulators from other established manufacturers with similar specifications (15V fixed output, 100mA, SOT-89/TO-92 packages, internal protection features) may serve as functional equivalents, though attention should be paid to detailed electrical characteristics and footprint compatibility.

Conclusion

on the Use of NJM78L15UA in Engineering Projects

The NJM78L15UA linear voltage regulator stands out as a reliable and versatile solution for engineers addressing low-current, precision voltage regulation challenges. Its integrated protections, noise performance, and compact SOT-89 form factor simplify the task of designing robust, space-efficient power subsystems for a variety of electronic products. By understanding its operational characteristics and integration requirements, engineers and procurement professionals can confidently specify the NJM78L15UA for both new and legacy designs requiring stable 15V regulation.
