Infineon Technologies IR3894MTRPBF

Overview of the Infineon IR3894MTRPBF SupIRBuck Family

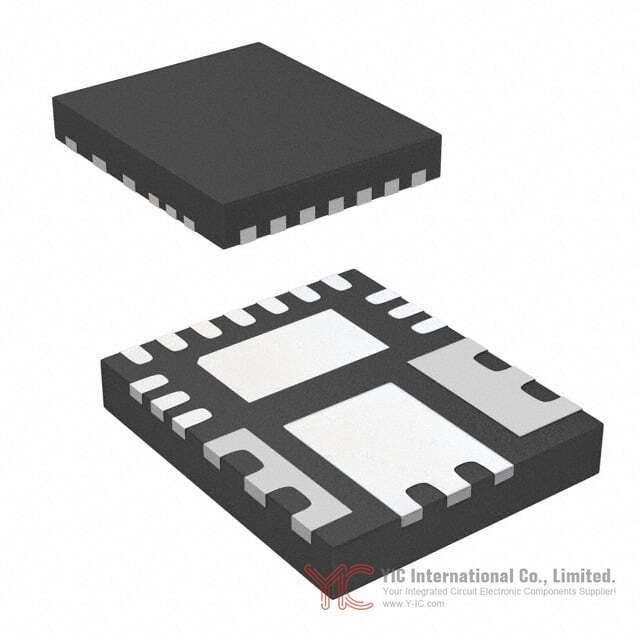

The Infineon IR3894MTRPBF SupIRBuck series provides a highly integrated, single-input, synchronous buck regulator solution designed for modern point-of-load power architectures. Combining both a PWM controller and high-efficiency MOSFETs within a compact 5mm x 6mm 16-PowerVQFN package, the IR3894MTRPBF enables engineers to design space-efficient systems with robust performance for applications requiring precise power delivery. This overview provides product selection engineers and procurement professionals with the practical insights needed to assess the IR3894MTRPBF in advanced DC/DC power management roles.

Main Electrical and Mechanical Attributes of the IR3894MTRPBF

The IR3894MTRPBF’s electrical characteristics are tailored for demanding applications:

Wide Input Voltage Range: Accepts 1.0 V to 21 V for power stage, while the control circuitry operates from 5 V to 21 V with an external Vcc.

Adjustable Output: Supports 0.5 V up to 0.86 × Vin, enabling fine-grained voltage tuning based on system requirements.

High Output Current: Delivers up to ±12 A, making it well-suited for processor core rails, memory, and high-density FPGAs.

Programmable Switching Frequency: Operable from 300 kHz to 1.5 MHz, allowing for performance tuning between efficiency and transient response.

Highly Integrated: The compact PowerQFN package integrates both high-side and low-side MOSFETs and minimizes external component count.

Thermally Robust: Designed for operation between -40°C and +125°C, with a package thermal resistance of 30°C/W junction-to-ambient.

Principal Operating Functions of the IR3894MTRPBF

The IR3894MTRPBF offers advanced features central to modern DC/DC conversion:

Synchronous Rectification: Maximizes efficiency across both light and heavy loads through integrated MOSFET drivers and a smart LDO architecture.

Precision Reference Voltage: 0.5 V ±0.5% margining enables tight setpoint accuracy, indispensable for sensitive loads.

Programmable Soft Start/Stop: Digital soft-start and soft-stop sequences reduce inrush currents and ensure monotonic voltage ramp-up, safeguarding power-up sequencing.

Switching Frequency Synchronization: The device supports external clock synchronization—an essential for minimizing system-level EMI and ensuring inter-regulator harmony.

Enhanced Load/Line Regulation: Internal feed-forward compensation and robust error amplifier design secure dynamic performance, even during step loads.

Pre-Bias Start-Up Capability: Supports seamless powering up of outputs that may have an existing bias due to system sequencing.

System Integration Use Cases and Deployment Options for the IR3894MTRPBF

As a flexible building block, the IR3894MTRPBF is tailored for several modern engineering sectors:

Telecommunications and Networking: Forms ideal core rails for switches and routers.

Server and Data Center Equipment: Powers processors, ASICs, and RDIMM memory with its high current capability and precise regulation.

Storage Systems: Supplies high-availability lines in NAS and SAN infrastructure.

Distributed Point-of-Load: Suits modular architectures, reducing power path losses and boosting efficiency at the board level.

In real engineering use, the IR3894MTRPBF enables single-rail or dual-rail operation, supports margin testing via its reference voltage pin, and features tracking modes for voltage sequencing in systems demanding coordinated rail startup.

Pinout and Design Guidelines for the IR3894MTRPBF

The IR3894MTRPBF’s 16-pin PowerQFN pinout is engineered for straightforward PCB design while supporting flexible system architectures:

The primary feedback pin (Fb) allows for adjustable output voltages via a resistor divider.

The reference and tracking pins (Vref, Vp) afford sequencing and voltage margining.

Rt/Sync pin is dual-purposed for switching frequency programming or synchronization via an external clock.

Power Good (PGood) status output and Enable pins offer handshake points for supply monitoring and system-level power sequencing.

Dedicated ground and power ground pins ensure optimal layout practices, separating signal integrity from noisy power return paths.

Engineers should apply standard layout practices—such as minimizing loops between input and power grounds, using appropriate decoupling on the LDO output, and correctly sizing passives for compensation and frequency selection—to extract the best-in-class transient and steady-state performance.

Protection and Monitoring Mechanisms in the IR3894MTRPBF

Robust protection and monitoring are central to the IR3894MTRPBF’s value proposition:

Over-Current Protection (OCP): Provides a thermally compensated current limit using hiccup mode for fault recovery.

Over-Voltage/Under-Voltage Protection (OVP/UVLO): Monitors the output and reference voltages in real time, with precise trip thresholds for system safety.

Power Good Output: Supports remote monitoring, with precision detection of both underand over-threshold conditions.

Thermal Shutdown: Integrated protection for junction temperatures exceeding safe operation.

Internal LDO Faults: Smart LDO implements dropout and short-circuit detection.

Electrical Characteristics and Performance Metrics of the IR3894MTRPBF

Detailed performance highlights based on datasheet testing conditions:

Low Switch Losses: Power stage losses at 12 V in / 1.2 V out, 12 A load, and 600 kHz switching fall near 2.1 W, which is robust for a sub-6 mm package at high current.

Tight Output Accuracy: Reference tracking between -0.5% and +0.5% at 0–70°C means minimal post-regulation is required.

High-Speed Dynamic Response: Capable of a gain-bandwidth product of typically 30 MHz and a slew rate up to 20 V/μs.

Standby Current: Stays under 0.1 mA with the device disabled, supporting deep sleep or standby architectures.

Noise Immunity: Minimum pulse width down to 60 ns and programmable ramp amplitude support high switching frequency operation with reliable noise margins.

Qualification, Environmental Factors, and Reliability Data for the IR3894MTRPBF

The IR3894MTRPBF meets the following:

RoHS 3 and REACH compliance for global environmental regulations.

Moisture Sensitivity Level (MSL) 2, enabling a one-year floor life for typical production and logistics cycles.

ESD classification up to 2 kV (HBM JESD22-A114).

Lead-free, halogen-free certification for eco-sensitive designs.

Full operation and storage assured from -40°C to +150°C, with a stated junction range and well-defined derating policies.

Alternative or Substitute Models for the IR3894MTRPBF

With the IR3894MTRPBF marked obsolete, engineers must consider alternatives with similar electrical, thermal, and system integration characteristics. Key parameters for successful cross-matching include input voltage range (1–21 V), output current (≥12 A), feature set (such as programmable soft start/stop, feed-forward regulation, and protection mechanisms), and industry-standard QFN or similar compact packaging. Consider searching within the Infineon SupIRBuck family or evaluating equivalents from other power management leaders that satisfy the same requirements for new designs or form/fit/function replacements in existing systems.

Conclusion

The Infineon IR3894MTRPBF SupIRBuck is a powerful, feature-rich synchronous buck regulator IC that enables highly integrated, flexible, and efficient point-of-load power conversion across telecommunications, server, and embedded applications. With its precise regulation, programmable features, and comprehensive protection suite, it empowers design teams to deliver high-reliability systems in demanding environments. As availability status changes, knowledge of the IR3894MTRPBF’s capabilities and specifications will facilitate informed migration to suitable replacements, supporting both new designs and maintenance of legacy systems in the field.
