NXP USA Inc. MPC850DECVR50BU

Introduction to the NXP MPC850DECVR50BU

The NXP MPC850DECVR50BU is a member of the MPC8xx microprocessor family, embodying a high level of integration and flexibility for embedded communications, controller, and networking applications. Built around a 32-bit PowerPC-compliant core running at up to 50 MHz, this processor is offered in a compact 256-ball plastic ball grid array (PBGA) package (23x23 mm), providing a balance of processing performance and connectivity. It is specifically targeted at remote access, cost-sensitive telecommunications, and networking equipment where high integration and reliable communications handling are crucial.

Main attributes of the MPC850DECVR50BU

The MPC850DECVR50BU leverages a PowerPC-based embedded core with a single-issue, 32-bit architecture, supported by a Harvard-style cache system with a 2KB instruction cache and a 1KB data cache. A combination of 32 general-purpose registers, advanced branch prediction, and a memory management unit featuring multiple page sizes and protection groups empowers the device for demanding embedded scenarios. The integrated Communications Processor Module (CPM) offloads peripheral and communication tasks using an independent RISC core, allowing the main CPU to focus on user application processing.

Notable features include:

System integration unit with hardware bus monitor, programmable watchdog timer, and flexible clocking resources.

Sophisticated memory controller supporting DRAM, SDRAM, SRAM, EPROM, and Flash interfaces without glue logic.

Communications capabilities via seven serial channels: up to two SCCs (with Ethernet/IEEE 802.3, HDLC, ATM, UART, and more), two SMCs, a USB channel, I²C, and SPI interfaces.

Support for up to 8KB of dual-port RAM for data buffering and serial DMA management.

Programmable interrupt structure with external and internal sources and prioritization.

Analysis of architecture and system integration for the MPC850DECVR50BU

Designed as an all-in-one communications processor, the MPC850DECVR50BU effectively combines the responsibilities of traditional microcontrollers with robust communications handling. Its system integration unit (SIU) manages clocking, interrupts, watchdog, and power modes, supporting a static operation range from 0 to 80 MHz for wide-ranging applications and enabling aggressive power-saving modes.

The embedded memory controller is highly flexible, facilitating direct interfacing ("glueless") to industry-standard memory types, boot options, and variable block sizes, essential in systems requiring cost-effective scalability. For applications with high-performance serial demands, the CPM’s architecture, which includes dedicated serial DMA channels and multiple protocol supports per serial controller, enables both high data throughput and complex multiplexed operations (such as QMC support for up to 64 logical channels per SCC).

Another key architectural feature is the low-power support, offering several power-saving states—ranging from full operation to deep sleep—which is particularly valuable in remote and battery-powered deployments.

Electrical specifications and thermal performance of the MPC850DECVR50BU

The device operates with a core supply voltage of either 2.2 V (low-frequency operation at ≤25MHz) or 3.3 V for higher frequency use, with general-purpose I/O pins supporting 5V TTL compatibility for broad system interoperability.

Critical electrical parameters include:

Maximum junction temperature as the primary thermal limit; designers must provide adequate heat dissipation strategies, especially given the high-frequency PBGA package.

Absolute maximum ratings are essential to avoid device degradation: all input voltages must remain within 2.5 V of the supply at any time.

AC and DC electrical specs are defined for reliable interfacing, and strict adherence to these limits is necessary to ensure data integrity, especially for memory and I/O bus timings.

Thermal dissipation values depend on the package type and board design; for detailed calculations, the designer must consider the junction-to-ambient resistance and actual power drawn in operation. For precise modeling, detailed formulas relating junction temperature ($T_J$), ambient temperature ($T_A$), power dissipation ($P_D$), and thermal resistance ($\theta_{JA}$) are provided in the technical documentation.

Guidelines for power management and PCB design involving the MPC850DECVR50BU

Robust power and layout practices are vital when integrating the MPC850DECVR50BU. Each VCC and GND pin should be directly connected to low-impedance power and ground planes, with local decoupling using multiple 0.1μF bypass capacitors as close to the package as possible, minimizing PCB trace lengths to limit noise and voltage ripple.

Given the MPC850DECVR50BU’s fast signal edges, board designers must also limit the lengths of address and data bus traces (typically not exceeding six inches) to manage signal integrity. For high-capacitive loads, attention to transient current specifications and careful ground/power plane design is mandatory to protect signal quality and prevent voltage droop under dynamic conditions.

Unused I/O should be tied off to logic levels (GND or VCC) to maximize reliability. Special attention must also be given to PLL supply pin decoupling.

Timing details for bus signals and peripheral interfaces of the MPC850DECVR50BU

At a core/bus frequency of 50 MHz, precise timing is required for all address, data, and control signals to safeguard data validity and ensure reliable bus transactions. The device supports dynamic bus sizing (8-, 16-, or 32-bit) and is configurable for both big-endian and little-endian memory organizations.

Timing diagrams and parameter tables detail:

Setup, hold, and propagation delays for address, data, and various control pins under both synchronous and asynchronous memory cycles.

External memory, PCMCIA interface cycles, and debug/JTAG port timing parameters.

Serial interfaces (Ethernet, UART, SPI, I²C, etc.), with detailed timing for both internal clocks and externally supplied clocks.

Peripheral communications benefit from independent baud rate generators, flexible time-division multiplexing for serial channels, and dedicated DMA paths, simplifying real-time I/O tasks and offloading the host processor.

Mechanical specifications and packaging details for the MPC850DECVR50BU

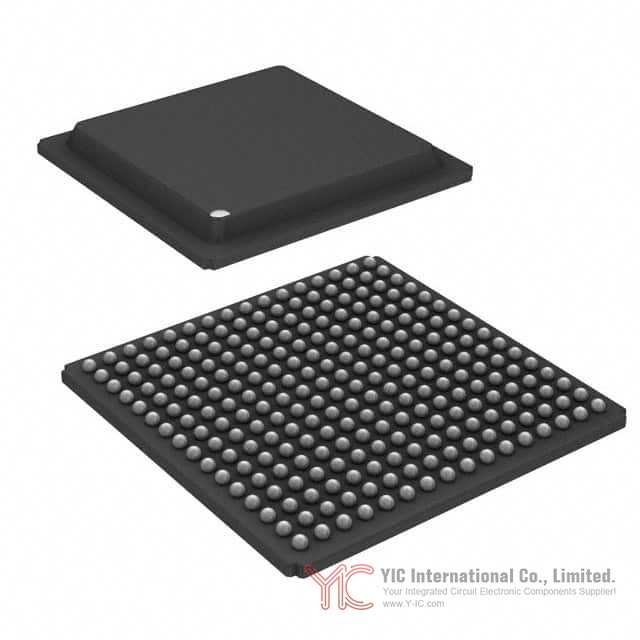

The MPC850DECVR50BU is available in a 256-ball PBGA package, measuring 23x23 mm. Both JEDEC and legacy (Freescale proprietary) pinouts are supported to aid existing PCB designs in migration. Mechanical tolerances conform to ASME Y14.5M standards.

Detailed diagrams of ball layouts, solder ball diameter, and package thickness support precise PCB pad and land-matrix routing. For optimal heat dissipation, designers are encouraged to implement thermal vias and consider multi-layer PCB stack-ups with dedicated inner planes for power and ground.

Alternative or substitute models for the MPC850DECVR50BU

When evaluating alternatives to the MPC850DECVR50BU, engineers should consider similar devices within the NXP/PowerQUICC MPC8xx family, such as the MPC860, which may offer higher performance or additional features like expanded dual-port RAM or enhanced protocol support. Compatibility at the package, interface, and software levels should be carefully verified, as derivative models may have subtle differences in pinout, memory controller features, or supported speeds.

Comparisons with other embedded communications processors from the PowerQUICC series are also valid, though changes in bus timing or peripheral multiplexing may demand firmware adaptation. Engineers should consult manufacturer documentation for a function-by-function assessment when planning replacements.

Conclusion

: Application scenarios and evaluation advice for the MPC850DECVR50BU

The NXP MPC850DECVR50BU is purpose-built for embedded networking, industrial automation, and telecom applications that demand flexible communications interfaces and industrial-grade integration. Its communications-centric architecture—featuring a dedicated RISC CPM, multi-standard serial support, and versatile memory controller—positions it as an optimal solution for remote access servers, protocol bridges, industrial routers, or custom networking appliances.

Selection and deployment success hinge on careful validation of signal timing, thermal management, and PCB layout, as well as a requirement-fit analysis versus potential alternative models. With its robust ecosystem and long-standing presence in embedded communications, the MPC850DECVR50BU remains a technically sound choice for engineers demanding a reliable, flexible, and highly-integrated embedded communications processor.
