NXP USA Inc. MK12DN512VMC5

Product Summary NXP MK12DN512VMC5 Microcontroller

The NXP MK12DN512VMC5 is a member of the Kinetis K12 sub-family and stands out as a highly capable 32-bit ARM Cortex-M4 microcontroller. Packaged in a compact 121-ball 8x8mm MAPBGA, this device targets high-end embedded applications where both performance and power efficiency are crucial. With its 512KB FLASH, sophisticated system peripherals, extensive analog and communication features, and wide operating temperature range (-40°C to +105°C), it caters to demanding markets such as industrial automation, motor control, IoT nodes, and medical instrumentation.

Main Functions and System Architecture of MK12DN512VMC5

At the heart of the MK12DN512VMC5 is a 50 MHz ARM Cortex-M4 core, delivering efficient processing at 1.25 DMIPS/MHz and supporting advanced DSP instructions. This architecture supports deterministic, real-time operation thanks to features such as the 16-channel DMA controller, multiple low-power operation modes, hardware watchdogs, and a multi-purpose clock generator. Security and traceability are also supported via a hardware CRC module and unique 128-bit identification numbers for each chip, making the MK12DN512VMC5 suitable for secure applications and easy device management.

Environmental Requirements and Durability of MK12DN512VMC5

Engineered for robust operation, the MK12DN512VMC5 supports supply voltages from 1.71V to 3.6V and can reliably function across the full -40°C to +105°C ambient temperature range. Stringent JEDEC standards are applied for thermal and moisture handling—including JESD22-A103 (high temperature storage life), J-STD-020 (moisture/reflow sensitivity), and JESD22-A114 for ESD resistance—making integration into industrial and automotive environments straightforward. The device provides detailed specifications and guidelines for voltage/current injection and ESD protection on analog pins, ensuring designers can build reliable and rugged embedded solutions.

Memory Management and Code Execution in MK12DN512VMC5

The MK12DN512VMC5 features 512KB of program FLASH and up to 64KB of RAM. For FlexNVM-equipped devices in the same family, capacities of up to 64KB FlexNVM and 4KB FlexRAM enable EEPROM emulation and additional data logging. Serial programming is facilitated via EzPort. Memory reliability is paramount: flash program/erase times and cycling endurance are clearly specified, with data retention characterized for constant 25°C operation and endurance ratings validated down to -40°C. This comprehensive memory structure supports high-integrity code and data storage for mission-critical tasks.

Clock Configuration, Power States, and Efficiency in MK12DN512VMC5

The microcontroller’s flexible clocking framework comprises a multi-purpose clock generator, a 3-32 MHz crystal oscillator, and a dedicated 32 kHz low-power crystal oscillator. The synchronization and oscillator startup timings are specified for predictable operation, and correct layout techniques are strongly recommended to achieve stated performance. Power optimization is enabled through multiple low-power modes (including VLPR, VLPW, VLPS, and Stop), detailed supply current consumption data, and guidance on mode transitions for energy-sensitive applications. Diagrams illustrating current consumption as a function of frequency support informed system-level power budgeting.

Analog Functions, Timer Modules, and Signal Quality in MK12DN512VMC5

The analog capabilities of the MK12DN512VMC5 include a high-precision 16-bit SAR ADC (with dedicated differential input pins for maximum accuracy), a 12-bit DAC, dual analog comparators equipped with programmable references and integrated DACs, and a dedicated voltage reference module. Extensive characterization is provided for each, including input impedance, conversion accuracy, settling time, and characteristic curves. For motor control and automation scenarios, multiple programmable PWM timers, quadrature decoding, carrier modulation, and periodic interrupt timers are available. Real-time clock integration further simplifies time-stamping and low-power data logging solutions.

Peripheral Connections and Communication Capabilities of MK12DN512VMC5

The on-chip communications suite is comprehensive: featuring two SPI modules (DSPI with programmable timing and master/slave modes), two I2C ports, four UARTs, and an I2S module for audio and industrial interfacing. Each interface’s timing, voltage range, and operational nuances are detailed to support robust design with both classic and advanced peripherals, including compatibility with various voltage domains. The microcontroller includes enhanced support for USB device charger detection—a relevant feature in portable product applications.

Package Details, Pin Assignment, and System Integration for MK12DN512VMC5

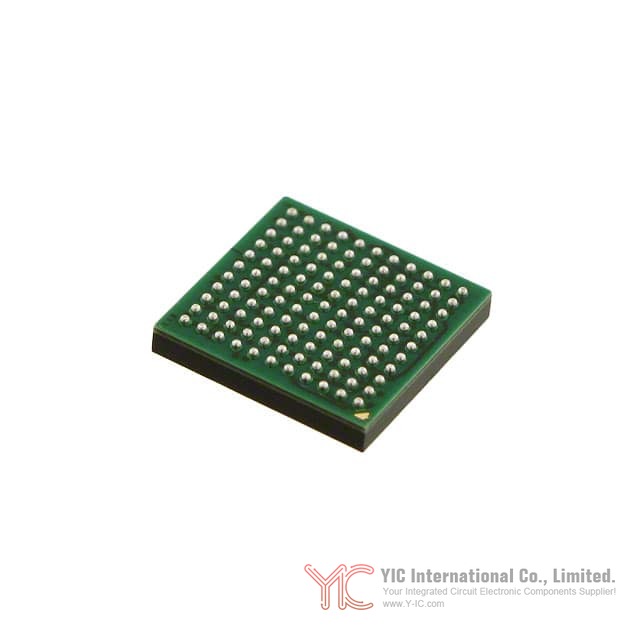

NXP delivers the MK12DN512VMC5 in a 121-MAPBGA package (8x8mm) ideal for high-density, space-constrained layouts. Detailed pin assignment tables allow precise mapping of peripheral and analog signals, and flexible multiplexing is supported by the Port Control Module. Signal breakout notes alert designers to family-specific I/O, trace, RTC, and FTM functionalities. Care must be taken with battery backup and unused pins, and integration guidelines are provided for crystal and oscillator connections to ensure optimal operation and EMI performance.

Comparable and Substitute Models for MK12DN512VMC5

While the MK12DN512VMC5 is unique in its feature set, the Kinetis K12 family includes models with differing FLASH capacities, such as the MK12DX128VMC5 and MK12DX256VMC5. These serve as potential alternatives depending on the application’s specific code and data memory needs. Other ARM Cortex-M4 MCUs in the Kinetis K10 and K20 families can offer similar core performance but may differ in peripheral integration or packaging. Selection should be carefully based on requirements for FLASH/RAM size, pin compatibility, integrated analog features, and environmental tolerance.

Conclusion

The NXP MK12DN512VMC5 microcontroller offers a rich combination of high-performance processing, advanced analog and communication features, robust reliability, and flexible power management—all packaged for modern embedded systems. Its well-documented behaviors and comprehensive peripheral set address both high-integrity industrial control tasks and energy-sensitive IoT applications. For engineers and procurement professionals seeking a versatile platform for innovation, the MK12DN512VMC5 stands as a compelling solution within the ARM Cortex-M4 ecosystem, with a roadmap of sibling devices supporting scalable design needs.
