MK12DN512VLK5R Kinetis K10 ARM Cortex-M4 Microcontroller Summary and Key Information

The NXP MK12DN512VLK5R microcontroller is a member of the Kinetis K10 series, leveraging an ARM Cortex-M4 core optimized for embedded applications that demand efficiency, integration, and low power. Rated as an active device, the MK12DN512VLK5R delivers a 32-bit single-core architecture with a maximum operating speed of 50 MHz. This model integrates up to 512 KB of Flash memory and supports a wide range of peripherals and communication interfaces, making it a strong candidate for industrial automation, motor control, sensor networks, and advanced IoT platforms.

Principal Capabilities and Architectural Design of MK12DN512VLK5R

At the heart of the MK12DN512VLK5R lies the ARM Cortex-M4 core, enhanced with DSP instructions capable of 1.25 DMIPS (Dhrystone MIPS) per MHz. This ensures both computational efficiency and flexibility for signal processing tasks. The microcontroller provides up to 64 KB of SRAM, essential for real-time applications and buffering tasks. DSP-enhanced instructions, real-time interrupt controllers, and flexible clock/oscillator options build a foundation for responsive and scalable embedded designs.

MK12DN512VLK5R Electrical, Physical, and Environmental Details

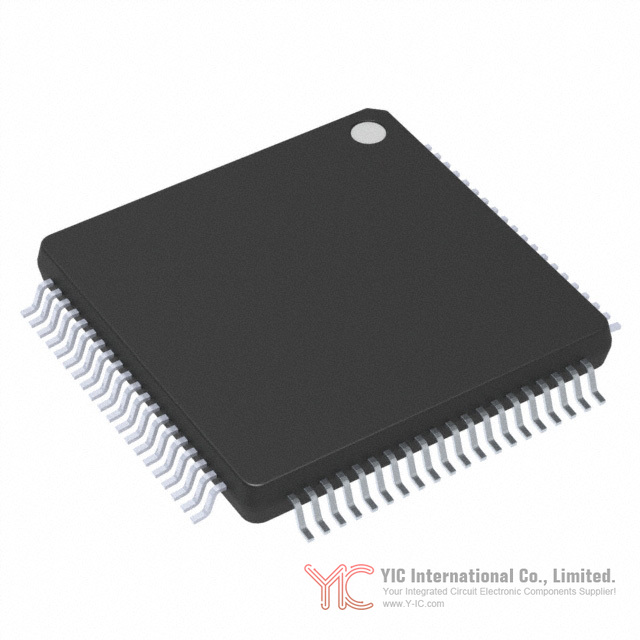

Designed for robust operation, the MK12DN512VLK5R features a supply voltage range of 1.71V to 3.6V, catering to battery-powered and regulated systems alike. The device operates reliably from −40°C to 105°C ambient temperature, suitable for industrial environments. The MK12DN512VLK5R comes in an 80-pin LQFP (12 mm x 12 mm x 1.4 mm, 0.5 mm pitch) package, which supports high-density board layouts and offers surface mount compatibility. Its RoHS3 compliance and MSL3 moisture sensitivity rating (168 hours) further align with global manufacturing and environmental standards.

Integrated Peripherals and Communication Ports of MK12DN512VLK5R

A highlight of the MK12DN512VLK5R is its peripheral ensemble. The microcontroller includes four UART modules, two SPI and two I2C modules, as well as IrDA and I2S interfaces, allowing seamless integration with external sensors, actuators, and communication networks. DMA controllers (16 channels), PWM outputs, watchdog timers, programmable delay blocks, and general-purpose motor control timers enable precise hardware control and efficient data transfers. Enhanced analog modules include a 24-channel 16-bit SAR ADC, a 12-bit DAC, and dual analog comparators—well-suited for mixed-signal designs requiring robust sensor interfacing and signal conditioning.

MK12DN512VLK5R Power Efficiency and Low-Energy Operation Modes

The MK12DN512VLK5R is optimized for cost-sensitive applications where energy consumption is paramount. Operating modes allow run power consumption as low as 189 μA/MHz, static power at 3.1 μA (with full state retention and rapid 6 μs wakeup), and in its lowest static mode, down to 359 nA. These modes, combined with flexible clock gating and wakeup strategies, make the device ideal for wireless sensors, portable devices, and remote IoT nodes requiring extended battery life without sacrificing responsiveness.

MK12DN512VLK5R Memory Structure and FlexMemory Configurations

In addition to its main program flash (512 KB), the MK12DN512VLK5R supports up to 64 KB of RAM. Select models in the Kinetis K12D family offer FlexMemory subsystems (64 KB FlexNVM, 4 KB FlexRAM) for added nonvolatile storage, allowing for EEPROM emulation and dynamic memory allocation. These memory options are particularly valuable in designs requiring reliable data retention across power cycles, firmware updates, and security management.

MK12DN512VLK5R Security Functions, Data Protection, and Identification Mechanisms

To bolster system integrity, the MK12DN512VLK5R includes hardware CRC engines for run-time data verification, ensuring robust protection against memory and communication errors. Each chip possesses a unique 128-bit identification number, streamlining traceability and security provisioning in mass production. Additional security features encompass external and software watchdogs, programmable delay blocks, and tamper-resistant program flash writing.

MK12DN512VLK5R Package Size, Installation, and Handling Guidelines

The 80-pin LQFP package (12 mm x 12 mm) enables high I/O density while maintaining manufacturability in automated assembly environments. The package features a 0.5 mm lead pitch, suitable for fine-pitch SMT processes. Moisture sensitivity (MSL3) and RoHS3 compliance ensure the device meets modern quality and environmental requirements. Engineers must follow recommended handling, reflow, and thermal management practices for reliable deployment, especially in harsh environments.

Alternative or Substitute Solutions for MK12DN512VLK5R

For projects requiring alternate configurations, NXP’s Kinetis K12D family offers several comparable models. Alternatives include:

MK12DX128VLK5: 128 KB Flash, 32 KB SRAM

MK12DX256VLK5: 256 KB Flash, 32 KB SRAM

MK12DX512VLK5: 512 KB Flash, 64 KB SRAM

These models share the core ARM Cortex-M4 architecture and peripheral set, with variations in memory sizes and package options. Selection should be based on project requirements for code storage, SRAM needs, and package compatibility. Migration between these devices is typically straightforward due to pinout and software commonality.

Conclusion

: Selecting MK12DN512VLK5R for Modern Embedded Applications

The NXP MK12DN512VLK5R stands out for its integration, robust performance, and low-power optimization, making it an excellent fit for modern embedded systems. Its rich set of peripherals, flexible memory organization, advanced power management, and security features equip product selection engineers and procurement specialists with a versatile solution for a broad spectrum of applications. Careful consideration of package handling, environmental compliance, and potential equivalents within the Kinetis K12D family further enables effective selection and deployment. For procurement and engineering teams, the MK12DN512VLK5R delivers both technical depth and scalability—a reliable cornerstone for high-performance, energy-sensitive designs in a connected world.
