NXP USA Inc. MC68020RC16E

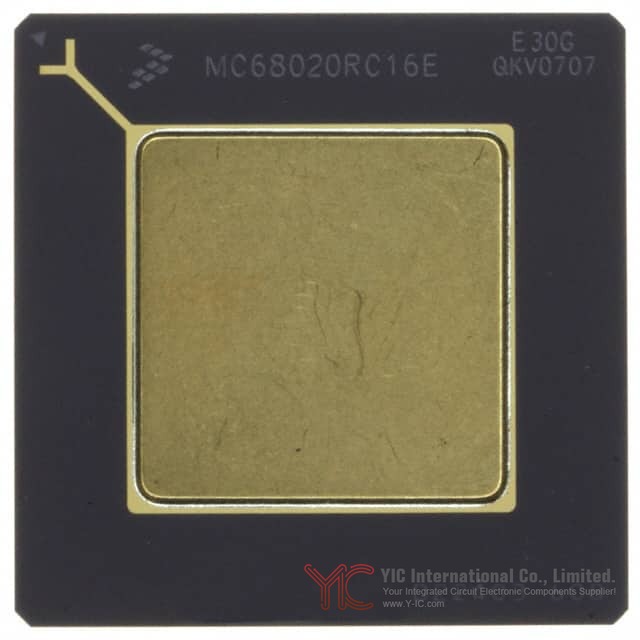

Product Summary NXP MC68020RC16E 32-Bit Microprocessor

The MC68020RC16E is a high-performance, second-generation microprocessor in the M68000 family, manufactured by NXP USA Inc. This device is based on a 32-bit architecture and is available in a 114-pin PGA (Pin Grid Array) package, with a typical speed of 16MHz and an operational temperature range of 0°C to 70°C. As an enhanced microprocessor, the MC68020RC16E is suitable for high-demand embedded and general-purpose computing applications, offering expanded processing capabilities and support for advanced memory and bus operations. This model has reached its end-of-life status (obsolete) but remains crucial for legacy system maintenance and specialized applications.

Main Attributes and Architecture of the MC68020RC16E

At the heart of the MC68020RC16E lies a single 32-bit core, designed to execute complex instruction sets efficiently. The architecture is fully compatible with the broader M680x0 instruction set, allowing direct software portability across previous and subsequent families. Its pipelined architecture enables multiple instruction phases to be processed concurrently, enhancing throughput and reducing instruction latency compared to earlier M68000 series devices.

The MC68020RC16E supports a robust programming model, with extensive data types and versatile addressing modes. It introduces advanced features such as on-chip cache, dynamic bus sizing, and comprehensive coprocessor interfacing, making it adaptable to tasks involving real-time control, digital signal processing, and multi-user systems.

MC68020RC16E Operating Modes and Processor Privilege Structure

The MC68020RC16E manages multiple processing states and leverages a dual privilege-level model—supervisor and user—to enforce system protection and control. Privilege levels determine access rights to certain operations and system resources, effectively segmenting application from kernel-level execution. The processor supports efficient transitions between privilege states, facilitating secure exception processing and robust multitasking environments.

Memory management operations are supported through advanced virtual memory and virtual machine concepts, enabling the deployment of protected mode operating systems and complex memory hierarchies. The processor’s status information and control mechanisms help system architects design secure and stable embedded platforms.

MC68020RC16E Signal Specification and System Integration

System integration with the MC68020RC16E hinges on its rich set of signals and interface compatibility. The device provides 32 address lines (A31–A0) and 32 data lines (D31–D0), ensuring seamless connectivity with wide memory and peripheral landscapes. Function code outputs (FC2–FC0), size indicators (SIZ1, SIZ0), and comprehensive control signals support dynamic bus operations, asynchronous communications, and sophisticated arbitration schemes.

Interrupt control, bus exception, and miscellaneous signals such as emulator support and clock inputs ensure the device can be integrated into diverse system environments. Thorough signal documentation allows engineers to design robust, high-speed circuit interfaces with the MC68020RC16E at the core.

Integrated Cache and Memory Organization in the MC68020RC16E

A key architectural enhancement within the MC68020RC16E is its on-chip instruction cache. This cache system accelerates program execution by reducing the wait states associated with external memory accesses. Engineers can manage the cache through dedicated control and address registers, allowing software-selective enablement, flush, or invalidation strategies tailored to specific workload requirements.

This memory hierarchy supports higher system throughput, lower average memory latencies, and more predictable timing for real-time applications. Proper cache configuration is essential to unlock the full performance potential of the MC68020RC16E.

Bus Transactions and Data Communication Methods for MC68020RC16E

Data transfer operations on the MC68020RC16E are engineered for flexibility and efficiency. The bus supports dynamic bus sizing, allowing for seamless communication with peripherals and memory modules of varying widths. The processor can handle misaligned operands, further simplifying interface logic in system designs.

The device supports multiple bus cycles including read, write, and read-modify-write operations. Advanced control over data strobes, buffer enables, and bus arbitration ensures compatibility with both legacy and modern components, enabling system designers to realize complex multiprocessor and high-availability architectures.

Exception Processing and Coprocessor Connectivity in MC68020RC16E Platforms

The MC68020RC16E incorporates a sophisticated exception processing mechanism, including capabilities for handling bus errors, address errors, illegal instructions, privilege violations, and more. These exceptions are managed through vector tables and stack frames that facilitate rapid fault response, recovery, and debugging.

Coprocessor interface support is another highlight. The MC68020RC16E can be paired with external coprocessors (such as floating-point units), utilizing a well-defined communication protocol for concurrency and instruction offloading. This flexibility is invaluable in applications requiring heavy mathematical computations or hardware-accelerated control logic.

Timing Specifications, Performance Metrics, and Electrical Properties of MC68020RC16E

The processor’s clocking and execution timing are optimized through overlapping execution, efficient instruction cache, and parallel operand fetch. Timing tables for instruction execution allow engineers to estimate performance in various use cases. Considerations such as operand alignment and bus concurrency further influence real-world system throughput.

The MC68020RC16E operates at 16MHz and in a temperature range from 0°C to 70°C. The through-hole 114-PGA form factor (measuring 34.55 × 34.55 mm) facilitates integration into both breadboard and production platforms, simplifying prototyping and long-term support scenarios.

MC68020RC16E Environmental Standards and Reliability Aspects

Engineers and procurement specialists increasingly scrutinize environmental and compliance factors. The MC68020RC16E meets ROHS3 standards and is classified as moisture level 1—unlimited floor life at ≤30 °C/85% RH. This ensures suitability in environmentally regulated markets and reliable storage or deployment over extended project lifecycles.

In terms of export and regulatory compliance, the device is unaffected by REACH reporting requirements, and its ECCN and HTS classifications support smooth international logistics.

Alternative or Replacement Devices for MC68020RC16E

As the MC68020RC16E is classified as obsolete, engineers may evaluate compatible alternatives. Within the M680x0 series, the MC68EC020 offers similar 32-bit core features, with certain differences tailored for embedded applications. When seeking fully compatible drop-in replacements, it is critical to review memory mapping, package compatibility, and differences in coprocessor or cache support. Other processor architectures may be considered, but will require significant modification to hardware and software, and are suitable only in the context of system redesign.

For legacy equipment maintenance, sourcing new-old-stock MC68020RC16E or certified remanufactured units remains viable. Ensuring secondary supply chains for rare components is essential in aerospace, industrial automation, and medical systems with qualification dependencies.

Conclusion

The NXP MC68020RC16E microprocessor stands as a historically significant and technically robust solution for 32-bit embedded and general-purpose computing. Its advanced architecture, cache integration, and extensible signal protocol equip engineers with flexible design options for high-reliability systems. While now obsolete, its continued relevance in legacy ecosystems underscores the importance of detailed technical understanding and strategic sourcing. With careful consideration of system requirements and available alternatives, product selection specialists and engineers can make informed decisions to ensure long-term system viability and performance.
