Product summary Vishay Dale TNPW04024K99BEED thin film chip resistor

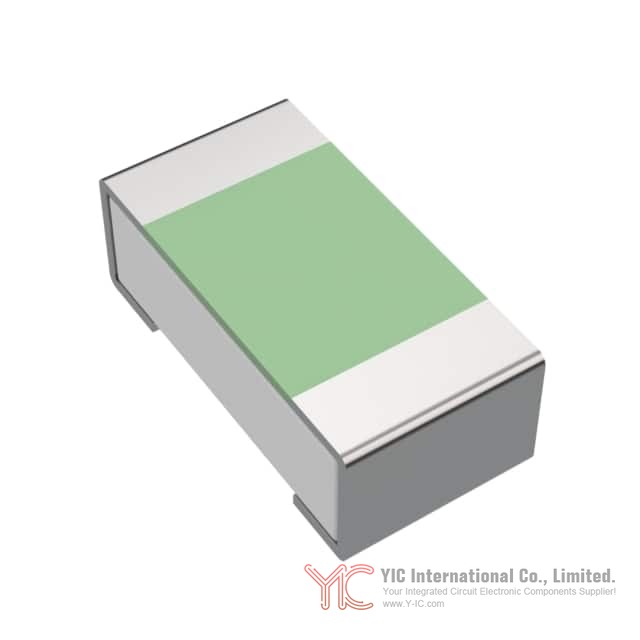

The Vishay Dale TNPW04024K99BEED is a high-precision thin film flat chip resistor, specifically designed for demanding applications where reliability, stability, and compactness are critical. Offering a resistance value of 4.99 kΩ with a tight tolerance of ±0.1% and a maximum rated power dissipation of 0.13 W, the TNPW04024K99BEED comes in the industry-standard 0402 (1005 metric) surface-mount package. Key attributes include AEC-Q200 automotive qualification, anti-sulfur capability, and superior moisture resistance, making this resistor a robust solution for automotive, industrial, test and measurement, and medical electronics.

Major attributes and advantages of the TNPW04024K99BEED

The TNPW04024K99BEED combines precision and reliability with features such as:

Automotive-grade AEC-Q200 qualification, ensuring resilience to harsh automotive environments.

Moisture resistance with a resistance stability of ΔR/R < 0.1% under prolonged high humidity and temperature exposure (85°C, 85% RH, 1000 hours).

Anti-sulfur design, verified as per ASTM B 809 and ANSI/EIA-977 standards, critical for pollution-heavy or sulfur-laden atmospheres.

Thin film technology that ensures low temperature coefficient of resistance (TCR), outstanding temperature cycling robustness, and high overall stability.

Allowable film temperature up to 175°C, supporting deployment in high-temperature sections of automotive or industrial electronic assemblies.

RoHS compliance, halogen-free, and green/material regulations alignment, supporting global sustainability initiatives.

Comprehensive structure and production process of TNPW04024K99BEED

Every TNPW04024K99BEED resistor is manufactured under tightly controlled processes for maximum reproducibility. The resistor features a homogeneous metal alloy thin film precisely deposited on an Al₂O₃ ceramic substrate. Inner contacts are carefully configured, and the resistive layer is laser-trimmed for target resistance without substrate damage. Subsequent conditioning stabilizes trimmed values, followed by application of a robust protective coating to guard against mechanical, electrical, and climatic stresses.

Terminations undergo pure matte tin on nickel plating, facilitating both Pb-free and conventional soldering processes and guarding against tin whisker formation. Each resistor is 100% optically inspected and electrically tested, screening out devices prone to early-life failure. Packaging is in accordance with international standards for automated surface-mount assembly systems.

Electrical characteristics and dependability of TNPW04024K99BEED

The TNPW04024K99BEED is engineered for minimal resistance drift over operational life, provided film temperature limits are observed. It supports a rated dissipation of 0.13 W at 70°C in the 0402 size, with power derating at higher ambient or film temperatures. The design exhibits exceptional performance under both single and repetitive pulse loading, thanks to its stable thin film construction.

Non-linearity, current noise, and HF characteristics are optimized, supporting integration into sensitive measurement, sensor, or analog circuits where signal integrity is paramount. These devices comply with rigorous international standards (EN 60115-1/-8, IEC 60068-2-xx) and are subjected to extended testing conditions, covering humidity, temperature cycling, and overload endurance per EN 140401-801.

Environmental standards compliance and durability of TNPW04024K99BEED

Vishay Dale ensures TNPW04024K99BEED resistors align with major regulatory frameworks such as RoHS, REACH (including SVHC compliance), ELV, and WEEE. Extensive testing proves immunity to moisture, corrosion, and sulfurization—issues increasingly encountered in miniaturized, sealed, or automotive designs.

Storage and process compatibility are assured: these resistors withstand common industrial cleaning agents, retain solderability for up to two years post-manufacture, and permit extended storage up to 20 years under recommended conditions. Their construction is validated for automated soldering—wave, reflow, and vapor phase—and their terminations support reliability-critical environments where tin whisker risk elimination is vital.

Appropriate applications for TNPW04024K99BEED

The TNPW04024K99BEED is an excellent choice for engineers specifying resistors in:

Automotive modules, control units, sensors, and powertrain electronics requiring robust component integrity and environmental compliance.

Industrial automation and instrumentation demanding consistency across temperature cycles and long-term operational stability.

Test and measurement systems, where high precision, low noise, and minimal drift are essential to accurate signal processing.

Medical devices, where reliability and compliance with hazardous substance directives are critical for regulatory and operational assurance.

Alternative or substitute models for TNPW04024K99BEED

While the TNPW04024K99BEED offers a unique set of performance and qualification credentials, Vishay provides related alternatives within its portfolio:

TNPU e3 ultra precision thin film resistors: For applications needing even finer tolerance and tighter TCR, the TNPU e3 series builds upon the reliability of the TNPW family with higher precision.

TNPS ESCC thin film resistors: When space and aerospace qualification are required, the TNPS ESCC series is suitable, offering approval under the European Space Components Coordination.

TNPV e3 high voltage thin film resistors: For circuits with elevated voltage requirements demanding the same level of stability, the TNPV e3 family is engineered for such environments.

TNPW with SnPb terminations: For legacy designs where lead-containing terminations are mandatory, this variant supports process compatibility while retaining much of the TNPW04024K99BEED’s core construction.

Conclusion

: Value proposition and best-use scenarios of the TNPW04024K99BEED

For engineers and procurement professionals, the TNPW04024K99BEED from Vishay Dale stands out as a go-to choice for applications where compact size, precision, anti-sulfur protection, and AEC-Q200 certification converge as top requirements. Its robust design, process compatibility, and environmental qualifications simplify inventory and compliance management across multiple global markets and end-products.

Integrating the TNPW04024K99BEED enables circuit designers to meet the most stringent requirements for accuracy and long-term stability, especially in automotive, industrial, and mission-critical system designs. When optimal resistor performance is non-negotiable, this component merits serious consideration during the component selection phase.
