Vishay Dale TNPW02015K00BEED

Summary of Vishay Dale TNPW02015K00BEED Thin Film Surface Mount Resistor

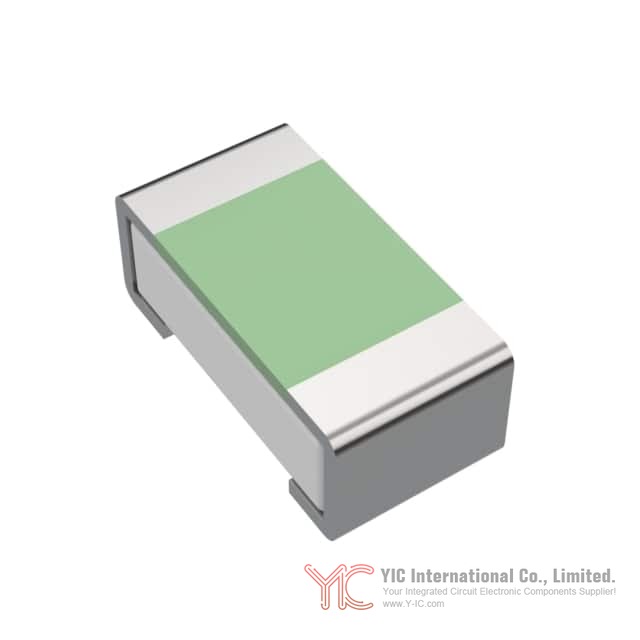

Vishay Dale’s TNPW02015K00BEED thin film chip resistor sets a benchmark in high-precision, high-reliability passive components, specifically engineered for demanding environments. This resistor features a resistance value of 5 kΩ with an exceptional tolerance of ±0.1% in the compact 0201 (0603 metric) SMD package. Rated for a power dissipation of 0.075W, it incorporates advanced thin film technology to ensure minimal drift and outstanding stability, making it a foundational component for modern electronics.

Main Characteristics and Primary Benefits of the TNPW02015K00BEED

The TNPW02015K00BEED model is part of Vishay’s automotive-grade TNPW e3 series, offering superior reliability validated by AEC-Q200 qualification. This model is designed for robustness, with a permissible film temperature of up to 175°C, ensuring dependable operation even under aggressive thermal cycling. Its resistance to moisture—demonstrated by a maximum change of less than 0.1% after 1000 hours at 85°C and 85% relative humidity—delivers assurance against long-term environmental stress. Anti-sulfur characteristics, verified according to ASTM B 809 and ANSI/EIA-977, give TNPW02015K00BEED a clear advantage in industrial or polluted atmospheres prone to sulfur-related failure mechanisms.

Other notable advantages include:

Excellent overall stability across diverse operating conditions

Superior moisture and sulfur resistance

RoHS compliance and halogen-free construction

Provision for single lot date code (upon request)

Outstanding temperature coefficient performance

Common Uses for the TNPW02015K00BEED

The precision and resilience of the TNPW02015K00BEED make it a preferred choice for high-reliability sectors, including automotive, industrial, test and measurement, and medical equipment. Its stable performance with minimal drift under extended power and environmental stress makes it suitable for applications such as:

Sensor interface circuits in automotive ECUs

Precision measurement amplifiers

Signal conditioning circuits in medical devices

Test instrumentation where accuracy of resistance is critical

Manufacturing Process, Material Specifications, and Regulatory Standards for TNPW02015K00BEED

The manufacture of TNPW02015K00BEED is tightly controlled, using a homogeneous film of special metal alloy deposited on an alumina ceramic substrate. Advanced laser trimming and subsequent conditioning lock in precise resistance values, while high-reliability inner contacts and a protective coating guarantee electrical, mechanical, and climatic protection. Final terminations feature pure matte tin over nickel plating, enabling compatibility with both leaded and lead-free solder processes, and proven immunity against tin whisker growth. The resistor is RoHS- and WEEE-compliant, free from regulated hazardous and SVHC substances as per IEC 62474, GADSL, and REACH regulations. Vishay’s supply chain further ensures conflict minerals elimination for ethical sourcing.

SMD Assembly Methods and System Compatibility with TNPW02015K00BEED

TNPW02015K00BEED is tailored for efficient integration into automated SMD assembly systems, supporting all mainstream soldering technologies: wave, reflow, and vapour phase, conforming to IEC 61760-1. Its encapsulation is resistant to common industrial cleaning solvents, including alcohols, esters, and aqueous solutions, and the matte tin plated terminations maintain solderability for up to two years post-production. Notably, the devices offer a permitted storage lifespan of up to twenty years, beneficial for long-term inventory management. For critical reliability scenarios, suitability with conformal coatings or potting compounds is encouraged to be validated at the system level.

Operational Performance and Durability of TNPW02015K00BEED

Engineers relying on TNPW02015K00BEED benefit from its comprehensive derating profiles for both general and advanced operation, including single and continuous pulse loads. The device withstands repeated voltage pulses, including those defined in EN 60115-1 standards, guaranteeing resistance stability within ±0.5% R + 0.05 Ω. High-frequency performance is maintained—not only from the intrinsic resistor characteristics but also as a function of termination and PCB layout—important for RF signal chain assembly. The component further exhibits low noise voltage ratios and exceptional linearity in operational circuits, supporting both DC precision and high-frequency signal processing.

Testing Standards and Environmental Endurance of TNPW02015K00BEED

To ensure robustness in real-world conditions, the TNPW02015K00BEED series undergoes rigorous qualification and lot-based optoelectronic inspection, aligned with EN 60115-1, EN 60115-8, EN 140401-801, EIA/ECA-703, and JIS-C-5201-1 standards. Testing encompasses both standard atmospheric conditions and extremes (climatic category LCT/UCT/56), with typical board-mounted configurations. While some industry-specific tests are tailored due to the 0201 size constraints, these components are further scrutinized for early-life failure risks in accordance with Vishay’s internal protocol.

Physical Specifications and Soldering Guidelines for TNPW02015K00BEED

The TNPW02015K00BEED conforms to the 0201 (0603 metric) SMD footprint, allowing for dense PCB layouts demanded by contemporary electronic design. For optimal mechanical and electrical connection, Vishay provides detailed guidelines for recommended solder pad dimensions and soldering profiles, ensuring assembly quality and long-term reliability. Solder joints created under these recommendations will typically mirror the resistor’s designed longevity and electrical integrity.

Alternative and Substitute Options for the TNPW02015K00BEED

Within Vishay’s product landscape, engineers can consider several alternative series for similar applications:

TNPW series with SnPb termination plating, suitable where leaded soldering processes are mandated (see datasheet TNPW).

TNPU e3 ultra precision thin film chip resistors, providing even tighter precision and stability requirements.

TNPS ESCC series, approved for top-tier aerospace, satellite, and military electronic systems.

TNPV e3 high voltage thin film resistors, recommended for circuits with elevated operating voltages or specialized high-voltage stability needs.

When evaluating alternatives, selection should align with specific reliability, environmental, or electrical performance criteria dictated by the end application.

Conclusion

: Making informed decisions with TNPW02015K00BEED

Vishay Dale’s TNPW02015K00BEED stands out for its combination of miniaturization, precision, robustness, and broad standard compliance—delivering value in automotive, industrial, medical, and measurement applications where stability and reliability are paramount. By understanding its feature set, manufacturing process, assembly compatibility, and validated performance envelope, engineers and procurement professionals can confidently select TNPW02015K00BEED or its equivalents to meet stringent technical and regulatory requirements. This approach aligns component selection with long-term system reliability and engineering best practices in advanced electronics design.
